Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

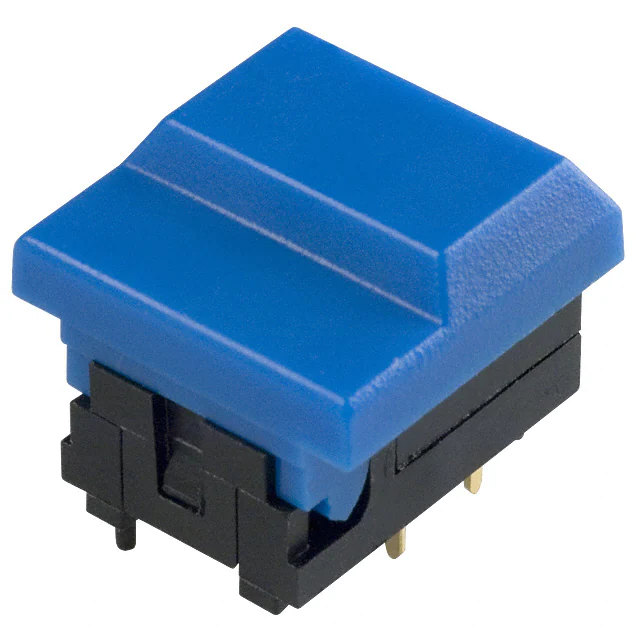

5511MBLUXSWITCH PUSH SPDT 0.03A 12V |
3,524 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|

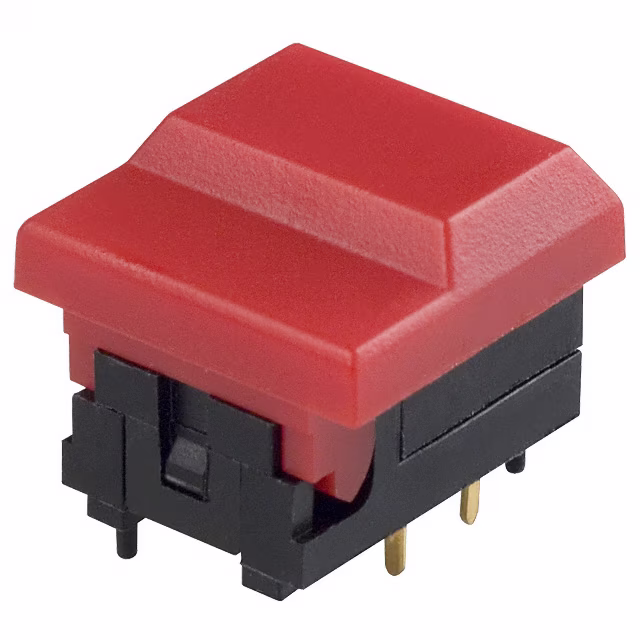

5511MREDXSWITCH PUSH SPDT 0.03A 12V |
4,287 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
5501M4XSWITCH PUSH SPDT 0.3A 12V |
1,863 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5501M6XSWITCH PUSHBUTTON SPDT 30MA 12V |
3,455 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 30mA (DC) | - | 12 V | Square, Button | No Marking | Orange | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
700SP7B10M3QEHSwitches |
2,686 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
LP2S3WHTBLU-NSWITCH PUSH SPST-NO 1MA 20V |
2,065 |
|
Datasheet | LP2 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
800SP9B9VS2REHSWITCH PUSH SPST-NO 0.4VA 20V |
3,145 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
800SP9B6M6CESWITCH PB SPST-NO 3A 120V |
2,921 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
LP4EE1PBCTBSWITCH PUSHBUTTON DPDT 0.1A 30V |
3,100 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
800SP8B5M1QEHSWITCH PUSHBUTTON SPDT 3A 120V |
3,610 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
