Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP4OA1PBCBNSwitches |
3,597 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | - | Blue | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PA4R12C1000-114SWITCH PB DPST 16A 125V |
2,757 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Keyswitch, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | - | Red | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
PB1973EBLKBLKEF0SWITCH PUSHBUTTON DPST 15A 250V |
4,580 |
|
Datasheet | PB1973 | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | On-Off | 15A (AC), 10A (DC) | 250 V | 125 V | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -10°C ~ 55°C |
|
|
LP4EE1PBARRSWITCH PUSH DPDT 0.1A 30V |
4,043 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Red | LED, Red | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP4EE1PBAGGSWITCH PUSH DPDT 0.1A 30V |
3,947 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Green | LED, Green | 2.3 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP4EE1PBBTGSWITCH PUSHBUTTON DPDT 0.1A 30V |
2,607 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Green | 2.3 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP4EE1PGBTRSWITCH PB DPDT 0.1A 30V |
4,196 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | - | Clear | LED, Red | 1.9 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP4EE1PWBTRSWITCH PB DPDT 0.1A 30V |
4,157 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | - | Clear | LED, Red | 1.9 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP4EE1PBBTRSWITCH PB DPDT 0.1A 30V |
3,200 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | - | Clear | LED, Red | 1.9 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|

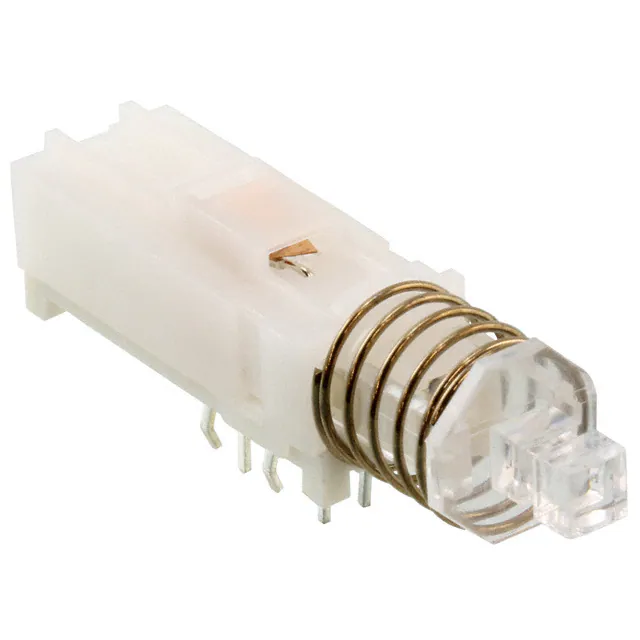

WBL2UEERBQSWITCH PUSH DPDT 300MA 30V |
2,529 |
|
Datasheet | WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | LED, Blue/Red | 1.7, 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
