Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP1OA1AWSWITCH PUSH SPST-NO 0.1A 30V |
2,043 |
|
Datasheet | LP1 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, White | 3.7 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -40°C ~ 85°C |
|

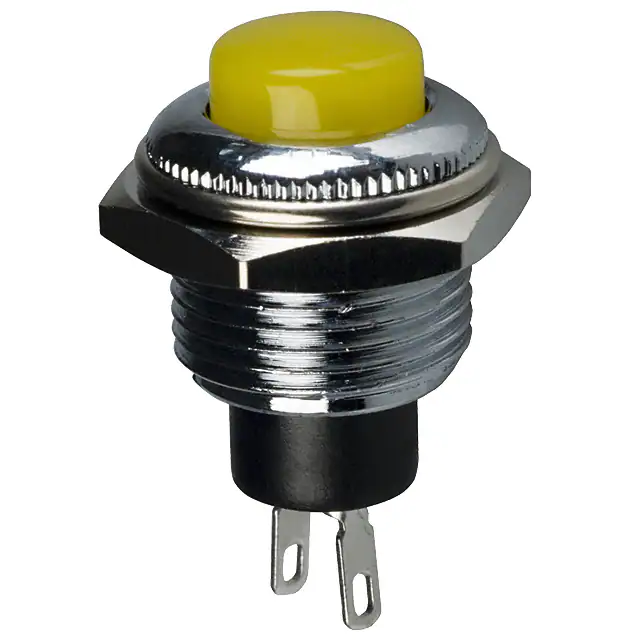

RP3502MBYELSWITCH PUSH SPST-NC 3A 120V |
1,630 |
|
Datasheet | RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
|
LP4OA1PBATNSWITCH PUSH DPDT 0.1A 30V |
1,020 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Square, Button | No Marking | Clear | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
700SP7B10M1QEHC1BLKSWITCH PUSHBUTTON SPDT 3A 120V |
3,211 |
|
Datasheet | 700 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
800USP8P1A1M7RESWITCH PUSH SPDT 0.4VA 20V |
3,998 |
|
Datasheet | 800U | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
800SP9M1QEOP1REDSWITCH PB SPST-NO 3A 120V |
1,354 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Square, Button | - | Red | - | - | Solder Lug | - | - | Rectangular - 15.70mm x 12.70mm | -30°C ~ 85°C |
|
|
800SP9B9M2QEHSWITCH PUSH SPST-NO 3A 120V |
1,778 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
5501M32SWITCH PUSHBUTTON SPDT 30MA 12V |
3,830 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 30mA (DC) | - | 12 V | Square, Button | No Marking | Yellow | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
800SP9B5M7QESWITCH PB SPST-NO 3A 120V |
4,817 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
800AWSP9M61RFLUSHSWITCH PB SPST-NO 0.4VA 20V |
3,595 |
|
Datasheet | 800A | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
