Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-363XPPWR XFMR LAMINATED 4.5VA TH |
4,849 |
|
Datasheet | Dual Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 40mA, Series 20mA | Dual | Dual | No | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.407 lb (184.62 g) |
|
FP20-125PWR XFMR LAMINATED 2.5VA TH |
4,893 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 250mA, Series 125mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|
FP120-20PWR XFMR LAMINATED 2.5VA TH |
4,917 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 40mA, Series 20mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|
|
FP230-10PWR XFMR LAMINATED 2.5VA TH |
4,910 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 120V, Series 230V | Parallel 20mA, Series 10mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|
|
FP40-60PWR XFMR LAMINATED 2.5VA TH |
4,797 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 120mA, Series 60mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|
|
FP88-28PWR XFMR LAMINATED 2.5VA TH |
4,258 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 44V, Series 88V | Parallel 56mA, Series 28mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|

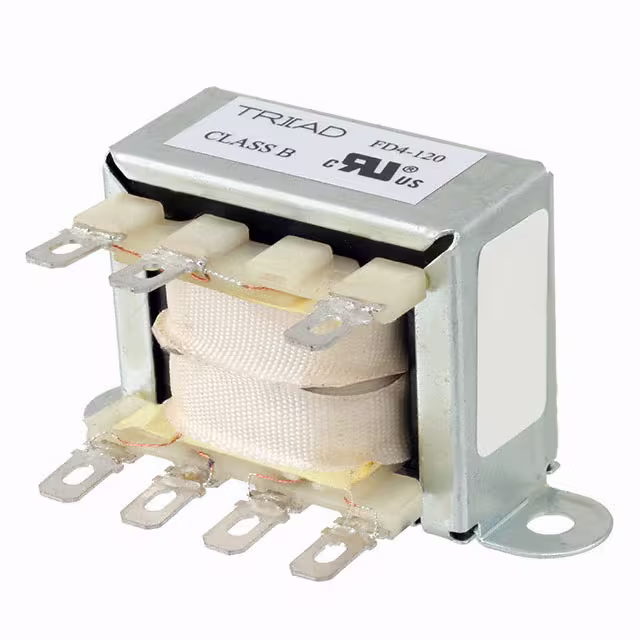

FD4-120PWR XFMR LAMINATED 6VA CHAS MT |
3,489 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 120V | 50mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|

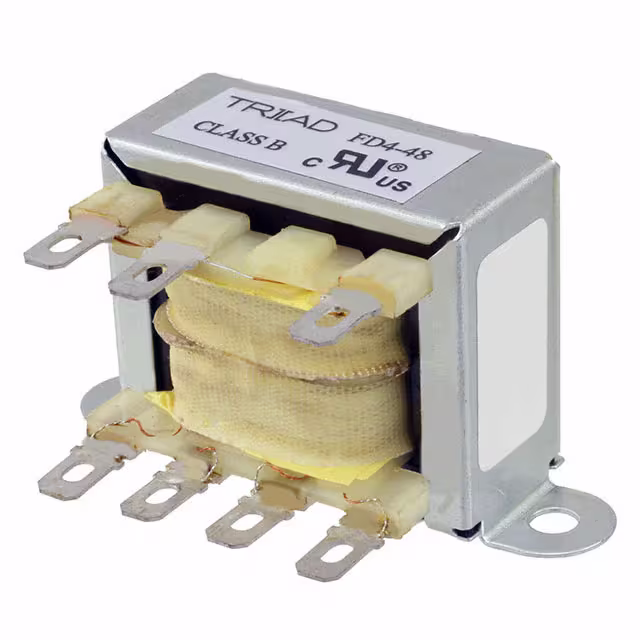

FD4-48PWR XFMR LAMINATED 6VA CHAS MT |
1,488 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 48V | 125mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|
F-90XPWR XFMR LAMINATED VARIES CHAS |
3,050 |
|
Datasheet | Universal | Box | Active | Laminated Core | 115V | 10V, 20V, 40V | 100mA | Single, Multiple Taps | Single, Multiple Taps | No | Varies | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms | 0.7 lb (317.51 g) |
|
F-151XPPWR XFMR LAMINATED 7.5VA TH |
3,836 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 4V, Series 8V | Parallel 1.88A, Series 940mA | Single | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
