Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F5-120PWR XFMR LAMINATED 12VA CHAS MT |
3,907 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 120V | 100mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|

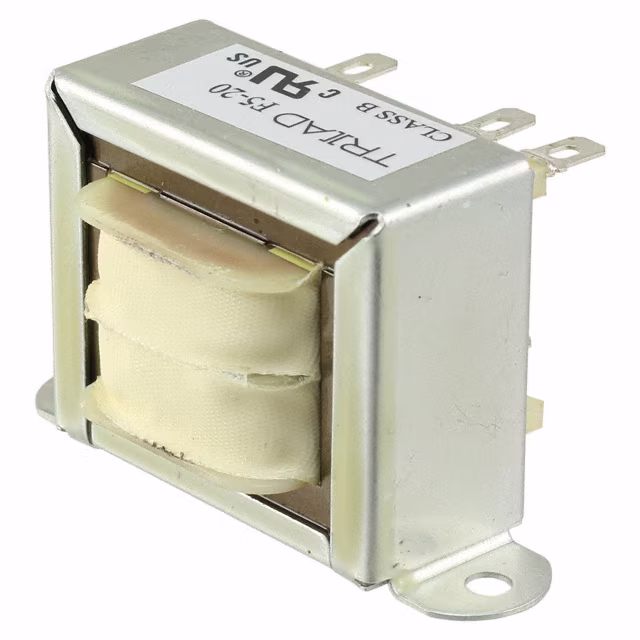

F5-20PWR XFMR LAMINATED 12VA CHAS MT |
4,338 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 20V | 600mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|

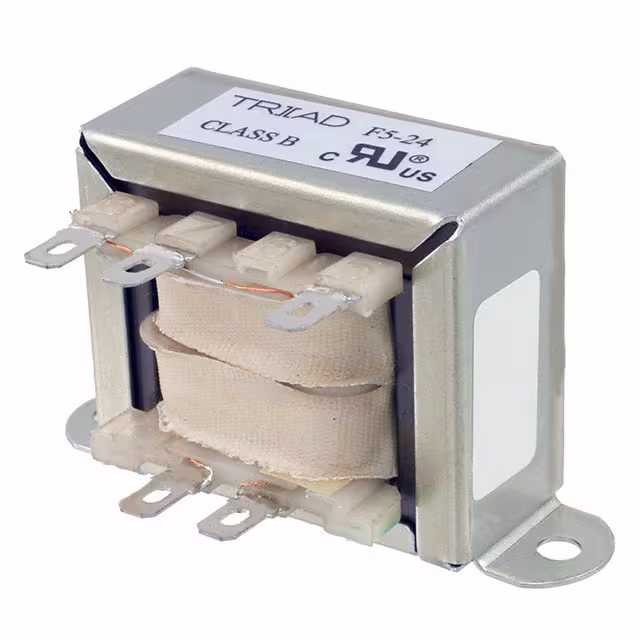

F5-24PWR XFMR LAMINATED 12VA CHAS MT |
4,970 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 24V | 500mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
|
F5-28PWR XFMR LAMINATED 12VA CHAS MT |
2,837 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 28V | 420mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
F5-36PWR XFMR LAMINATED 12VA CHAS MT |
2,273 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 36V | 350mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
|
F5-48PWR XFMR LAMINATED 12VA CHAS MT |
1,858 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 48V | 250mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
|
F5-56PWR XFMR LAMINATED 12VA CHAS MT |
1,470 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 56V | 220mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
F-166XPPWR XFMR LAMINATED 7.5VA TH |
1,012 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 9V, Series 24V | Parallel 500mA, Series 125mA | Single | Dual | Yes | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
|
|
F-169XPPWR XFMR LAMINATED 7.5VA TH |
4,660 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 15V, Series 32V | Parallel 287mA, Series 100mA | Single | Dual | Yes | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
|
|
F-349XPPWR XFMR LAMINATED 4.5VA TH |
2,117 |
|
Datasheet | Dual Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 560mA, Series 280mA | Dual | Dual | No | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.407 lb (184.62 g) |
