Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

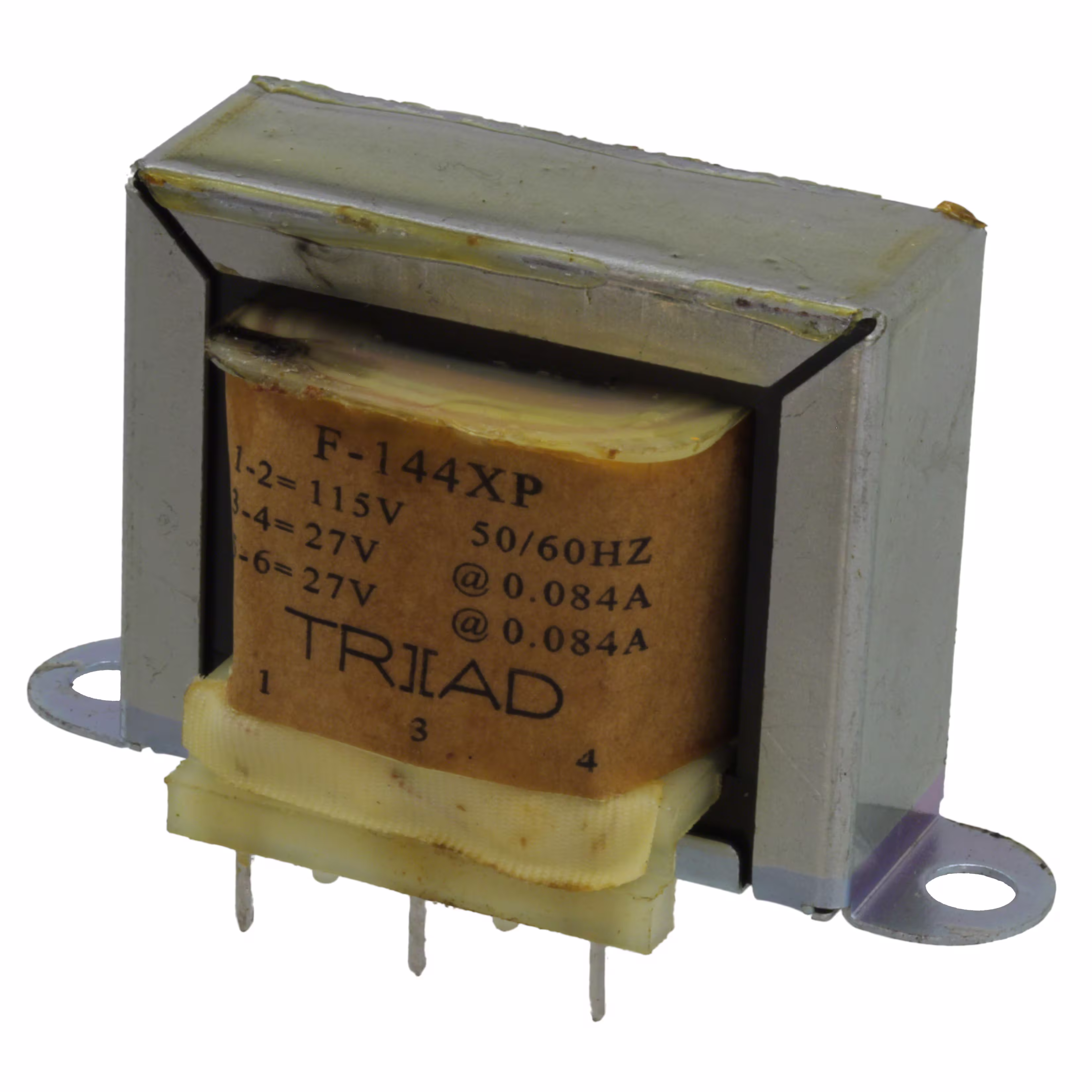

F-144XPPWR XFMR LAMINATED 4.5VA CHAS MT |
3,191 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 27V, Series 54V | Parallel 168mA, Series 84mA | Single | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.469 lb (212.73 g) |
|

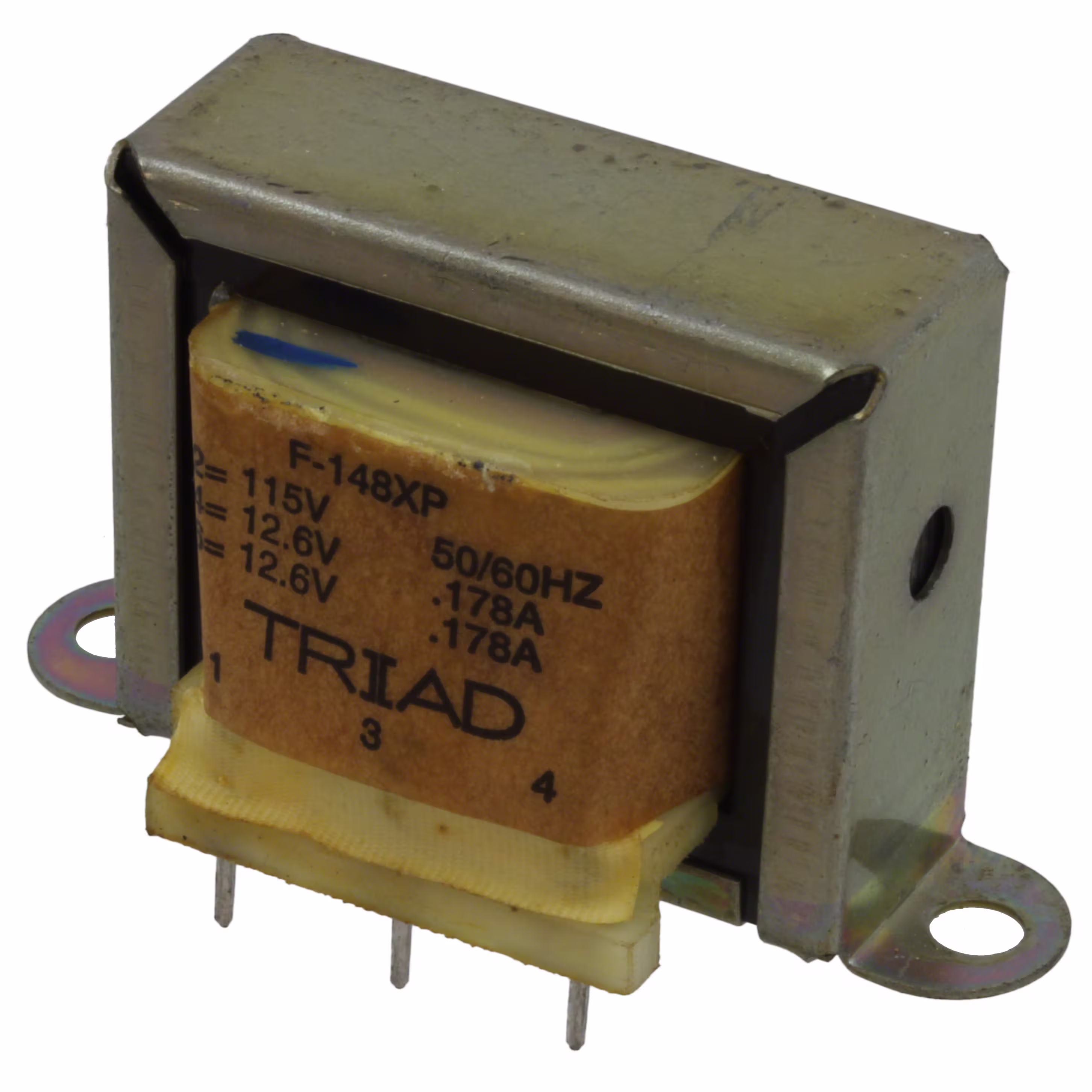

F-148XPPWR XFMR LAMINATED 4.5VA CHAS MT |
4,689 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 12.6V, Series 25.2V | Parallel 356mA, Series 178mA | Single | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.469 lb (212.73 g) |
|
FS28-85PWR XFMR LAMINATED 2.4VA TH |
1,653 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
FS10-250-BPWR XFMR LAMINATED 2.4VA TH |
2,519 |
|
Datasheet | Split Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
FS28-85-BPWR XFMR LAMINATED 2.4VA TH |
2,636 |
|
Datasheet | Split Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
FS36-65-BPWR XFMR LAMINATED 2.4VA TH |
4,625 |
|
Datasheet | Split Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
F24-800-C2PWR XFMR LAMINATED 20VA TH |
4,494 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Obsolete | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 1.6A, Series 800mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms | 0.8 lb (362.87 g) |
|
F-168XPPWR XFMR LAMINATED 4.5VA TH |
2,366 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 15V, Series 32V | Parallel 195mA, Series 50mA | Single | Dual | Yes | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.45mm | 1500Vrms | 0.469 lb (212.73 g) |
|
|
FS120-05PWR XFMR LAMINATED 6VA TH |
1,834 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 100mA, Series 50mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.4 lb (181.44 g) |
|
|
FS48-125PWR XFMR LAMINATED 6VA TH |
4,590 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 250mA, Series 125mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.44 lb (199.58 g) |
