Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FD4-36PWR XFMR LAMINATED 6VA CHAS MT |
3,040 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 36V | 170mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|
|
FD4-56PWR XFMR LAMINATED 6VA CHAS MT |
1,525 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 56V | 110mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|
F-3153XPPWR XFMR LAMINATED 7.5VA TH |
1,952 |
|

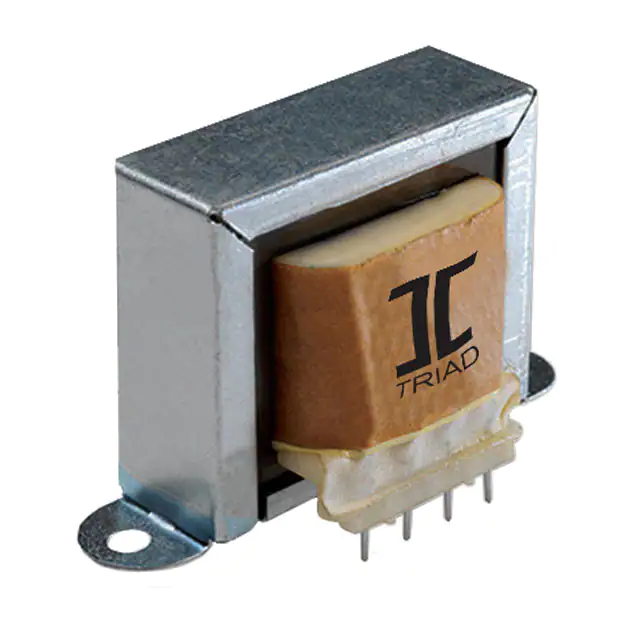

Datasheet | Dual Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 500mA, Series 250mA | Dual | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms | 0.688 lb (312.07 g) |
|
F-152XPPWR XFMR LAMINATED 7.5VA CHAS MT |
2,439 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 7.5V, Series 15V | Parallel 1A, Series 500mA | Single | Dual | No | 7.5VA | Chassis Mount | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
|
F10-1200-C2PWR XFMR LAMINATED 12VA TH |
4,035 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 2.4A, Series 1.2A | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
|
F48-250-C2PWR XFMR LAMINATED 12VA TH |
4,564 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 500mA, Series 250mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F28-420-C2PWR XFMR 12VA TH |
1,714 |
|
Datasheet | F28 | Bulk | Active | - | 115V | Parallel 14V, Series 28V | Parallel 840mA, Series 420mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 49.00mm L x 41.00mm W | 38.51mm | 4200V | - |
|
F5-16PWR XFMR LAMINATED 12VA CHAS MT |
1,370 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 16V | 800mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
F-3143XPPWR XFMR LAMINATED 4.5VA CHAS MT |
2,306 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 300mA, Series 150mA | Dual | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.407 lb (184.62 g) |
|
F-350XPPWR XFMR LAMINATED 4.5VA CHAS MT |
2,273 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 360mA, Series 180mA | Dual | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.407 lb (184.62 g) |
