Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

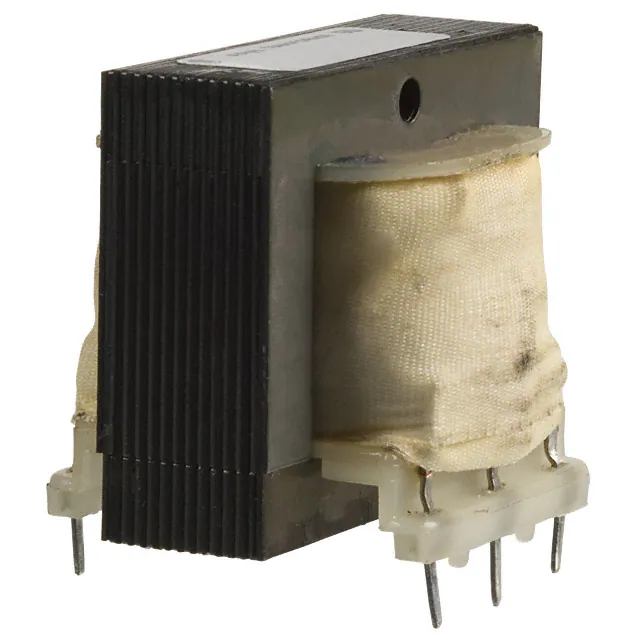

PC-34-125PWR XFMR LAMINATED 4.4VA TH |
294 |
|
Datasheet | PC | Box | Active | Laminated Core | 115V | Parallel 17V, Series 34V | Parallel 250mA, Series 125mA | Single | Dual | No | 4.4VA | Through Hole | PC Pin | 41.30mm L x 31.80mm W | 34.92mm | 1500Vrms | 0.313 lb (141.97 g) |
|

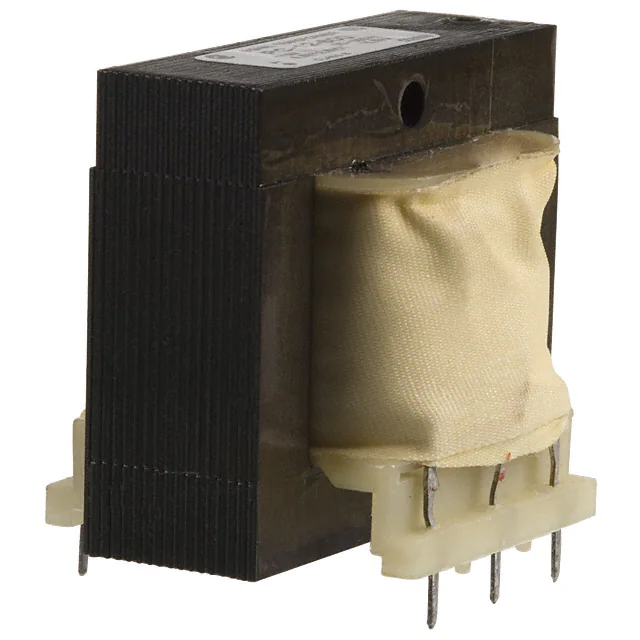

PC-34-300PWR XFMR LAMINATED 10VA TH |
150 |
|
Datasheet | PC | Box | Active | Laminated Core | 115V | Parallel 17V, Series 34V | Parallel 600mA, Series 300mA | Single | Dual | No | 10VA | Through Hole | PC Pin | 47.60mm L x 36.50mm W | 41.27mm | 1500Vrms | 0.563 lb (255.37 g) |
|
A41-25-24PWR XFMR LAMINATED 25VA CHAS MT |
2,061 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 54.40mm W | 58.70mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
DPC-10-90PWR XFMR LAMINATED 1VA TH |
243 |
|
Datasheet | DPC | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 180mA, Series 90mA | Dual | Dual | No | 1VA | Through Hole | PC Pin | 25.40mm L x 34.92mm W | 21.08mm | 1500Vrms | 0.157 lb (71.21 g) |
|
DP-241-6-24PWR XFMR LAMINATED 30VA CHAS MT |
2,451 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 24V | 1.25A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.60mm L x 44.30mm W | 49.80mm | 2500Vrms | 1.1 lbs (499 g) |
|
CL2-25-24PWR XFMR LAMINATED 25VA CHAS MT |
277 |
|
Datasheet | CL2 | Bulk | Active | Laminated Core | 115V, 230V | 24V | 1.05A | Dual | Single | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 54.40mm W | 58.70mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
14A-20-16PWR XFMR LAMINATED 20VA TH |
152 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 2.5A, Series 1.25A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.30mm | 4000Vrms | 0.9 lb (408.23 g) |
|
DST-5-36PWR XFMR LAMINATED 12VA TH |
169 |
|
Datasheet | DST | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 700mA, Series 350mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.80mm L x 39.60mm W | 36.90mm | 2500Vrms | 0.7 lb (317.51 g) |
|
CL2-10R-12PWR XFMR LAMINATED 10VA TH |
277 |
|
Datasheet | CL2 | Box | Active | Laminated Core | 115V, 230V | 12V | 830mA | Dual | Single | No | 10VA | Through Hole | PC Pin | 47.60mm L x 39.70mm W | 34.90mm | 4000Vrms | 0.53 lb (240.4 g) |
|
