DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V7803-1500DC DC CONVERTER 3.3V 4.95W |
4,499 |
|
Datasheet | V78-1500 | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 4.75V | 18V | 3.3V | - | - | - | 1.5A | 4.95 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 91% | - | - | Through Hole | - | - | - | - |
|
V7809-1000DC DC CONVERTER 9V 9W |
4,087 |
|
Datasheet | V78-1000 | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 12V | 32V | 9V | - | - | - | 1A | 9 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | - | - | - | - |
|
PQMC1-D24-S15-SDC DC CONVERTER 15V 1W |
2,093 |
|
Datasheet | PQMC1-S (1W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | - | Enable, Active Low | EN | 55024; 55032 Class A |
|
PDQ2-D48-S15-SDC DC CONVERTER 15V 2W |
3,525 |
|
Datasheet | PDQ2-S (2W) | 8-SIP Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 134mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | - | Enable, Active Low | EN | 55032 Class A |
|

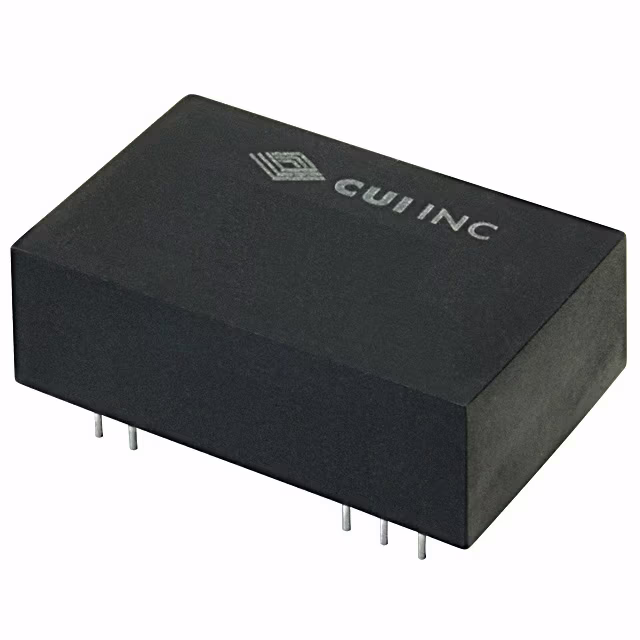

PQB3-D24-D5-DDC DC CONVERTER +/-5V 3W |
2,172 |
|
Datasheet | PQB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
PUZ3-D5-D12-DDC DC CONVERTER +/-12V 3W |
4,101 |
|
Datasheet | PUZ3-D (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 76% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
PQMC1-D24-D12-SDC DC CONVERTER +/-12V 1W |
1,445 |
|
Datasheet | PQMC1-S (1W) | 8-SIP Module, 7 Leads | Bulk | Not For New Designs | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 41mA, 41mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | Enable, Active Low | EN | 55024; 55032 Class A |
|
|
PQMC1-D5-D5-SDC DC CONVERTER +/-5V 1W |
4,012 |
|
Datasheet | PQMC1-S (1W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 73% | - | - | Through Hole | - | Enable, Active Low | EN | 55024; 55032 Class A |
|
|
PUZ3-D48-S15-DDC DC CONVERTER 15V 3W |
1,502 |
|
Datasheet | PUZ3-D (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 86% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
PUZ3-D24-S12-DDC DC CONVERTER 12V 3W |
1,217 |
|
Datasheet | PUZ3-D (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
