DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

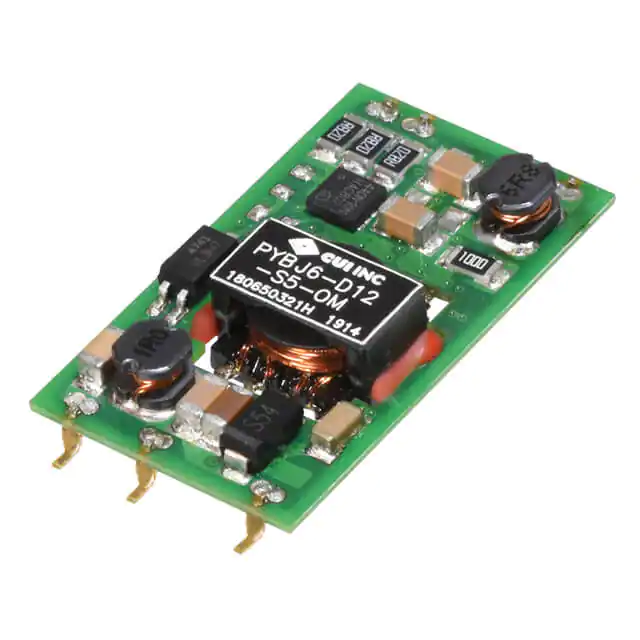

PYBJ6-D12-S15-OMDC DC CONVERTER 15V 6W |
1,226 |
|
Datasheet | PYBJ6 (6W) | 6-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 85% | - | - | Surface Mount | - | - | CB Scheme, IEC, UL | 62368-1 |
|
PGNP2-S24-S12-SDC-DC ISOLATED, 2 W, 21.6~26.4 V |
4,028 |
|
Datasheet | PGNP2-S (2W) | 9-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 16.5V | 12V | - | - | - | 167mA | 2 W | 6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | CE, cURus, UKCA | 62368-1 |
|
PYBJ3-D24-S15-OMDC DC CONVERTER 15V 3W |
3,255 |
|
Datasheet | PYBJ3 (3W) | 6-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE | - |
|
PYBJ6-D12-S15-MDC DC CONVERTER 15V 6W |
3,322 |
|
Datasheet | PYBJ6 (6W) | 6-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 85% | - | - | Surface Mount | - | - | CB Scheme, IEC, UL | 62368-1 |
|
|
PYBJ6-D24-S12-MDC DC CONVERTER 12V 6W |
4,673 |
|
Datasheet | PYBJ6 (6W) | 6-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 85% | - | - | Surface Mount | - | - | CB Scheme, IEC, UL | 62368-1 |
|
|
PYBJ6-D12-S5-MDC DC CONVERTER 5V 6W |
2,907 |
|
Datasheet | PYBJ6 (6W) | 6-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 81% | - | - | Surface Mount | - | - | CB Scheme, IEC, UL | 62368-1 |
|
PDM2-S12-S15-SDC DC CONVERTER 15V 2W |
2,526 |
|
Datasheet | PDM2-S (2W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 133mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PQP3-D24-S5-MDC DC CONVERTER 5V 3W |
1,251 |
|
Datasheet | PQP3-M | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | - | - | Surface Mount | - | - | CE | - |
|
PQP3-D24-S3-DDC DC CONVERTER 3.3V 2.5W |
3,989 |
|
Datasheet | PQP3-D | 8-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 758mA | 2.5 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | - | - | CE | - |
|
|
PQP3-D12-D15-DDC DC CONVERTER +/-15V 3W |
1,492 |
|
Datasheet | PQP3-D | 8-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | CE | - |
