DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRM1W-E12-D15-SDC-DC ISOLATED, 1 W, 4.5~36 VDC |
2,431 |
|
Datasheet | PRM1W-S (1W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 36V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 74% | - | - | Through Hole | - | - | CE | 62368-1 |
|
PGNP1-S12-D5-SDC-DC ISOLATED, 1 W, 10.8~13.2 V |
4,544 |
|
Datasheet | PGNP1-S (1W) | 9-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | - | - | CE, cURus, UKCA | 60601-1; 62368-1 |
|
PEM2-S24-S5-SDC DC CONVERTER 5V 2W |
4,266 |
|
Datasheet | PEM2-S (2W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
VQA3S-S15-D20-SDC-DC ISOLATED, 2.25 W, 13.5~16. |
2,502 |
|
Datasheet | Artix® UltraScale+ | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 13.5V | 16.5V | 20V | -5V | - | - | 90mA, 90mA | - | 5.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | - | - | cURus | 62368-1 |
|
|
PGNP2-S24-S24-SDC-DC ISOLATED, 2 W, 21.6~26.4 V |
3,272 |
|
Datasheet | PGNP2-S (2W) | 9-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 16.5V | 24V | - | - | - | 83mA | 1.992 W | 6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | - | - | CE, cURus, UKCA | 62368-1 |
|
PQP1-D24-D5-DDC DC CONVERTER +/-5V 1W |
1,639 |
|
Datasheet | PQP1-D | 8-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | CE, cURus | - |
|
PQP3-D12-S5-MDC DC CONVERTER 5V 3W |
1,319 |
|
Datasheet | PQP3-M | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | - | - | Surface Mount | - | - | CE | - |
|
|
PQP3-D24-S24-MDC DC CONVERTER 24V 3W |
1,591 |
|
Datasheet | PQP3-M | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Surface Mount | - | - | CE | - |
|
PDM1-S15-S24-SDC DC CONVERTER 24V 1W |
3,053 |
|
Datasheet | PDM1-S (1W) | 6-SIP Module, 4 Leads | Bulk | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | cURus | - |
|

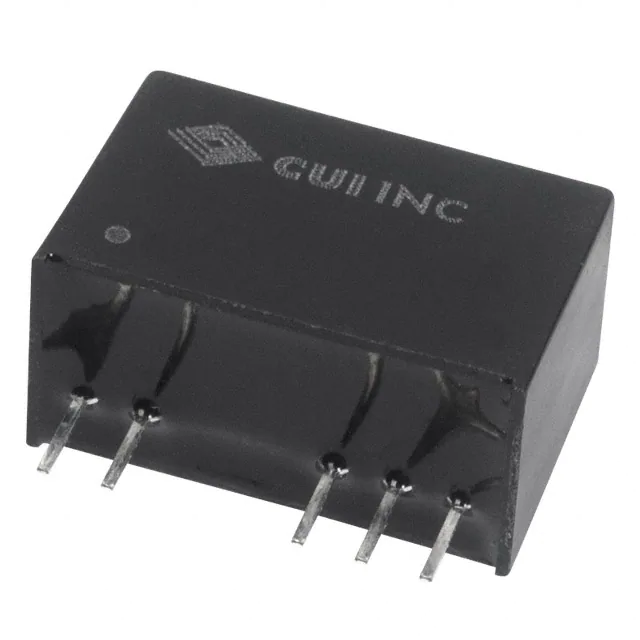

VQA-S15-D9-SIPDC DC CONVERTER +/-9V 1W |
1,133 |
|
Datasheet | VQA | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 14.5V | 15.5V | 9V | -9V | - | - | 55mA, 55mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | CB Scheme, IEC | 60950-1 |
