DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C12DC DC CONVERTER 1250V 1W |
3,849 |
|
Datasheet | XP EMCO - C (1W) | 5-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 16V | 1250V | - | - | - | 1mA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | 62368-1 |
|
CA12PDC DC CONVERTER 1250V 1W |
1,009 |
|
Datasheet | XP EMCO - CA (1W) | 8-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 15.5V | 1250V | - | - | - | 800µA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 50°C | - | - | - | Through Hole | - | - | - | 62368-1 |
|
IE2415DDC DC CONVERTER 15V 1W |
370 |
|
Datasheet | IE (1W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - |
|
|
IE2424DDC DC CONVERTER 24V 1W |
239 |
|
Datasheet | IE (1W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - |
|
IE0303SDC DC CONVERTER 3.3V 1W |
160 |
|
Datasheet | IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 300mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Through Hole | - | - | - | - |
|
|
IE0512SDC DC CONVERTER 12V 1W |
118 |
|
Datasheet | IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - |
|
|
IE2403SDC DC CONVERTER 3.3V 1W |
107 |
|
Datasheet | IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 300mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | - |
|
|
IE2412SDC DC CONVERTER 12V 1W |
105 |
|
Datasheet | IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - |
|

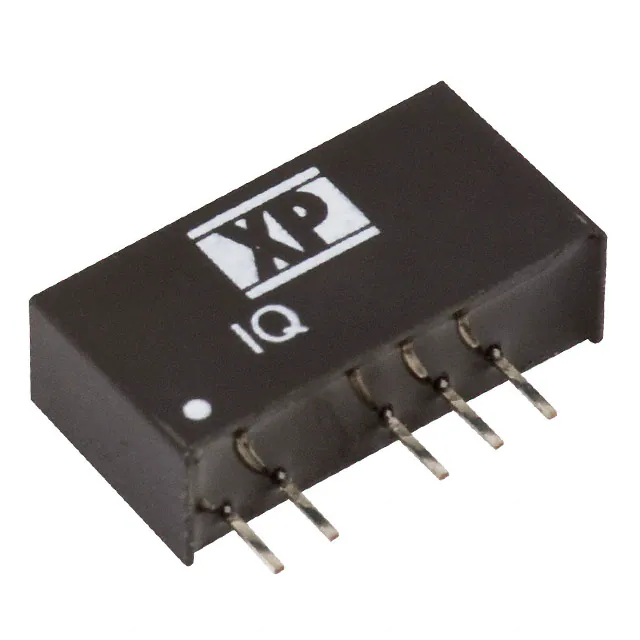

IQ0505SADC DC CONVERTER 5V 1W |
186 |
|
Datasheet | IQ (1W) | 7-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - |
|
IK0515SADC DC CONVERTER 15V 250MW |
649 |
|
Datasheet | IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 16.67mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 68% | - | - | Through Hole | - | - | - | - |
