DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JCM3012S05DC DC CONVERTER 5V 30W |
256 |
|
Datasheet | JCM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 6A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 89% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
|
JCM3024D15DC DC CONVERTER +/-15V 30W |
263 |
|
Datasheet | JCM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 92% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
JSM2512S12DC DC CONVERTER 12V 25W |
569 |
|
Datasheet | JSM25 (25W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 2.09A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
JTK3024D15DC DC CONVERTER +/-15V 30W |
2,803 |
|
Datasheet | JTK30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 91% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
JHM1012S12DC DC CONVERTER 12V 10W |
462 |
|
Datasheet | JHM (10W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 833mA | 10 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 88% | - | - | Through Hole | - | - | - | - |
|
|
JHM1024D12DC DC CONVERTER +/-12V 10W |
1,123 |
|
Datasheet | JHM (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 420mA, 420mA | 10 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 88% | - | - | Through Hole | - | - | - | - |
|
JTM2024S3V3DC DC CONVERTER 3.3V 20W |
108 |
|
Datasheet | JTM (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 5.5A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 89% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
JHM1512S12DC DC CONVERTER 12V 15W |
2,995 |
|
Datasheet | JHM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 1.25A | 15 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 86% | - | - | Through Hole | - | - | - | - |
|

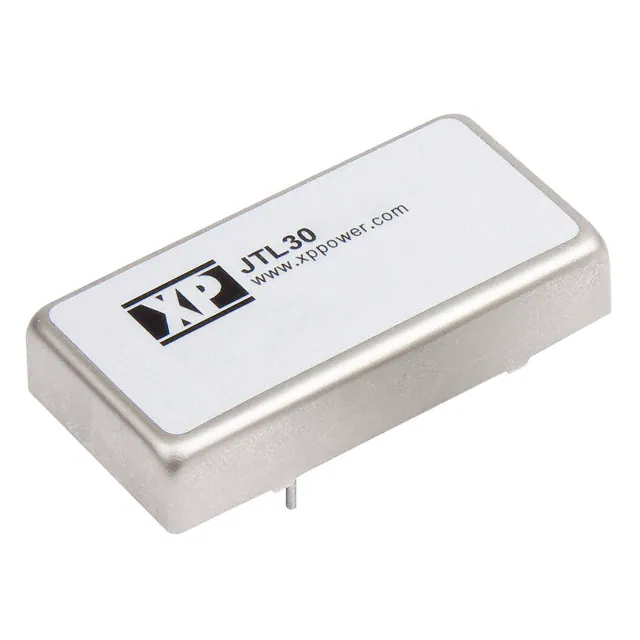

JTL3024S05DC DC CONVERTER 5V 30W |
2,924 |
|
Datasheet | JTL (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 75°C | 91% | - | - | Through Hole | - | Enable, Active High | - | - |
|
JCK4024S05DC DC CONVERTER 5V 40W |
476 |
|
Datasheet | JCK (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 8A | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 92% | - | - | Through Hole | - | Enable, Active High | - | - |
