DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IZ0503SADC DC CONVERTER 3.3V 3W |
127 |
|
Datasheet | IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 700mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 74% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
|
IZ1215SDC DC CONVERTER +/-15V 3W |
554 |
|
Datasheet | IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
|
IZ2405SDC DC CONVERTER +/-5V 3W |
297 |
|
Datasheet | IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
IP4805SADC DC CONVERTER 5V 3W |
169 |
|
Datasheet | IP (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 70°C | 78% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
IP2403SADC DC CONVERTER 3.3V 3W |
118 |
|
Datasheet | IP (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 700mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | - | Enable, Active Low | - | - |
|

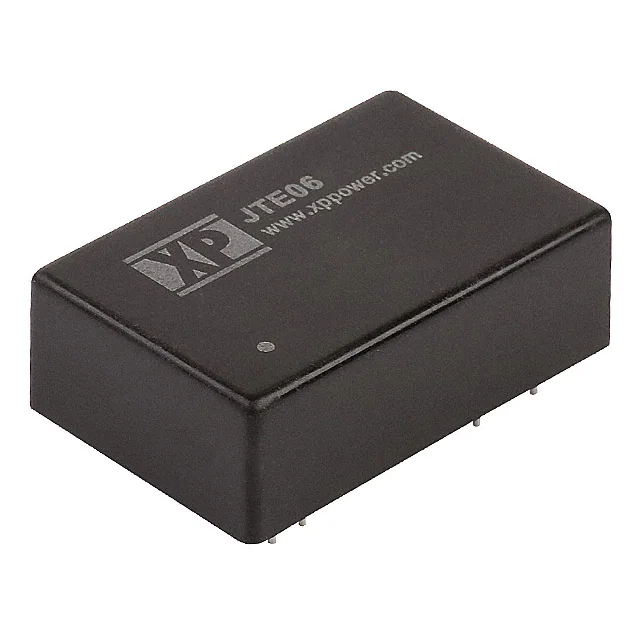

JTE0624D24DC DC CONVERTER +/-24V 6W |
810 |
|
Datasheet | JTE (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | 125mA, 125mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C | 82% | - | - | Through Hole | - | - | - | 62368-1 |
|
JCD0524S05DC DC CONVERTER 5V 5W |
1,546 |
|
Datasheet | JCD (5W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | - | - | - | 62368-1 |
|
ITX0505SADC DC CONVERTER 5V 6W |
1,853 |
|
Datasheet | ITX (6W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 65°C | 81% | - | - | Through Hole | - | - | - | 62368-1 |
|

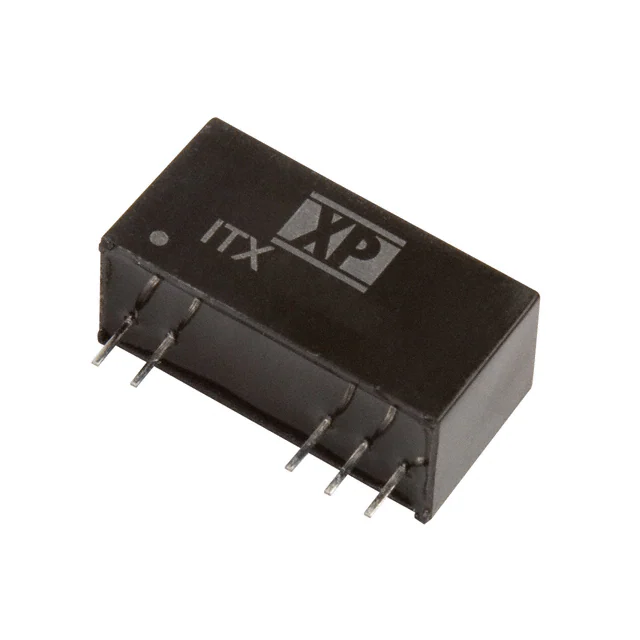

ITX0505SDC DC CONVERTER +/-5V 6W |
310 |
|
Datasheet | ITX (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 65°C | 81% | - | - | Through Hole | - | - | - | 62368-1 |
|
JCH1024D15DC DC CONVERTER +/-15V 10W |
791 |
|
Datasheet | JCH (10W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | - | - | - | 62368-1 |
