DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL2409SDC DC CONVERTER 9V 2W |
631 |
|
Datasheet | IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - |
|
|
IL2415SDC DC CONVERTER 15V 2W |
394 |
|
Datasheet | IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 132mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - |
|

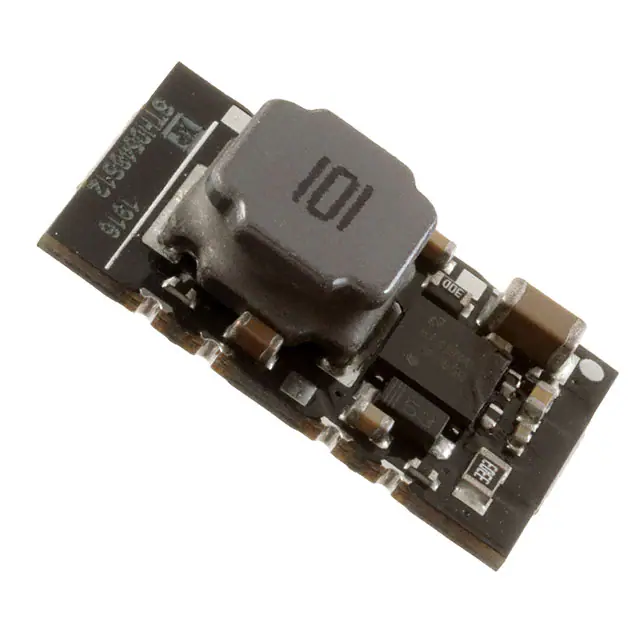

STH0548S3V3DC DC CONVERTER 3.3V |
269 |
|
Datasheet | STH05 (5W) | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 72V | 3.3V | - | - | - | 500mA | - | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C (With Derating) | 79% | - | - | Surface Mount | - | - | - | - |
|
ITW1212SADC DC CONVERTER 12V 1W |
147 |
|
Datasheet | ITW (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 83mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | 62368-1 |
|

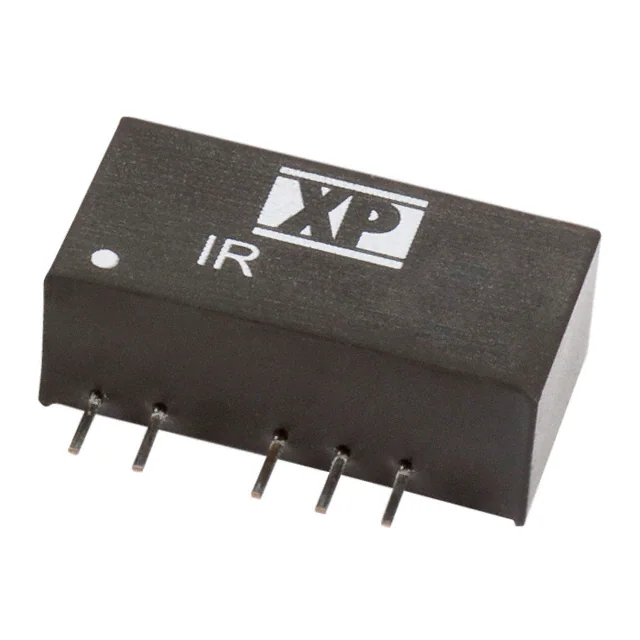

IR1212SDC DC CONVERTER +/-12V 3W |
229 |
|
Datasheet | IR (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 125mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | - | - | - | - |
|
|
IR0505SADC DC CONVERTER 5V 3W |
183 |
|
Datasheet | IR (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - |
|
IU4805SADC DC CONVERTER 5V 2W |
135 |
|
Datasheet | IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 74% | - | - | Through Hole | - | - | - | 62368-1 |
|
IM4805SADC DC CONVERTER 5V 2W |
229 |
|
Datasheet | IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
IZ1205SADC DC CONVERTER 5V 3W |
3,610 |
|
Datasheet | IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
|
IZ4812SDC DC CONVERTER +/-12V 3W |
514 |
|
Datasheet | IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 72V | 12V | -12V | - | - | 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
