DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

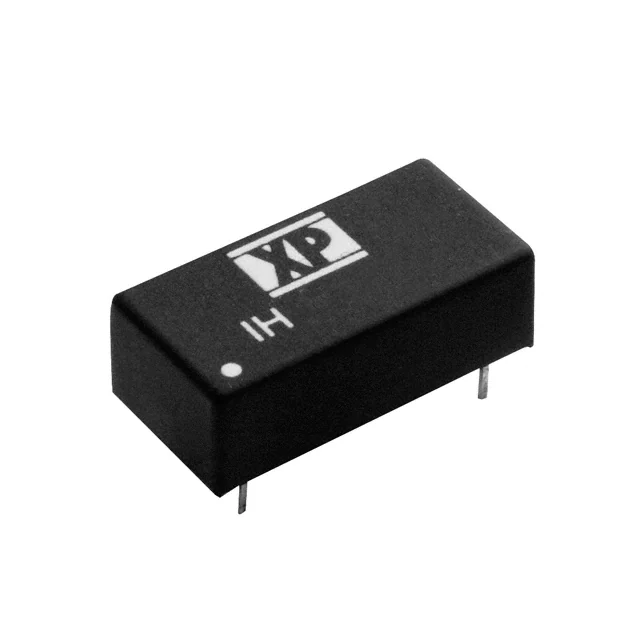

IH0524DDC DC CONVERTER +/-24V 2W |
342 |
|
Datasheet | IH (2W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - |
|
IL1205SDC DC CONVERTER 5V 2W |
290 |
|
Datasheet | IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - |
|
|
IL0512SDC DC CONVERTER 12V 2W |
207 |
|
Datasheet | IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 168mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
|
IL0503SDC DC CONVERTER 3.3V 2W |
144 |
|
Datasheet | IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Through Hole | - | - | - | - |
|
|
IL0515SDC DC CONVERTER 15V 2W |
117 |
|
Datasheet | IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 132mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
ITW2405SADC DC CONVERTER 5V 1W |
173 |
|
Datasheet | ITW (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | 62368-1 |
|
IU2415SADC DC CONVERTER 15V 2W |
2,708 |
|
Datasheet | IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | 62368-1 |
|
IU1224SADC DC CONVERTER 24V 2W |
780 |
|
Datasheet | IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | 62368-1 |
|
|
IU0512SADC DC CONVERTER 12V 2W |
154 |
|
Datasheet | IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | 62368-1 |
|
IM2403SADC DC CONVERTER 3.3V 2W |
3,092 |
|
Datasheet | IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 500mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 75% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
