Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

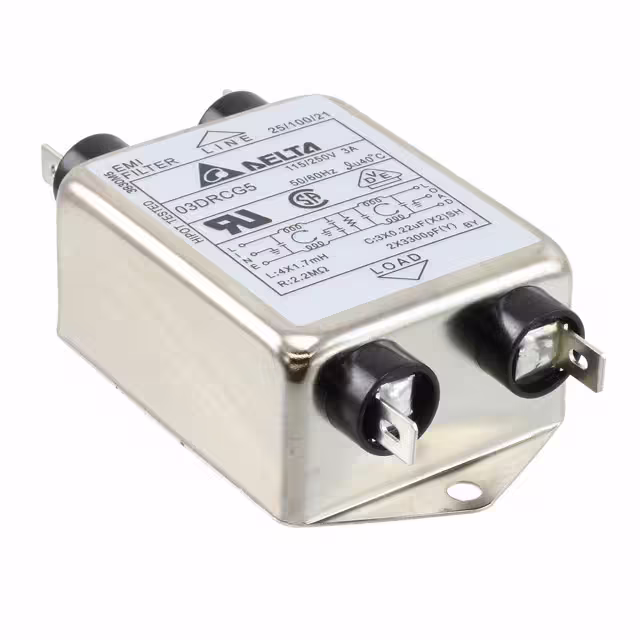

03DRCG5LINE FILTER 115V/250VAC 3A CHASS |
2,736 |
|
Datasheet | DR | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1.7mH |
|

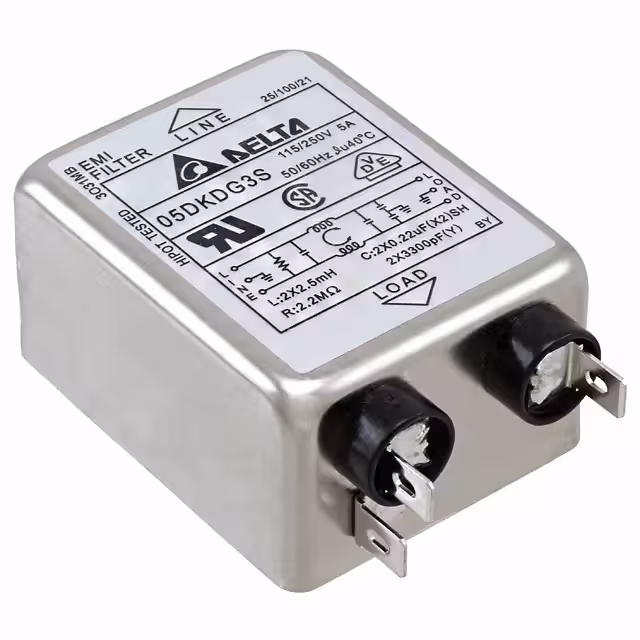

05DKDG3SLINE FILTER 115V/250VAC 5A CHASS |
1,605 |
|
Datasheet | DK | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | IEC 320-C14, Quick Connect | 4.5mH |
|
03DRCW5LINE FILTER 115V/250VAC 3A CHASS |
4,267 |
|
Datasheet | DR | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Wire Leads | 1.7mH |
|

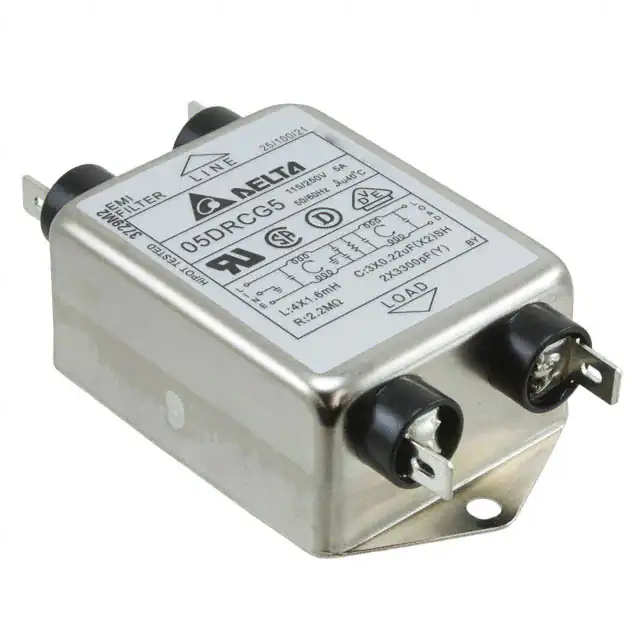

05DRCG5LINE FILTER 115V/250VAC 5A CHASS |
4,783 |
|
Datasheet | DR | Bulk | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1.6mH |
|
05DRCW5LINE FILTER 115V/250VAC 5A CHASS |
2,160 |
|
Datasheet | DR | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Wire Leads | 1.6mH |
|

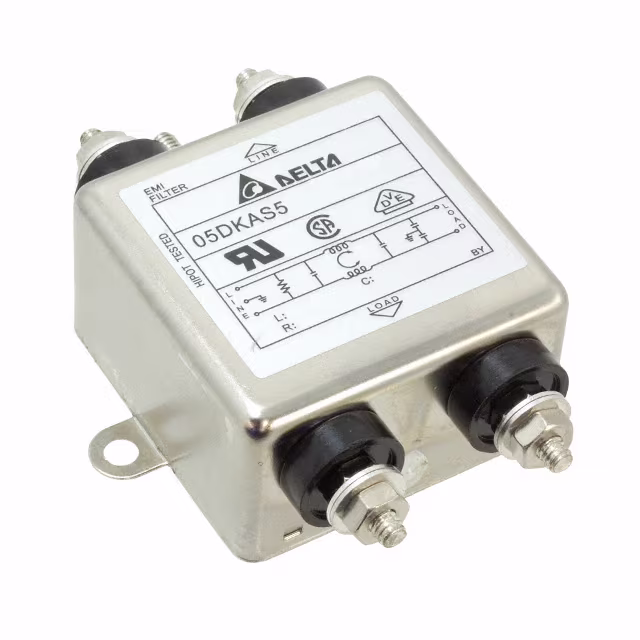

05DKAS5LINE FILTER 115V/250VAC 5A CHASS |
3,029 |
|
Datasheet | DK | Bulk | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Threaded Post (8-32) | 2.7mH |
|
03DKAG5LINE FILTER 115V/250VAC 3A CHASS |
2,012 |
|
Datasheet | DK | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 3.2mH |
|

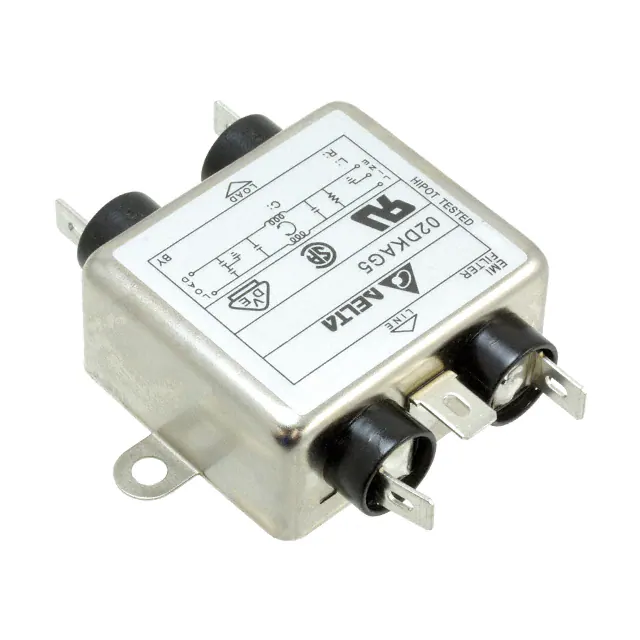

02DKAG5LINE FILTER 115V/250VAC 2A CHASS |
3,971 |
|
Datasheet | DK | Bulk | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 2 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 2.1mH |
|
06DWCG5LINE FILTER 115V/250VAC 6A CHASS |
3,174 |
|
Datasheet | DW | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | L1 - 1.7mH, L2 - 70mH |
|
03DWCG5LINE FILTER 115V/250VAC 3A CHASS |
4,614 |
|
Datasheet | DW | Bulk | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | L1 - 1mH, L2 - 30mH |
