Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
01MK2PC BOARD MOUNTING FILTER 1A |
3,077 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
03DPCG5CMLINE FILTER 115V/250VAC 3A CHASS |
1,836 |
|
Datasheet | DP | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | - |
|
|
03DKBG5BMLINE FILTER 115V/250VAC 3A CHASS |
1,853 |
|
Datasheet | DK | Bulk | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | 2.5mH |
|

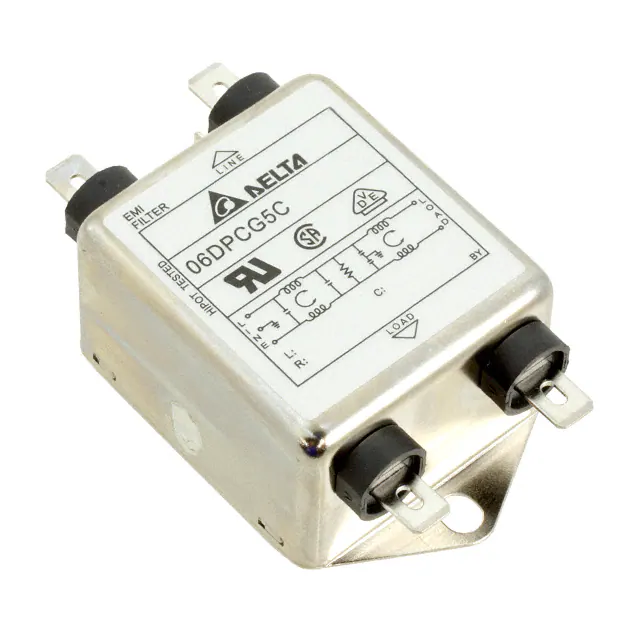

06DPCG5CLINE FILTER 115V/250VAC 6A CHASS |
3,669 |
|
Datasheet | DP | Bulk | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | 970µH |
|

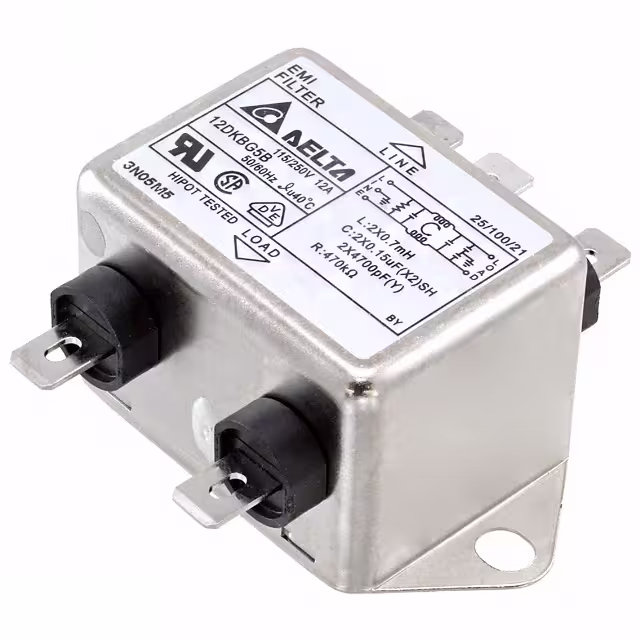

12DKBG5BLINE FILTER 115V/250VAC 12A CHAS |
4,762 |
|
Datasheet | DK | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 12 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 700µH |
|
10DBAG5LINE FILTER 115V/250VAC 10A CHAS |
4,363 |
|
Datasheet | DB | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1.5mH |
|
03DSCG5LINE FILTER 115V/250VAC 3A CHASS |
3,804 |
|
Datasheet | DS | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | L1 - 30mH, L2 - 1mH |
|
06DPCG5CMLINE FILTER 115V/250VAC 6A CHASS |
2,991 |
|
Datasheet | DP | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | - |
|
03DPCW5CLINE FILTER 115V/250VAC 3A CHASS |
4,483 |
|
Datasheet | DP | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Wire Leads | - |
|

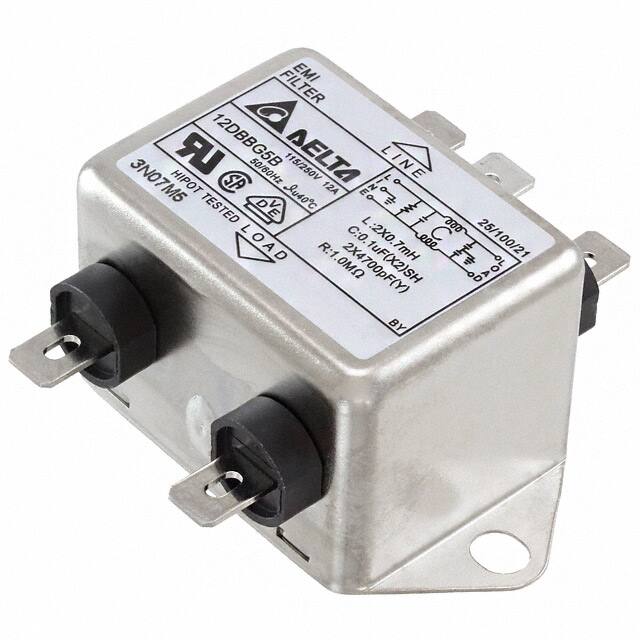

12DBBG5BLINE FILTER 115V/250VAC 12A CHAS |
3,442 |
|
Datasheet | DB | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 12 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 700µH |
