Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

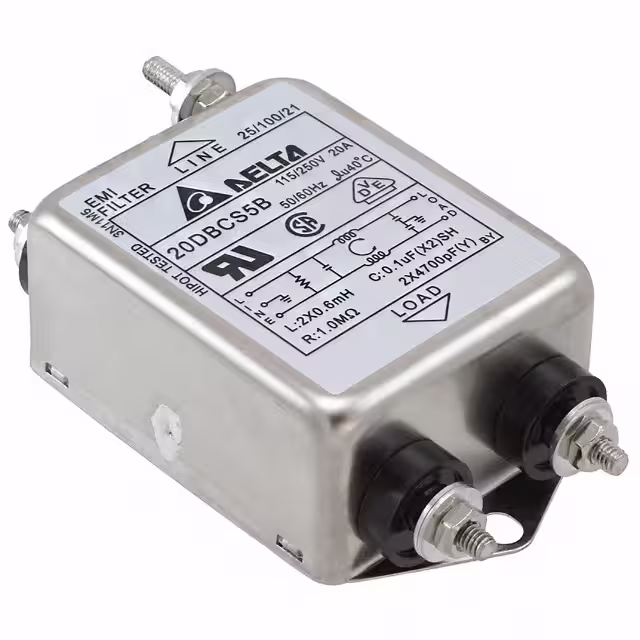

20DBCS5BLINE FILTER 115V/250VAC 20A CHAS |
2,392 |
|
Datasheet | DB | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Threaded Post (8-32) | 600µH |
|

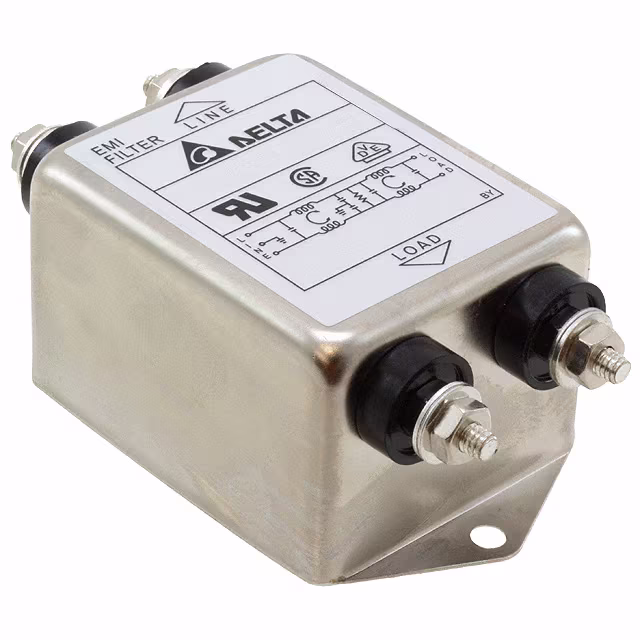

10DRCS5LINE FILTER 115V/250VAC 10A CHAS |
3,744 |
|
Datasheet | DR | Bulk | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Threaded Post (8-32) | 1mH |
|
10DSCG5LINE FILTER 115V/250VAC 10A CHAS |
3,716 |
|
Datasheet | DS | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | L1 - 40mH, L2 - 1.2mH |
|
10TYG9LINE FILTER 440VAC 10A CHASS MNT |
1,750 |
|
Datasheet | TY | Bulk | Active | Three Phase (Wye) | Single Stage | - | 440V | - | - | 10 A | 50/60Hz | General Purpose | cURus, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Quick Connect | 300µH |
|
04DKPS4LINE FILTER 250VAC 4A CHASS MNT |
1,950 |
|
Datasheet | DKP | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 4 A | 50/60Hz | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 6.4mH |
|

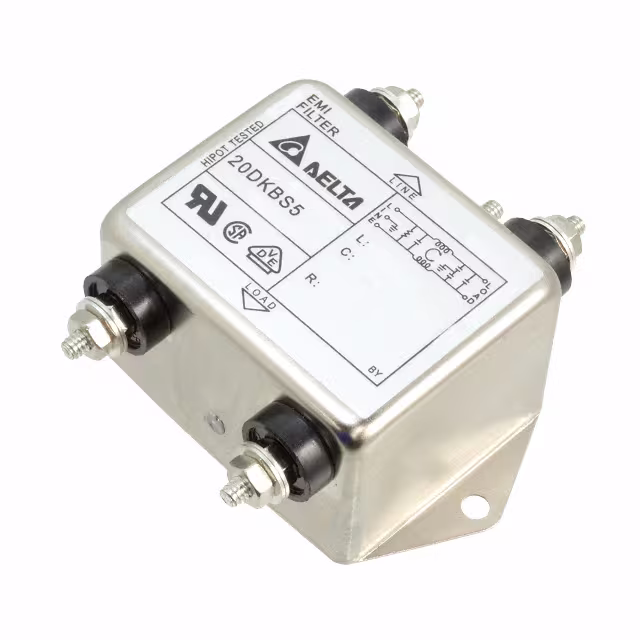

20DKBS5LINE FILTER 115V/250VAC 20A CHAS |
2,401 |
|
Datasheet | DK | Bulk | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Threaded Post (8-32) | 1.4mH |
|
|
10DCCG5CLINE FILTER 115V/250VAC 10A CHAS |
2,668 |
|
Datasheet | - | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 10 A | 50/60Hz | - | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | - |
|
|
16DKPS4LINE FILTER 250VAC 16A CHASS MNT |
4,167 |
|
Datasheet | DKP | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 500µH |
|
|
20DKPS4LINE FILTER 250VAC 20A CHASS MNT |
4,342 |
|
Datasheet | DKP | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 500µH |
|

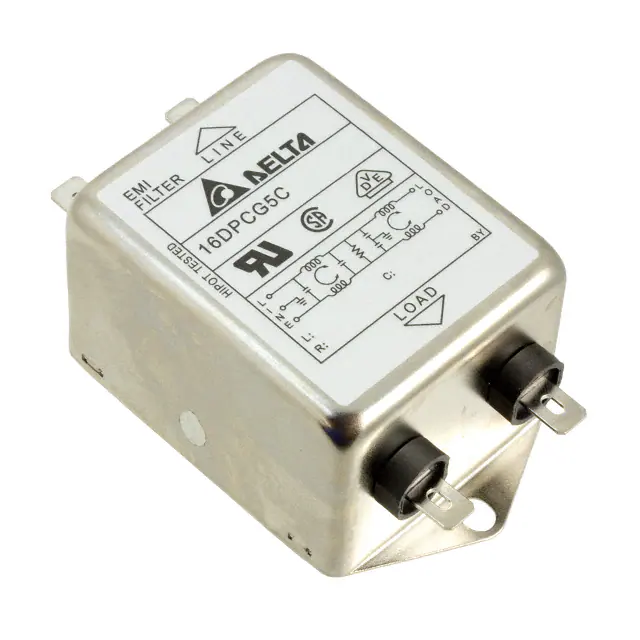

16DPCG5CLINE FILTER 115V/250VAC 16A CHAS |
4,503 |
|
Datasheet | DP | Bulk | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | 650µH |
