Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30DKPS4E(D)LINE FILTER 250VAC 30A CHASS MNT |
4,801 |
|
Datasheet | - | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 30 A | 50/60Hz | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 600µH |
|
|
30DRPS4ELINE FILTER 250VAC 30A CHASS MNT |
4,714 |
|
Datasheet | DRP | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 30 A | 50/60Hz | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 600µH |
|
|
30DRPS4E(D)LINE FILTER 250VAC 30A CHASS MNT |
4,167 |
|
Datasheet | DRP | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 30 A | 50/60Hz | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 600µH |
|

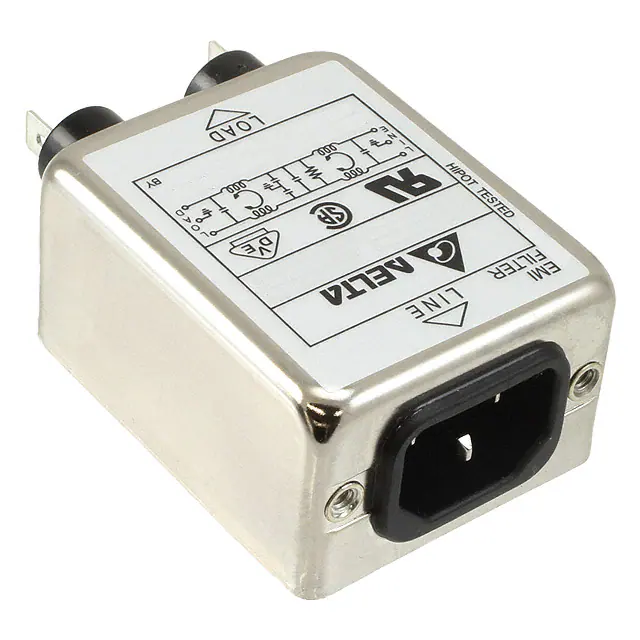

05DRDG3SLINE FILTER 115V/250VAC 5A CHASS |
4,852 |
|
Datasheet | DR | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | IEC 320-C14, Quick Connect | 1.3mH |
|
16DPGG5BLINE FILTER 115V/250VAC 16A CHAS |
2,002 |
|
Datasheet | DP | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | - |
|
20TDS6DLINE FILTER 440VAC 20A CHASS MNT |
3,971 |
|
Datasheet | TD | Box | Active | Three Phase (Delta) | Two Stage | - | 440V | - | - | 20 A | 50/60Hz | General Purpose | - | - | Chassis Mount | Threaded Post (M6) | L1 - 78µH, L2 - 1.6mH |
|

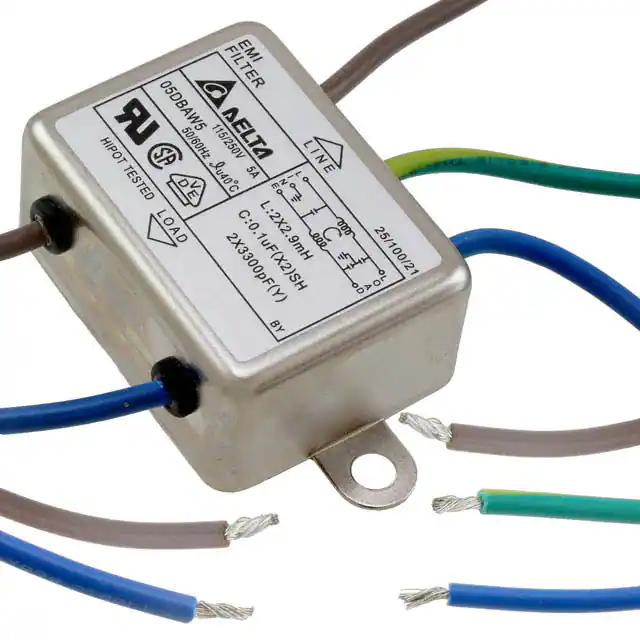

05DBAW5LINE FILTER 115V/250VAC 5A CHASS |
4,296 |
|
Datasheet | DB | Bulk | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Wire Leads | 2.9mH |
|

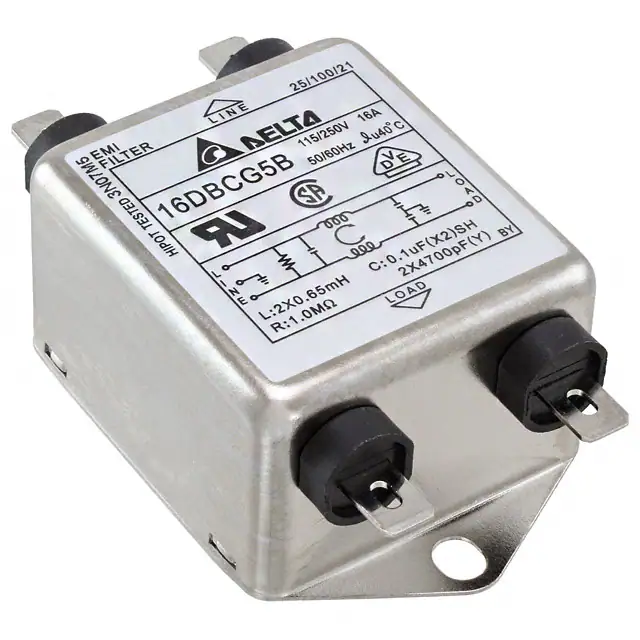

16DBCG5BLINE FILTER 115V/250VAC 16A CHAS |
3,878 |
|
Datasheet | DB | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 650µH |
|
30TDVST2LINE FILTER 480VAC 30A CHASS MNT |
2,095 |
|
Datasheet | TDV | Box | Active | Three Phase (Delta) | Single Stage | - | 480V | - | - | 30 A | 50/60Hz | General Purpose | cURus, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | 1mH |
|
|
FL75L20 ALINE FILTER 75VDC 20A TH |
4,734 |
|
Datasheet | Delphi | Tray | Active | DC | Three Stage | 75V | - | - | - | 20 A | - | General Purpose | cUL, UL, VDE | -40°C ~ 110°C | Through Hole | PC Pins | - |
