Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30DKPS4(D)LINE FILTER 250VAC 30A CHASS MNT |
2,443 |
|
Datasheet | DKP | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 30 A | 50/60Hz | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 120µH |
|
|
20DKPS4ELINE FILTER 250VAC 20A CHASS MNT |
3,902 |
|
Datasheet | DKP | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 2.4mH |
|
|
16DKPS4ELINE FILTER 250VAC 16A CHASS MNT |
3,121 |
|
Datasheet | DKP | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 2.4mH |
|
30DKCS5BLINE FILTER 115V/250VAC 30A CHAS |
4,183 |
|
Datasheet | DK | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 30 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Threaded Post (8-32) | 670µH |
|

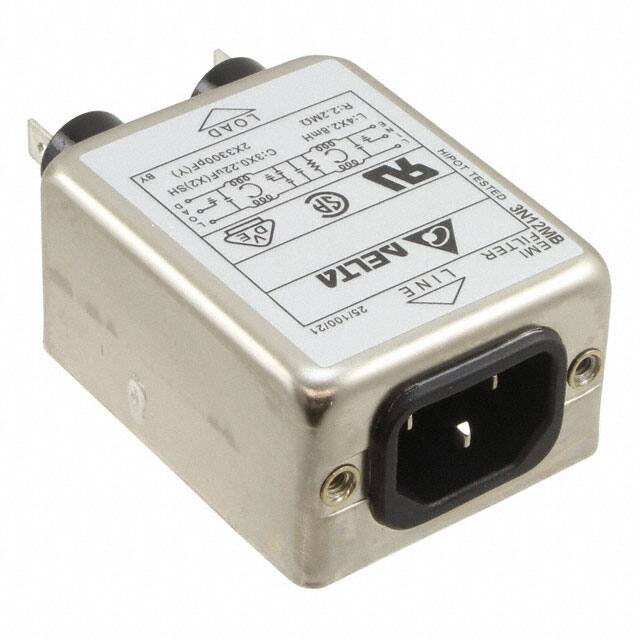

03DRDG3SLINE FILTER 115V/250VAC 3A CHASS |
4,907 |
|
Datasheet | DR | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | IEC 320-C14, Quick Connect | 2.8mH |
|

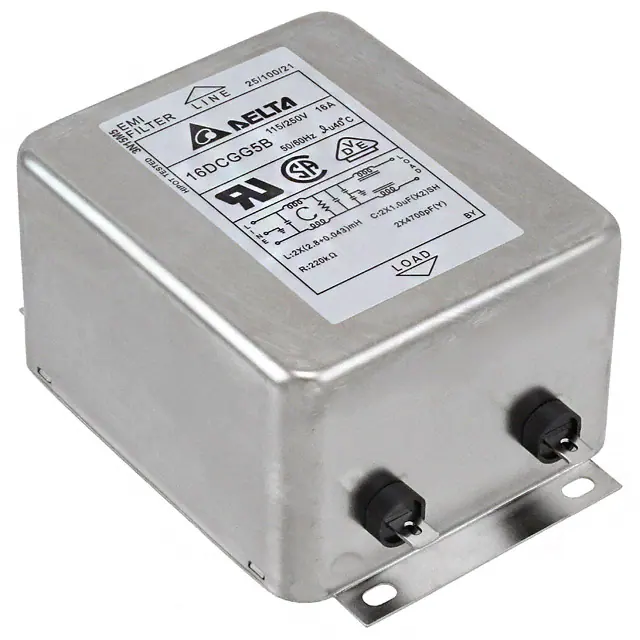

16DCGG5BLINE FILTER 115V/250VAC 16A CHAS |
2,159 |
|
Datasheet | DC | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | - |
|
|
60DKGS3LINE FILTER 120VAC 60A CHASS MNT |
3,992 |
|
- |
DK | Bulk | Active | Single Phase | Single Stage | - | 120V | - | - | 60 A | 60Hz | General Purpose | - | -25°C ~ 85°C | Chassis Mount | Threaded Post (M5) | 12µH |
|
|
04DRPS4(D)LINE FILTER 250VAC 4A CHASS MNT |
2,586 |
|
Datasheet | DRP | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 4 A | 50/60Hz | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 6.4mH |
|

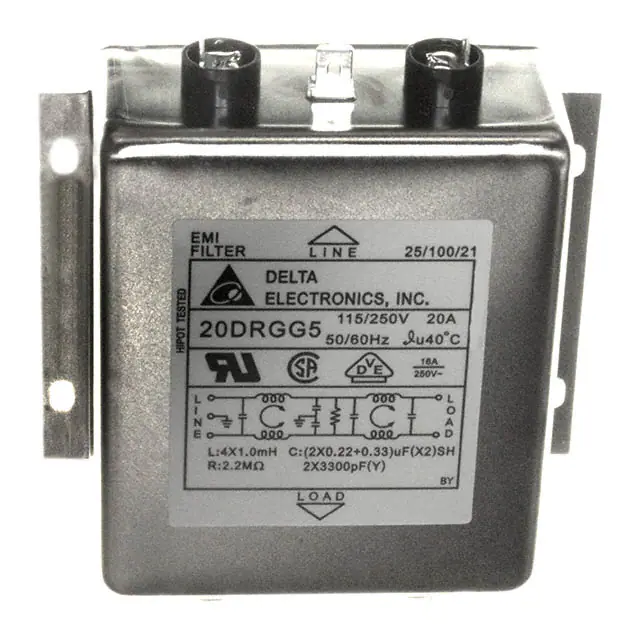

20DRGG5LINE FILTER 115V/250VAC 20A CHAS |
3,346 |
|
Datasheet | DR | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1mH |
|
|
06DRPS4(D)LINE FILTER 250VAC 6A CHASS MNT |
3,548 |
|
Datasheet | DRP | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 4mH |
