Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

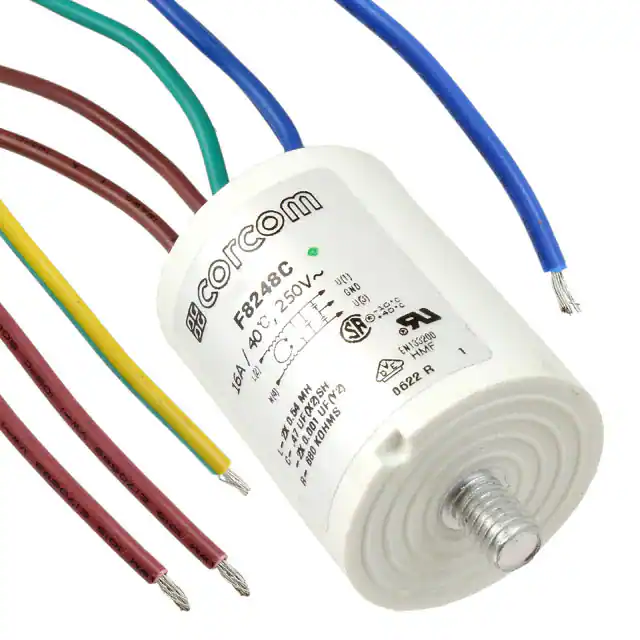

7-6609089-9LINE FILTER 250VAC 16A CHASS MNT |
180 |
|
Datasheet | WG | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Threaded Post (M8), Wire Leads | 540µH |
|
3EH1LINE FILTER 250VAC 3A CHASS MNT |
305 |
|
Datasheet | H | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1mH |
|

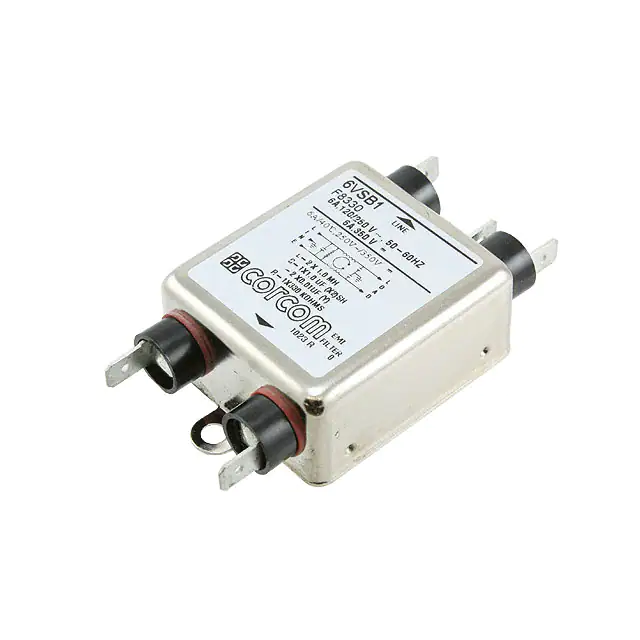

1-1609034-2LINE FILTER 250VAC/VDC 6A CHASS |
877 |
|
Datasheet | SB | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1mH |
|
2VK1LINE FILTER 250VAC 2A CHASS MNT |
482 |
|
Datasheet | K | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 2 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 539µH |
|
1VB1LINE FILTER 250VAC 1A CHASS MNT |
166 |
|
Datasheet | B | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 1 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.86mH |
|
|
6609012-3LINE FILTER 250VAC 6A CHASS MNT |
150 |
|
Datasheet | H | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 465µH |
|
6609064-4LINE FILTER 250VAC 10A TH |
676 |
|
Datasheet | EOP | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Through Hole | PC Pins | - |
|
6609064-1LINE FILTER 250VAC 1A TH |
150 |
|
Datasheet | EOP | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 1 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Through Hole | PC Pins | - |
|
10VB6LINE FILTER 250VAC 10A CHASS MNT |
277 |
|
Datasheet | B | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Threaded Post (8-32) | 495µH |
|
1-6609028-7LINE FILTER 250VAC 20A CHASS MNT |
260 |
|
Datasheet | K | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 440µH |
