Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20VT1LINE FILTER 250VAC 20A CHASS MNT |
1,028 |
|
Datasheet | T | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | - |
|
20EQ1LINE FILTER 250VAC 20A CHASS MNT |
810 |
|
Datasheet | Q | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 6mH |
|
10VN1LINE FILTER 250VAC 10A CHASS MNT |
2,572 |
|
Datasheet | N | Bulk | Last Time Buy | Single Phase | Three Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 7.83mH |
|
1609042-6LINE FILTER 120V/250VAC 60A CHAS |
3,187 |
|
Datasheet | S | Box | Active | Single Phase | Two Stage | - | 120V, 250V | - | - | 60 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Threaded Post (1/4-20) | 270µH |
|
6609069-4LINE FILTER 250VAC 25A CHASS MNT |
3,896 |
|
Datasheet | FC | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 25 A | 50/60Hz | Inverters, Power Drive Systems | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | 4.9mH |
|

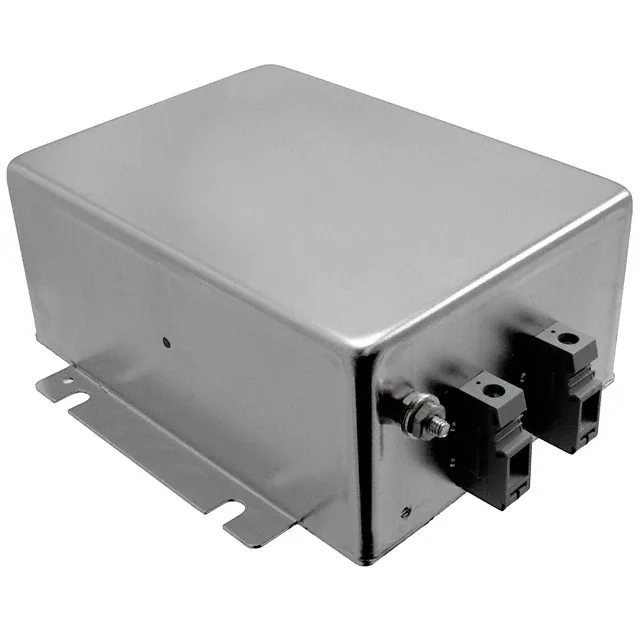

36FC10LINE FILTER 250VAC 36A CHASS MNT |
4,007 |
|
Datasheet | FC | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 36 A | 50/60Hz | Inverters, Power Drive Systems | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|

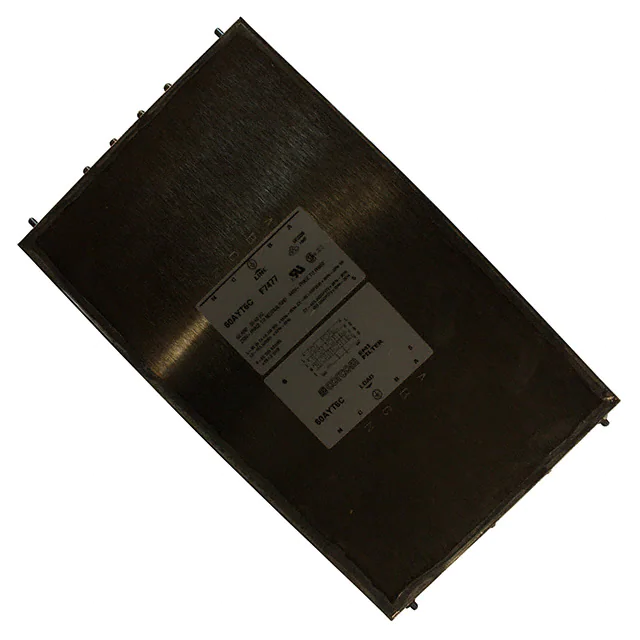

60AYT6CLINE FILTER 60A CHASSIS MOUNT |
1,788 |
|
Datasheet | A | Bulk | Active | Three Phase (Wye) | Two Stage | - | - | 250 V | 440 V | 60 A | 50/60Hz | General Purpose | CSA, UL | -10°C ~ 40°C | Chassis Mount | Threaded Post (1/4-20) | 1.48mH |
|

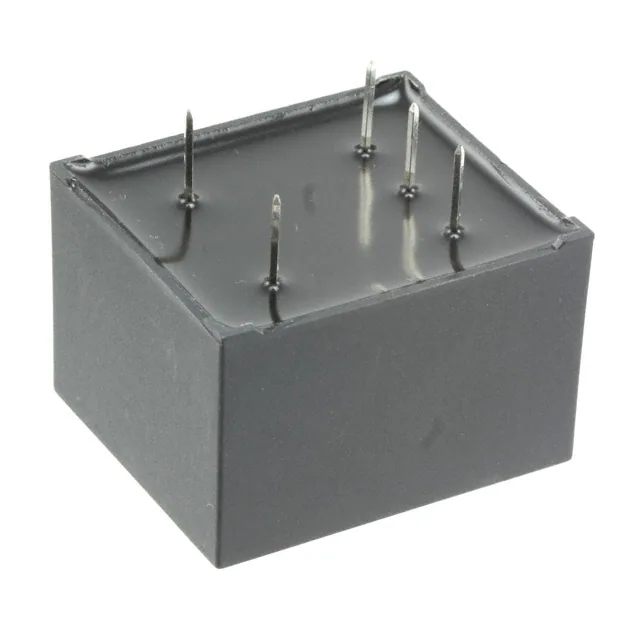

6609065-3LINE FILTER 250VAC 6A TH |
2,152 |
|
Datasheet | EDP | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Through Hole | PC Pins | - |
|

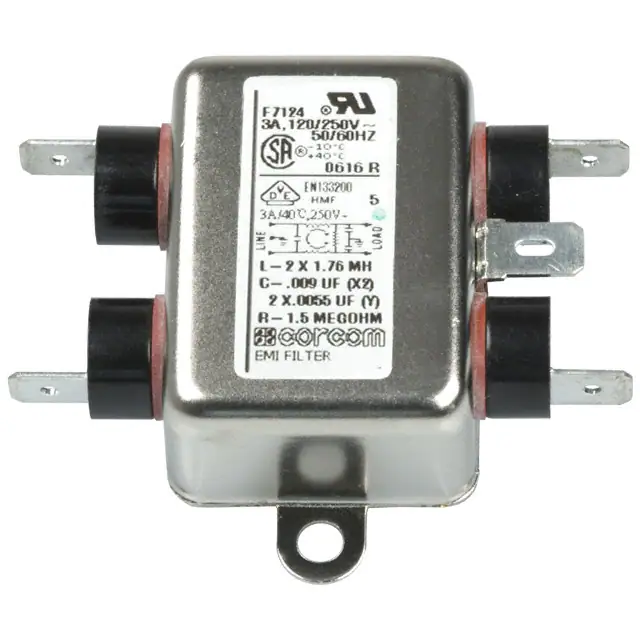

3VB1LINE FILTER 250VAC 3A CHASS MNT |
107 |
|
Datasheet | B | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.76mH |
|
6609075-8LINE FILTER 125VDC 10A PANEL MNT |
837 |
|
Datasheet | - | Bulk | Active | Single Phase | Single Stage | 125V | - | - | - | 10 A | - | General Purpose | CSA, UL, VDE | -10°C ~ 55°C | Panel Mount | Quick Connect | 100µH |
