Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

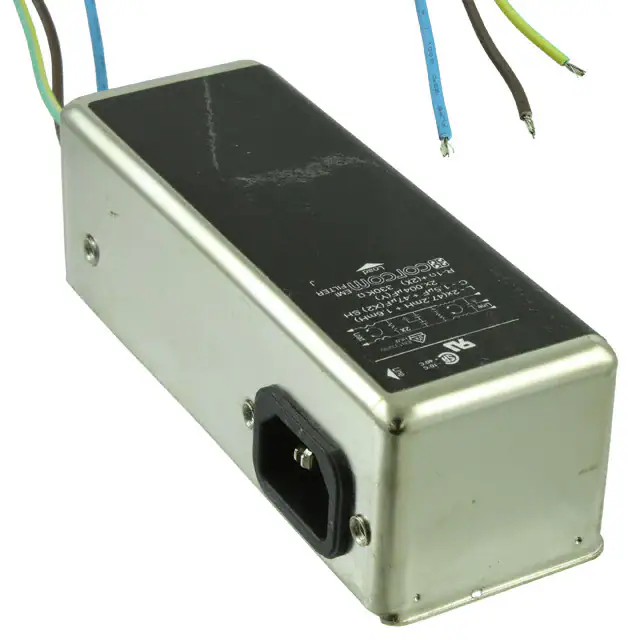

3EQ8LINE FILTER 250VAC 3A CHASS MNT |
1,015 |
|
Datasheet | Q | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | IEC 320-C14, Wire Leads | - |
|
2-1609034-1LINE FILTER 250VAC/VDC 30A CHASS |
1,587 |
|
Datasheet | SB | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 30 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Threaded Post (8-32) | 900µH |
|

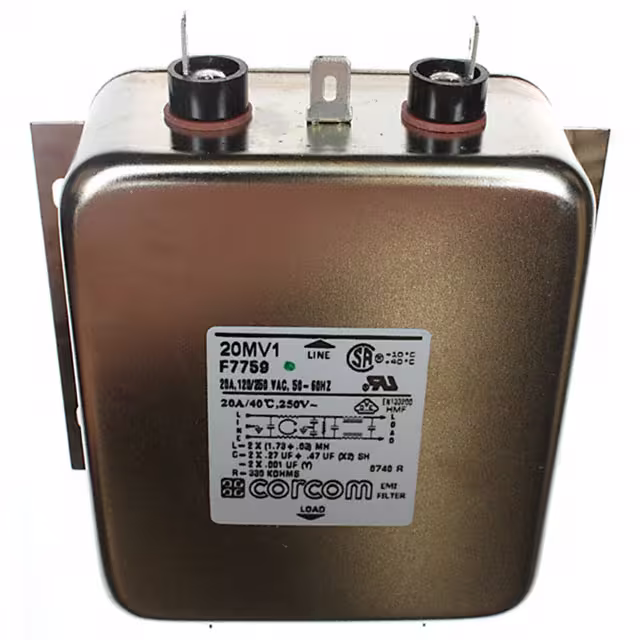

20MV1LINE FILTER 250VAC 20A CHASS MNT |
430 |
|
Datasheet | MV | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | - |
|
15ET1LINE FILTER 250VAC 15A CHASS MNT |
313 |
|
Datasheet | T | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 15 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 5.07mH |
|
6EHQ1LINE FILTER 250VAC 6A CHASS MNT |
3,540 |
|
Datasheet | HQ, Corcom | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 6 A | 50/60Hz | Medical | CSA, UL, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | - |
|
10KEBS1AFPDDMLINE FILTER 440VAC 10A CHASS MNT |
2,395 |
|
Datasheet | - | Box | Active | Three Phase (Delta) | Single Stage | - | 440V | - | - | 10 A | 50 ~ 60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
10KEBS1BFPDDMLINE FILTER 520VAC 10A CHASS MNT |
182 |
|
Datasheet | KEP | Box | Active | Three Phase (Delta) | Single Stage | - | 520V | - | - | 10 A | 50 ~ 60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Threaded Post (M10) | - |
|
12FC10LINE FILTER 250VAC 12A CHASS MNT |
105 |
|
Datasheet | FC | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 12 A | 50/60Hz | Inverters, Power Drive Systems | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
25AYA6ALINE FILTER 25A CHASSIS MOUNT |
4,469 |
|
Datasheet | AYA | Bulk | Active | Three Phase (Wye) | Single Stage | - | - | 250 V | 440 V | 25 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Threaded Post (8-32) | - |
|

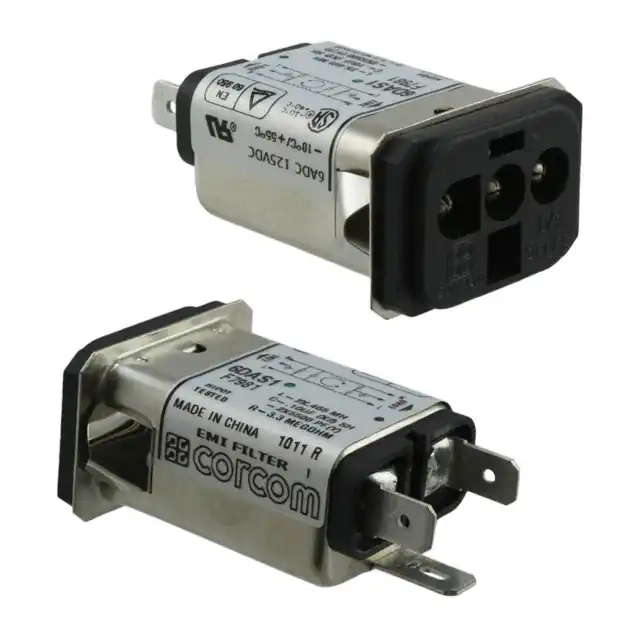

2-6609075-1LINE FILTER 125VDC 6A PANEL MNT |
283 |
|
Datasheet | DA, Corcom | Bulk | Active | Single Phase | Single Stage | 125V | - | - | - | 6 A | - | General Purpose | CSA, TUV, UL | -10°C ~ 40°C | Panel Mount | Quick Connect | 465µH |
