Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-1609037-1LINE FILTER 250VAC 15A CHASS MNT |
330 |
|
Datasheet | HZ | Bulk | Last Time Buy | Single Phase | Single Stage | - | 250V | - | - | 15 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 5.04mH |
|
1-6609036-6LINE FILTER 250VAC 40A CHASS MNT |
3,404 |
|
Datasheet | SK | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 40 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Threaded Post (10-32) | 2.3mH |
|
20VS1LINE FILTER 120V/250VAC 20A CHAS |
218 |
|
Datasheet | S | Bulk | Active | Single Phase | Two Stage | - | 120V, 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 960µH |
|

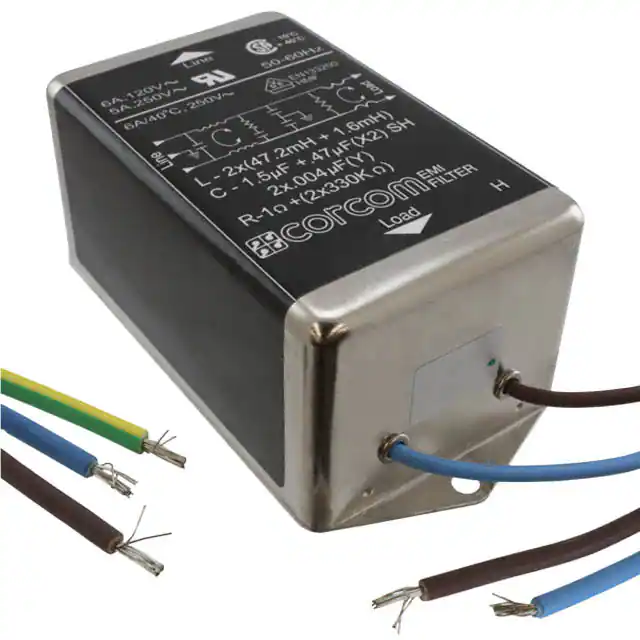

6EQ3LINE FILTER 250VAC 6A CHASS MNT |
286 |
|
Datasheet | Q | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Wire Leads | 48.8mH |
|
|
20VW1LINE FILTER 250VAC 20A CHASS MNT |
3,177 |
|
Datasheet | W | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.76mH |
|
6609047-3LINE FILTER 250VAC 15A CHASS MNT |
169 |
|
Datasheet | T | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 15 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 5.07mH |
|

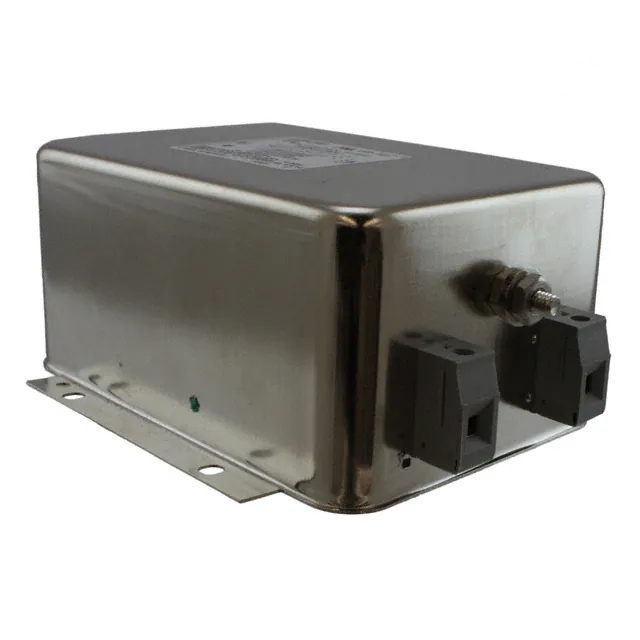

16FC10LINE FILTER 250VAC 16A CHASS MNT |
158 |
|
Datasheet | FC | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 16 A | 50/60Hz | Inverters, Power Drive Systems | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
30BCF10RLINE FILTER 30A CHASSIS MOUNT |
1,657 |
|
Datasheet | BCFXR | Bulk | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 30 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | 1.6mH |
|

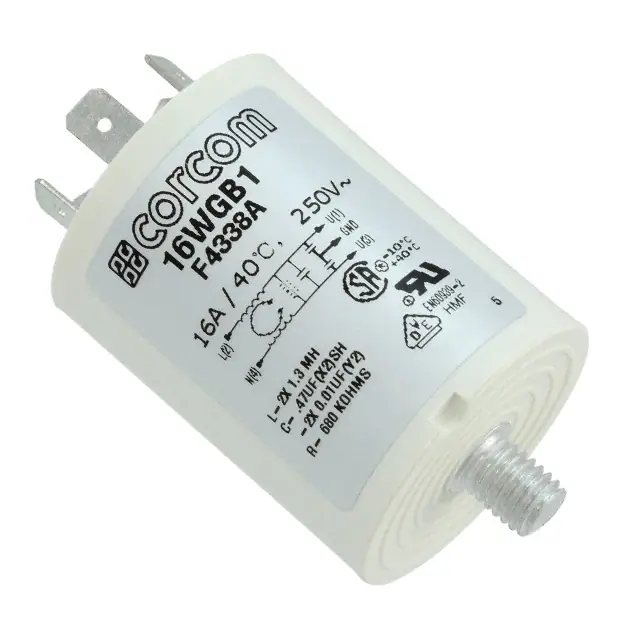

4-6609089-0LINE FILTER 250VAC 16A CHASS MNT |
205 |
|
Datasheet | WG | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect, Threaded Post (M8) | 1.3mH |
|
4-6609089-1LINE FILTER 250VAC 16A CHASS MNT |
273 |
|
Datasheet | WG | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect, Threaded Post (M8) | 2.1mH |
