Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
125131011103LED BASE PANEL OIL TIGHT T-3 1/4 |
2,531 |
|
Datasheet | 125 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
5563504304FLED PNL MT 1" 24V WT DOME RED |
3,522 |
|
Datasheet | 556 | Bulk | Active | LED | Red | - | - | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561704304FLED PNL MT 1" 24V WT FLAT YLW |
3,931 |
|
Datasheet | 556 | Bulk | Active | LED | Yellow | - | - | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561605304FLED PNL MT 1" 125VAC WT FLAT GRN |
3,961 |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | AC | 125V | 9.5mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

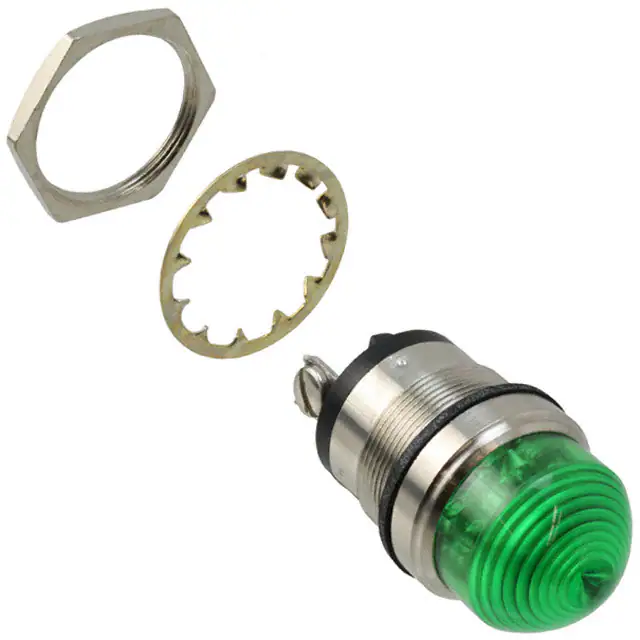

5563605304FLED PNL MT 1" 125VAC WT DOME GRN |
1,555 |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | AC | 125V | 9.5mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

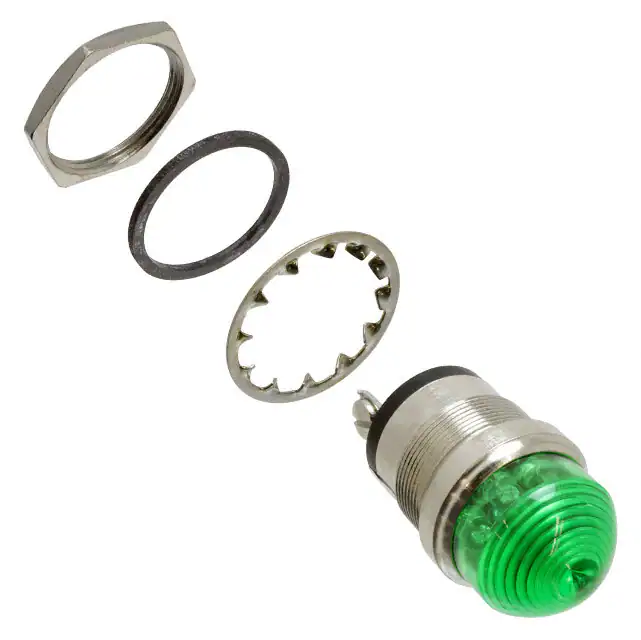

5563604304FLED PNL MT 1" 24V WT DOME GRN |
2,891 |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | DC | 24V | 32mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561504324FLED 1" FLAT RED PMI 24V C1D2 |
4,792 |
|
Datasheet | 556 | Bulk | Active | LED | Red | - | - | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561604324FLED 1" FLAT GRN LED PMI 24V C1D2 |
2,287 |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | DC | 24V | 32mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5580501027FLED PMI SNAP-IN GREEN PVC FREE |
4,979 |
|
Datasheet | 558 | Bulk | Active | LED | Green | Colorless | Clear | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 70mcd | 565nm | 45° | Wire Leads - 14" (355.60mm) | - | - |
|
559-8120-007FRECT PMI IND, R/G, 14" LEADS |
2,602 |
|
Datasheet | 559 | Bag | Active | LED | Green, Red-Orange | - | - | DC | 2.1V | 20mA | Rectangle | 0.22" x 0.14" (5.49mm x 3.53mm) | 3.99mm x 2.00mm | Rectangle with Flat Top | 40mcd Green, 90mcd Red-Orange | 565nm Green, 630nm Red-Orange | 140° | Wire Leads - 14" (355.60mm) | - | - |
