Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
556-3684-304FLED Panel Mount Indicators Dome |
1,281 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
804-0334-500PRESS TO TEST IND. |
4,828 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
125-5863-11-163MIN. OIL TIGHT PANEL IND. |
2,825 |
|
Datasheet | 125 | Box | Active | Neon | - | - | - | - | - | - | Round | 0.69" (17.46mm) | - | Round with Flat Top | - | - | - | Quick Connect | - | - |
|
804-0332-500PRESS TO TEST IND. |
1,311 |
|
- |
804 | Box | Active | LED | Green | - | - | - | - | - | Round | 0.63" (15.88mm) | - | - | - | - | - | - | - | - |
|
609-2212-140F9MM GREEN LED PMI 24V |
2,591 |
|
Datasheet | 609 | Bulk | Active | LED | Green | - | - | DC | 24V | 15mA | Round | 0.37" (9.50mm) | 6.00mm Dia | Round with Domed Top | 115mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|
5593501007FLED SNAP-IN PANEL 5MM RD/GRN |
3,016 |
|
Datasheet | 559 | Bulk | Active | LED | Green, Red | - | Diffused | Vf (Typ), If (Max) | 2.3V Green, 2.1V Red | 30mA Green, 30mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd Green, 5mcd Red | 565nm Green, 635nm Red | 65° | Wire Leads - 14" (355.60mm) | - | - |
|
6061415110FLED PNL IND 6MM R,G 3V PROTRUD |
1,671 |
|
Datasheet | 606 | Bulk | Active | LED | Green, Red | - | Clear | DC | 3V Green, 3V Red | 10mA Green, 10mA Red | Round | 0.24" (6.20mm) | - | Round with Domed Top | 4000mcd Green, 1200mcd Red | 517nm Green, 622nm Red | 120° | Wire Leads - 6" (152.40mm) | - | - |
|

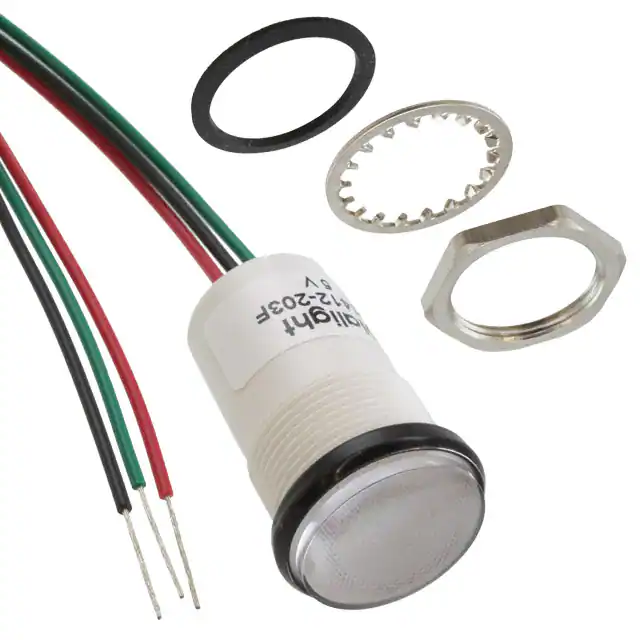

5571412203FLED PNL MT 11/16" 5V WT RED/GRN |
4,014 |
|
Datasheet | 557 | Bulk | Active | LED | Green, Red | - | - | DC | 5V Green, 5V Red | 16mA Green, 70mA Red | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|

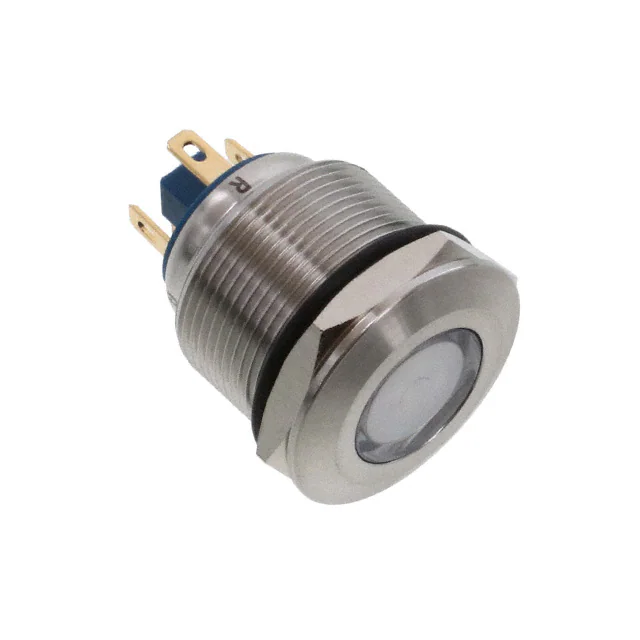

6211121304F22MM FLTPMI RGB 3VDC W/TERM |
2,792 |
|
Datasheet | 621 | Bag | Active | LED | Red, Green, Blue (RGB) | - | Diffused | DC | 3V | 15mA Red, 15mA Green, 15mA Blue | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 200mcd Red, 250mcd Green, 300mcd Blue | - | - | Solder Lug | IP66/IP67, NEMA 4X | - |
|
5563505304FLED PNL MT 1" 125VAC WT DOME RED |
4,359 |
|
Datasheet | 556 | Bulk | Active | LED | Red | - | - | AC | 125V | 10.5mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
