Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5590103001FLED PANEL RED DIFF 12V SNAP-IN |
3,641 |
|
Datasheet | 559 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 15mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 635nm | 60° | PC Pin | - | - |
|
5580202001FLED PANEL IND GRN DIFF SNAP-IN |
1,296 |
|
Datasheet | 558 | Bulk | Active | LED | Green | - | - | DC | 5V | 10mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 19mcd | 565nm | 60° | Wire Wrap | - | - |
|
5580101007FIND SNAP-IN PANEL MNT 650NM RED |
4,278 |
|
Datasheet | 558 | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 650nm | 40° | Wire Leads - 14" (355.60mm) | - | - |
|
5586003027FLED PMI SNAP-IN BLUE 468NM |
3,827 |
|
Datasheet | 558 | Bulk | Active | LED | Blue | Colorless | Clear | Vf (Typ), If (Max) | 3.3V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 520mcd | 468nm | 45° | Wire Leads - 14" (355.60mm) | - | - |
|
5580202003FLED PANEL IND GRN DIFF SNAP-IN |
2,029 |
|
Datasheet | 558 | Bulk | Active | LED | Green | - | - | DC | 5V | 10mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 19mcd | 565nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
5596001027FLED PMI SNAP-IN BLUE PVC FREE |
1,242 |
|
Datasheet | 559 | Bulk | Active | LED | Blue | Colorless | Clear | Vf (Typ), If (Max) | 3.6V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 1500mcd | 470nm | 30° | Wire Leads - 14" (355.60mm) | - | - |
|

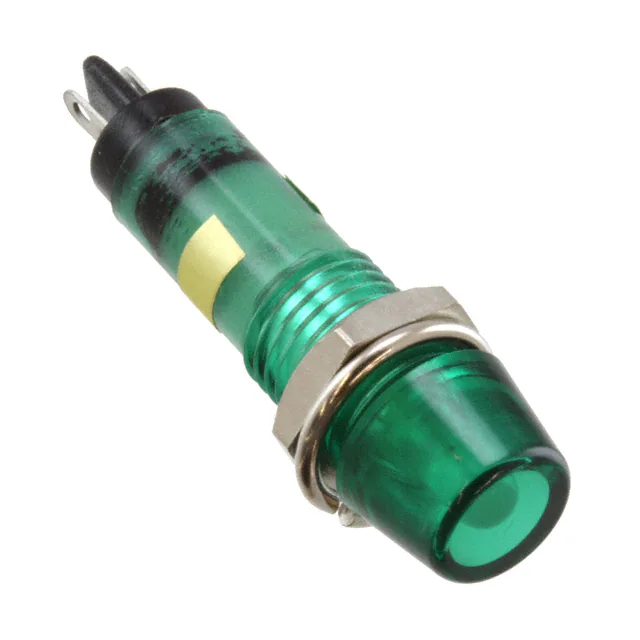

6073232120FLED PNL IND 7MM GRN INTERNL |
4,077 |
|
Datasheet | 607 | Bulk | Active | LED | Green | - | - | DC | 6V | 15mA | Round | 0.28" (7.20mm) | - | Round with Flat Top | 45mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|
5593601007FLED SNAP-IN PANEL 5MM YW/GRN |
2,718 |
|
Datasheet | 559 | Bulk | Active | LED | Green, Yellow | - | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Yellow | 30mA Green, 30mA Yellow | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 13.5mcd Green, 9mcd Yellow | 568nm Green, 590nm Yellow | 65° | Wire Leads - 14" (355.60mm) | - | - |
|
6092212140FLED PNL MT 9MM 24V CHROME GREEN |
1,225 |
|
Datasheet | 609 | Bag | Active | LED | Green | - | - | DC | 24V | 15mA | Round | 0.37" (9.40mm) | - | Round with Flat Top | 110mcd | - | - | - | IP66, NEMA 4X | - |
|
6091222130FLED PNL MT 9MM 12V BLACK GREEN |
4,818 |
|
Datasheet | 609 | Bag | Active | LED | Green | - | - | DC | 12V | 15mA | Round | 0.37" (9.40mm) | 6.10mm Dia | Round with Domed Top | 110mcd | - | - | - | IP66, NEMA 4X | - |
