Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
507-3918-1472-600FINCAND. DATALITE |
1,444 |
|
- |
507 | Box | Active | Incandescent | Green | - | - | Vf (Typ), If (Max) | 28V | 40mA | Round | Cartridge-Holder Required | 7.14mm Dia | Round with Flat Top | - | - | - | PC Pin - 0.203" (5.16mm) | - | - |
|

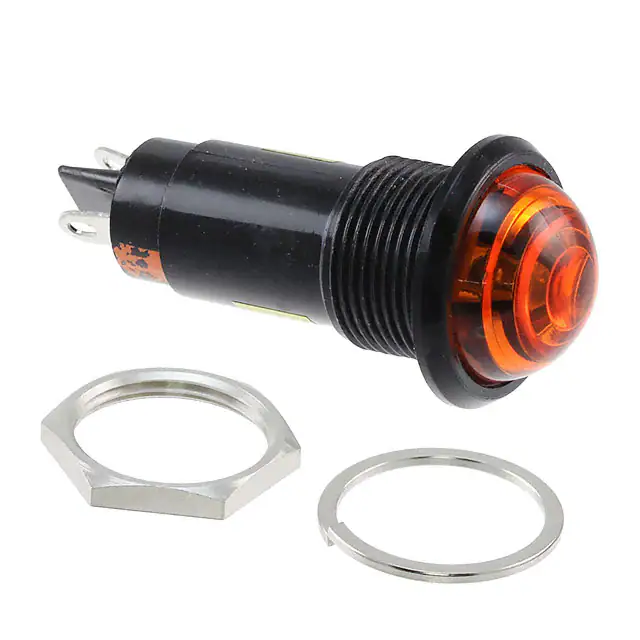

6861332123F16MM HO/O PMI-6VDC |
2,959 |
|
- |
686 | Bag | Obsolete | LED | Yellow | - | - | DC | 6V | 30mA | Round | 0.65" (16.51mm) | - | - | 500mcd | - | - | Solder Lug | - | - |
|
507-3911-1471-600FINCAND. DATALITE |
3,177 |
|
Datasheet | 507 | Box | Active | Incandescent | Red | Red | - | - | 10V | - | Round | Cartridge-Holder Required | - | Round with Flat Top | - | - | - | PC Pin | - | - |
|
507-3917-1473-600FINCAND. DATALITE |
4,116 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
507-4960-3733-500FLED DATALITE |
3,167 |
|
- |
507 | Box | Active | LED | Yellow | - | Fresnel | DC | 14V | - | Round | Cartridge-Holder Required | 7.16mm Dia | Round with Domed Top | - | - | - | PC Pin - 0.203" (5.16mm) | - | - |
|
6861232132FLED PANEL INDCATOR GREEN 12V |
1,388 |
|
- |
686 | Bulk | Obsolete | LED | Green | - | - | DC | 12V | 30mA | Round | 0.65" (16.51mm) | 18.00mm Dia | Round with Domed Top | 25000mcd | 525nm | 30° | Solder Lug | - | - |
|
249-8068-3733-504FLED PANEL IND. |
4,244 |
|
- |
249 | Box | Active | LED | Yellow | Yellow | - | DC | 5V | 20mA | Round | 0.38" (9.53mm) | - | Round with Domed Top | 150mcd | - | - | Wire Wrap | - | - |
|
507-4960-3333-500FLED DATALITE |
4,555 |
|
- |
507 | Box | Active | LED | Yellow | - | Fresnel | DC | 14V | - | Round | Cartridge-Holder Required | 6.99mm Dia | Round with Flat Top | - | - | - | PC Pin - 0.203" (5.16mm) | - | - |
|
6861232122F16MM HG/G PMI-6VDC |
3,285 |
|
- |
686 | Bag | Obsolete | LED | Green | - | - | DC | 6V | 30mA | Round | 0.65" (16.51mm) | - | - | 8150mcd | - | - | Solder Lug | - | - |
|
|
6772412334FLED PANEL INDCATOR BLUE 12V |
1,661 |
|
Datasheet | 677 | Bulk | Active | LED | Blue | - | - | DC | 12V | 30mA | Round | 0.28" (7.20mm) | - | - | 3000mcd | 470nm | 25° | Solder Lug | IP66, NEMA 4X | - |
