Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
556-18B4-304F1" FLAT B LED 24VDC, UV RATED |
1,336 |
|
Datasheet | 556 | Bulk | Active | LED | Blue | - | - | DC | 24V | 32mA | Round | 1.12" (28.40mm) | - | Round with Flat Top | 13000mcd | - | - | Wire Leads - 8" (203.20mm) | IP66, NEMA 4X | - |
|
|
556-16B4-304F1" FLAT G LED 24VDC, UV RATED |
4,135 |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | DC | 24V | 32mA | Round | 1.12" (28.40mm) | - | Round with Flat Top | 41500mcd | - | - | Wire Leads - 8" (203.20mm) | IP66, NEMA 4X | - |
|

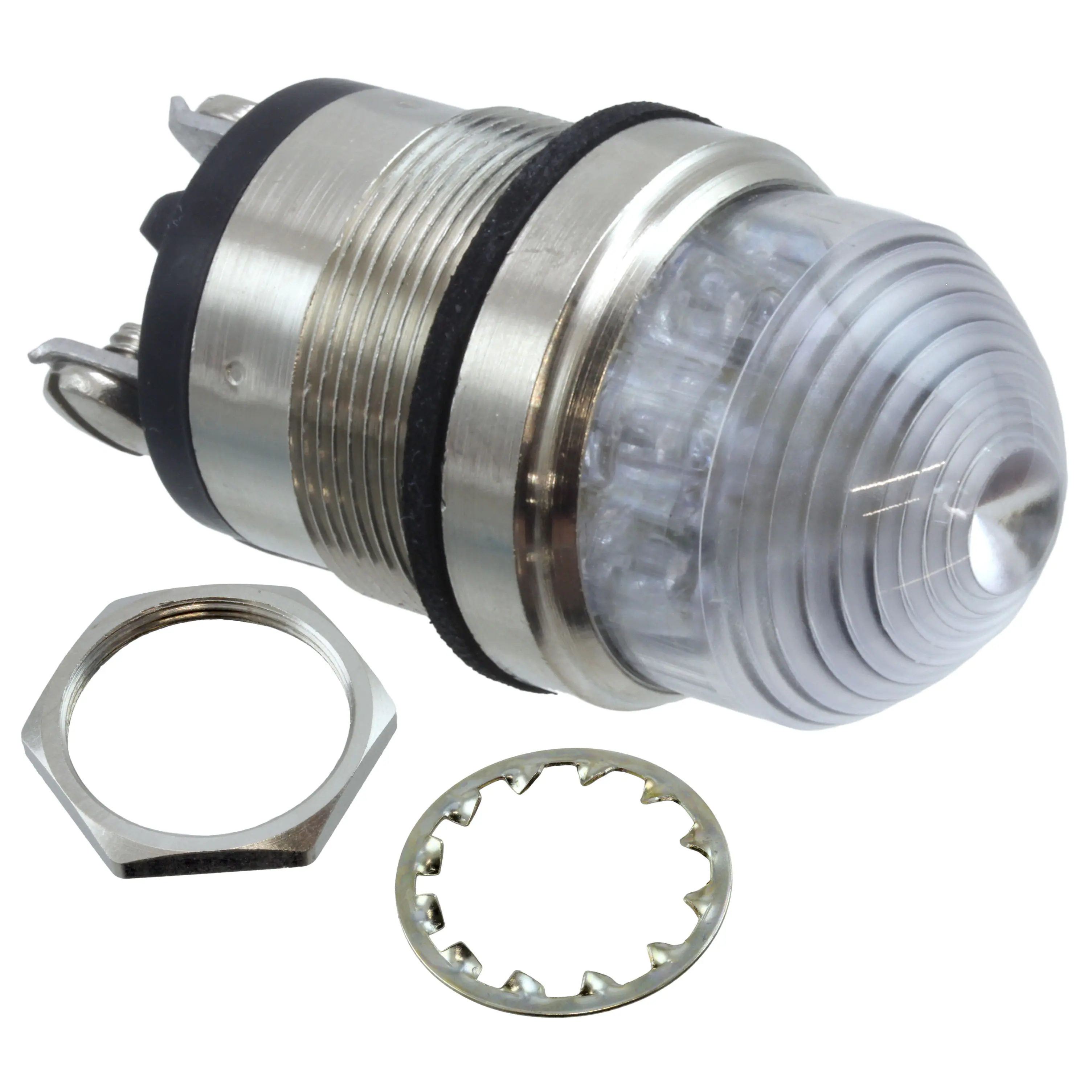

5563803304FLED PNL MT 1" 12V WT DOME BLUE |
1,730 |
|
Datasheet | 556 | Bulk | Active | LED | Blue | - | - | DC | 12V | 60mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563005304FLED PANEL MT 1" 125V ROUND WHT |
4,382 |
|
Datasheet | 556 | Bulk | Active | LED | White | - | - | AC | 125V | 9mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

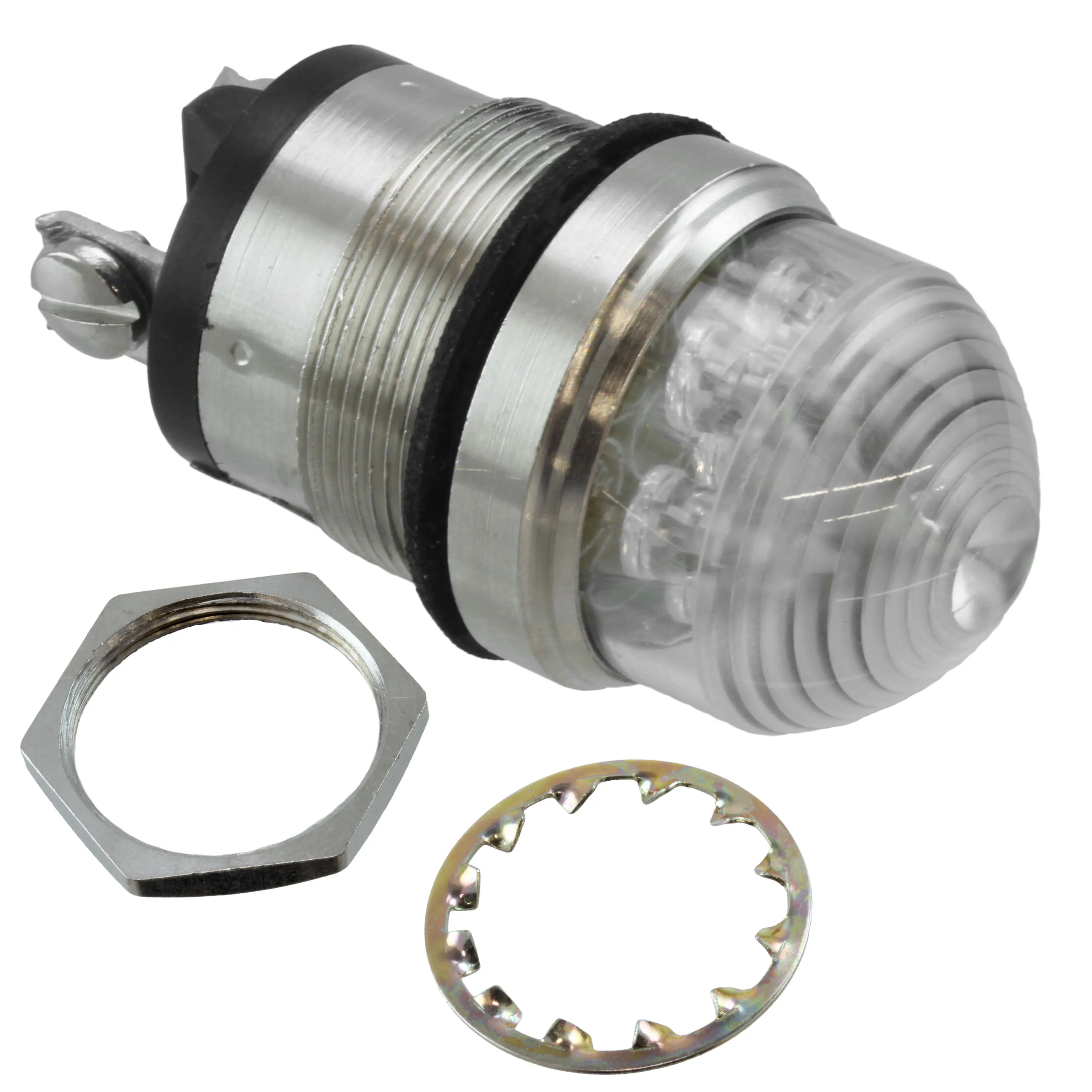

5563003304FLED PNL MT 1" 12V WT DOME WHT |
1,599 |
|
Datasheet | 556 | Bulk | Active | LED | White | - | - | DC | 12V | - | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

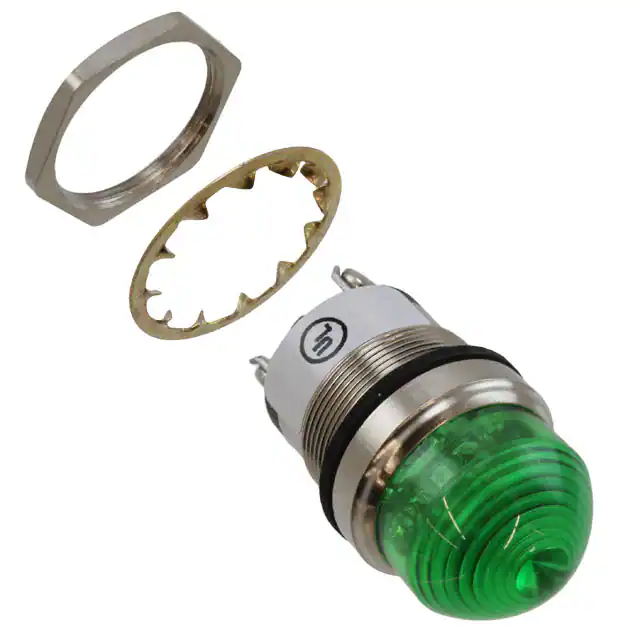

5563603324FLED 1" DOME GRN PMI 12V C1D2 |
2,507 |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | DC | 12V | - | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

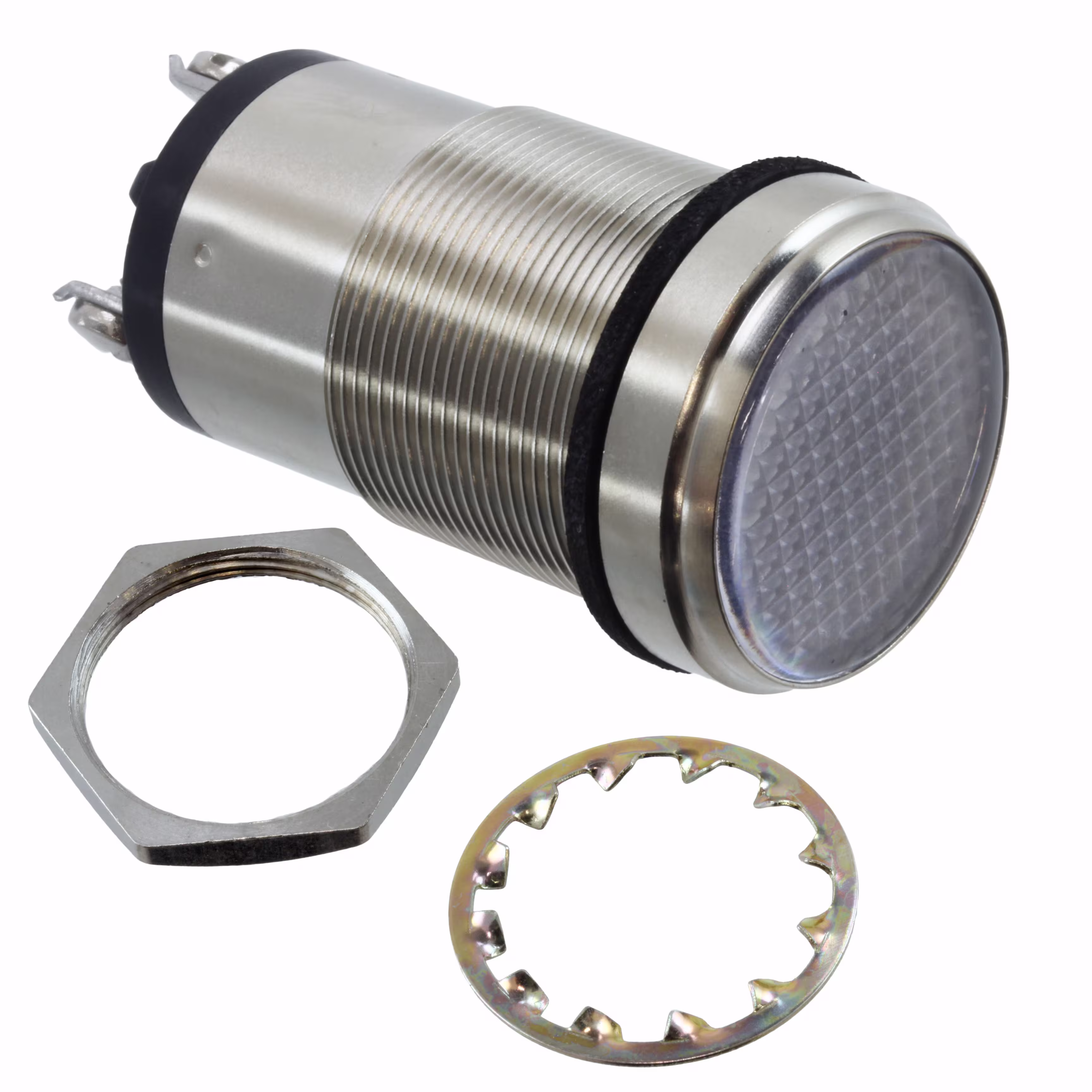

5561805304FLED PNL MT 1" 125VAC WT FLAT BLU |
3,534 |
|
Datasheet | 556 | Bulk | Active | LED | Blue | - | - | AC | 125V | 9.5mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

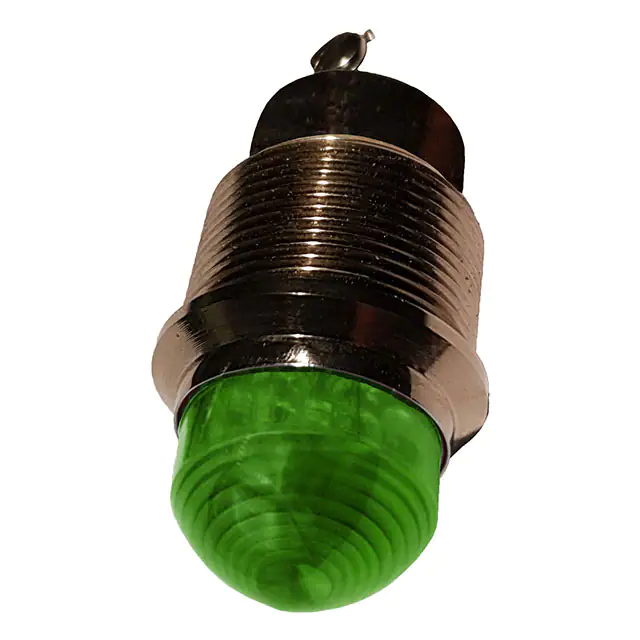

6303605304F30MM DOM GN 120VAC W/TERM |
2,213 |
|
Datasheet | 630 | Bag | Active | LED | Green | - | - | AC | 120V | 9.5mA | Round | 1.18" (30.00mm) | 24.89mm Dia | Round with Domed Top | 700mcd | - | - | Screw Terminal | - | - |
|
6301605304F30MM FLT GN 120VAC W/TERM |
2,366 |
|
Datasheet | 630 | Bag | Active | LED | Green | - | - | AC | 120V | 9.5mA | Round | 1.18" (30.00mm) | - | Round with Flat Top | 1800mcd | - | - | Screw Terminal | - | - |
|
5563006304FLED PANEL MT 1" 72V WT DOME WHT |
1,237 |
|
Datasheet | 556 | Bulk | Active | LED | White | - | - | DC | 72V | - | Round | 1.12" (28.45mm) | - | - | - | - | - | Screw Terminal | - | - |
