Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
556-17B4-304F1" FLAT Y LED 24VDC, UV RATED |
3,463 |
|
Datasheet | 556 | Bulk | Active | LED | Yellow | - | - | DC | 24V | 46mA | Round | 1.12" (28.40mm) | - | Round with Flat Top | 13500mcd | - | - | Wire Leads - 8" (203.20mm) | IP66, NEMA 4X | - |
|

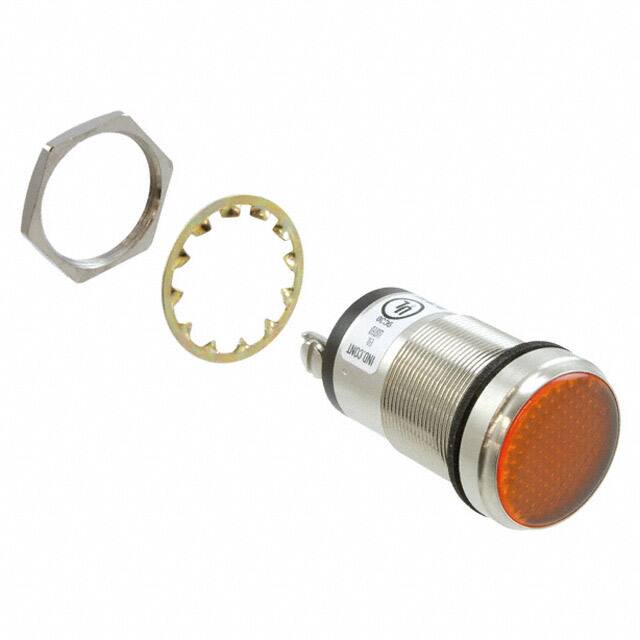

5563509304FLED PNL MT 1" 230VAC WT DOME RED |
2,929 |
|
Datasheet | 556 | Bulk | Active | LED | Red | - | - | AC | 230V | 7mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
556370A304F1"DOME YLW LED PMI CONST INT |
4,793 |
|
Datasheet | 556 | Bag | Active | LED | Yellow | Yellow | Clear | DC | 18V ~ 48V | 8.9mA | Round | 1.00" (25.4mm) | - | Round with Domed Top | 310mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

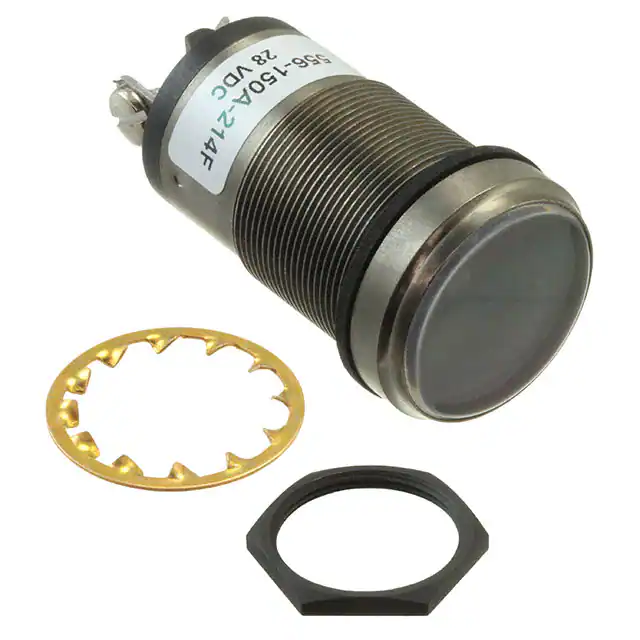

556150A214F1"FLAT RED LED PMI CONST INT |
1,393 |
|
Datasheet | 556 | Bag | Active | LED | Red | Red | Clear | DC | 18V ~ 48V | 8.2mA | Round | 1.00" (25.4mm) | - | Round with Flat Top | 400mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561509304FLED PNL MT 1" 230VAC WT FLAT RED |
3,286 |
|
Datasheet | 556 | Bulk | Active | LED | Red | - | - | AC | 230V | 7mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
6301505304F30MM FLT RD 120VAC W/TERM |
1,352 |
|
Datasheet | 630 | Bag | Active | LED | Red | - | - | AC | 120V | 10.5mA | Round | 1.18" (30.00mm) | - | Round with Flat Top | 1200mcd | - | - | Screw Terminal | - | - |
|
6303505304F30MM DOM RD 120VAC W/TERM |
4,357 |
|
Datasheet | 630 | Bag | Active | LED | Red | - | - | AC | 120V | 10.5mA | Round | 1.18" (30.00mm) | 24.89mm Dia | Round with Domed Top | 500mcd | - | - | Screw Terminal | - | - |
|
6303005304F30MM DOM WHITE 120VAC W/TERM |
2,615 |
|
Datasheet | 630 | Bag | Active | LED | White | - | - | AC | 120V | 9.5mA | Round | 1.18" (30.00mm) | 24.89mm Dia | Round with Domed Top | 1800mcd | - | - | Screw Terminal | - | - |
|
|
5561508304FLED PNL MT 1" 37V WT FLAT RED |
4,010 |
|
Datasheet | 556 | Bulk | Active | LED | Red | - | - | DC | 37.5V | 20mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563708304FLED PANEL MT 1" WT DOME YELLOW |
3,154 |
|
Datasheet | 556 | Bulk | Active | LED | Yellow | - | - | DC | 37.5V | 20mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
