Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6221101304F22MM FLTPMI RD 3VDC W/TERM |
166 |
|
Datasheet | 622 | Bag | Active | LED | Red | - | - | DC | 3V | 15mA | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 200mcd | - | - | Screw Terminal | IP66/IP67, NEMA 4X | - |
|
6563352303FLED PNL IND ORG 5V IP67/NEMA 4X |
106 |
|
Datasheet | 656 | Bag | Active | LED | Orange | - | Clear | DC | 5V | 16mA | Round | 0.50" (12.70mm) | 16.50mm Dia | Round with Domed Top | 4400mcd | - | - | Wire Leads - 5.84" (148.21mm) | IP67, NEMA 4X | - |
|
80010300332504INDICATOR PRESS TO TEST |
3,418 |
|
Datasheet | 800 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
5593101001FLED PANEL RED/GRN SNAP-IN STR |
172 |
|
Datasheet | 559 | Bulk | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 1.8V Red | 30mA Green, 40mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 20mcd Green, 60mcd Red | 565nm Green, 660nm Red | 80° | - | - | - |
|
5595501001FLED PANEL RED HIEFF SNAP-IN STR |
1,089 |
|
Datasheet | 559 | Bulk | Active | LED | Red | Colorless | Clear | Vf (Typ), If (Max) | 2.2V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 125mcd | 635nm | 24° | PC Pin | - | - |
|
|
5580201817FLED PANEL INDICATOR SNAP-IN |
800 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

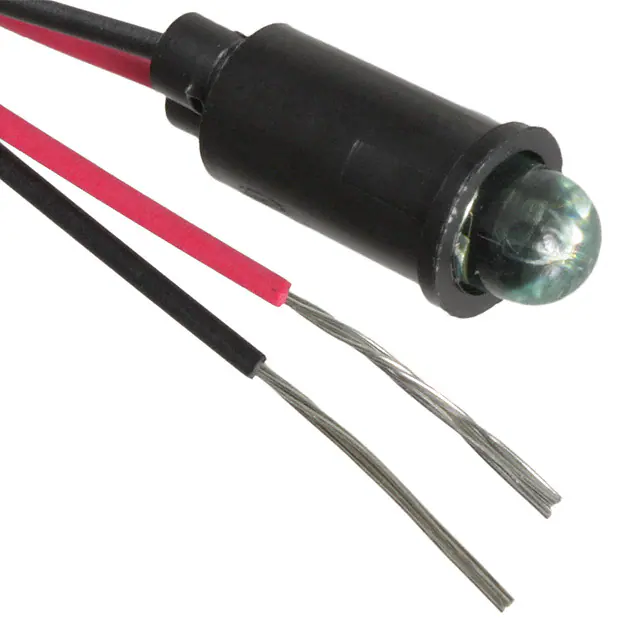

5595601027FLED PMI SNAP-IN GRN PVC FREE |
661 |
|
Datasheet | 559 | Bulk | Active | LED | Green | Colorless | Clear | Vf (Typ), If (Max) | 2.3V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 120mcd | 565nm | 24° | Wire Leads - 14" (355.60mm) | - | - |
|
5581201007FLED PANEL IND YLW DIFF SNAP-IN |
652 |
|
Datasheet | 558 | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 1.9V | 7mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 1.6mcd | 583nm | - | Wire Leads - 14" (355.60mm) | - | - |
|
5595201003FLED SNAP-IN PANEL IND GREEN |
377 |
|
Datasheet | 559 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 20mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 34mcd | 563nm | 50° | Wire Leads - 6" (152.40mm) | - | - |
|
|
5581701007FLED PANEL IND RED TINTED SNAP-IN |
656 |
|
Datasheet | 558 | Bulk | Active | LED | Red | Red | Clear | Vf (Typ), If (Max) | 1.8V | 40mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 170mcd | 660nm | 45° | Wire Leads - 14" (355.60mm) | - | - |
