Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

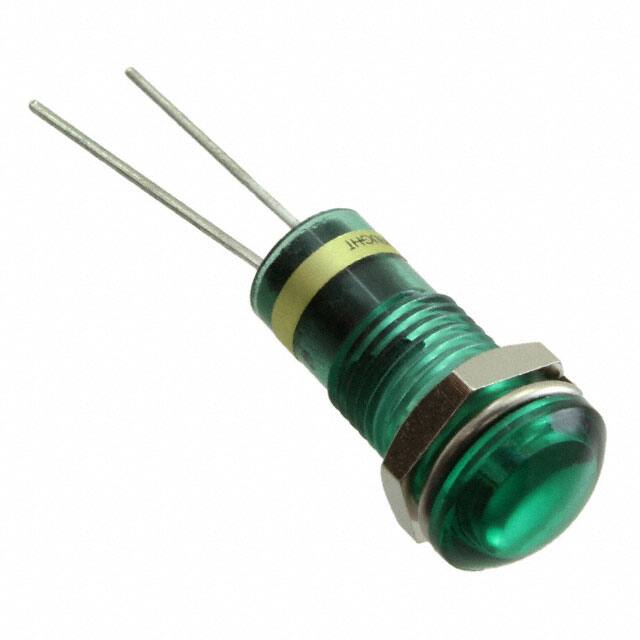

6781231112F8MM HG/G PMI 3.3VFTYP W/ORES |
205 |
|
Datasheet | 678 | Bag | Active | LED | Green | - | - | DC | 3.3V | 30mA | Round | 0.32" (8.13mm) | - | - | 46860mcd | - | 4° | Solder Lug | - | - |
|
6783231112F8MM HG/G PMI 3.3VFTYP W/ORES |
186 |
|
Datasheet | 678 | Bag | Active | LED | Green | - | - | DC | 3.3V | 30mA | Round | 0.32" (8.13mm) | - | - | 30600mcd | - | 20° | Solder Lug | - | - |
|

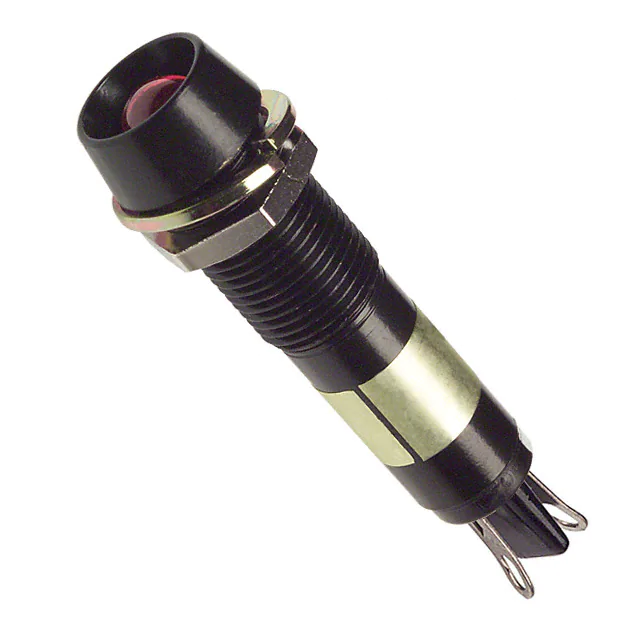

6092122130FLED PNL MT 9MM 12V BLACK RED |
150 |
|
Datasheet | 609 | Bag | Active | LED | Red | - | - | DC | 12V | 15mA | Round | 0.37" (9.40mm) | - | Round with Flat Top | 60mcd | - | - | - | IP66, NEMA 4X | - |
|
6091122120FLED PNL MT 9MM 6V BLACK RED |
109 |
|
Datasheet | 609 | Bag | Active | LED | Red | - | - | DC | 6V | 15mA | Round | 0.37" (9.40mm) | 6.10mm Dia | Round with Domed Top | 60mcd | - | - | - | IP66, NEMA 4X | - |
|
6091312140FLED PNL MT 9MM 24V CHROME YELLOW |
158 |
|
Datasheet | 609 | Bag | Active | LED | Yellow | - | - | DC | 24V | 15mA | Round | 0.37" (9.40mm) | 6.10mm Dia | Round with Domed Top | 90mcd | - | - | - | IP66, NEMA 4X | - |
|
6091122340FLED 9MM PMI R 24V BLK HS W GASKT |
182 |
|
Datasheet | 609 | Bulk | Active | LED | Red | - | - | DC | 24V | 15mA | Round | 0.38" (9.65mm) | 6.00mm Dia | Round with Domed Top | 60mcd | - | - | - | IP66, NEMA 4X | - |
|

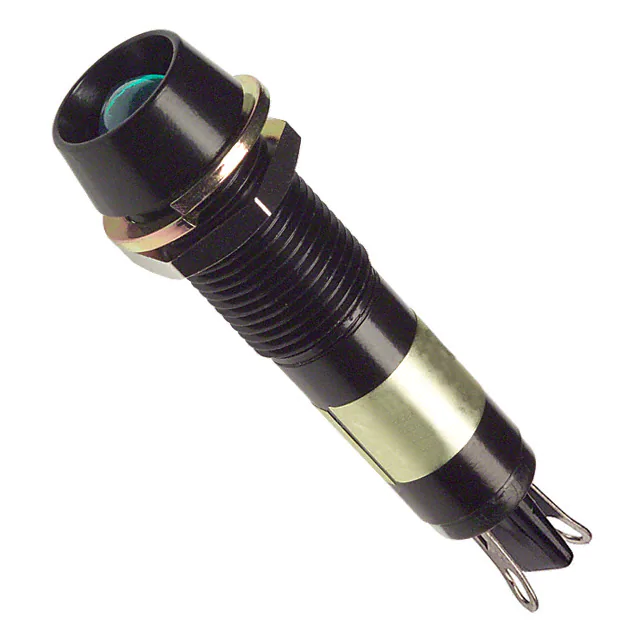

6092222130FLED PNL MT 9MM 12V BLACK GREEN |
139 |
|
Datasheet | 609 | Bag | Active | LED | Green | - | - | DC | 12V | 15mA | Round | 0.37" (9.40mm) | - | Round with Flat Top | 110mcd | - | - | - | IP66, NEMA 4X | - |
|
50739171472600FPANEL INDICATOR INCAND 28V GREEN |
161 |
|
Datasheet | 507 | Bulk | Active | Incandescent | Green | - | - | Vf (Typ), If (Max) | 28V | 40mA | Round | Cartridge-Holder Required | 7.14mm Dia | Round with Flat Top | - | - | - | - | - | - |
|
50739181471600FPANEL INDICATOR INCAND 28V RED |
138 |
|
Datasheet | 507 | Bulk | Active | Incandescent | Red | - | - | Vf (Typ), If (Max) | 28V | 40mA | Round | Cartridge-Holder Required | 7.14mm Dia | Round with Flat Top | - | - | - | - | - | - |
|
6762411110FLED PANEL INDCATOR BLUE 3.3V |
150 |
|
Datasheet | 676 | Bag | Active | LED | Blue | - | - | DC | 3.3V | 20mA | Round | 0.24" (6.20mm) | - | - | 3810mcd | - | - | PC Pin | - | - |
