Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6791222332F9MM HG/G PMI-12VDC W/O-RING |
681 |
|
Datasheet | 679 | Bag | Active | LED | Green | - | - | DC | 12V | 30mA | Round | 0.37" (9.40mm) | 6.00mm Dia | Round with Domed Top | 5870mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|

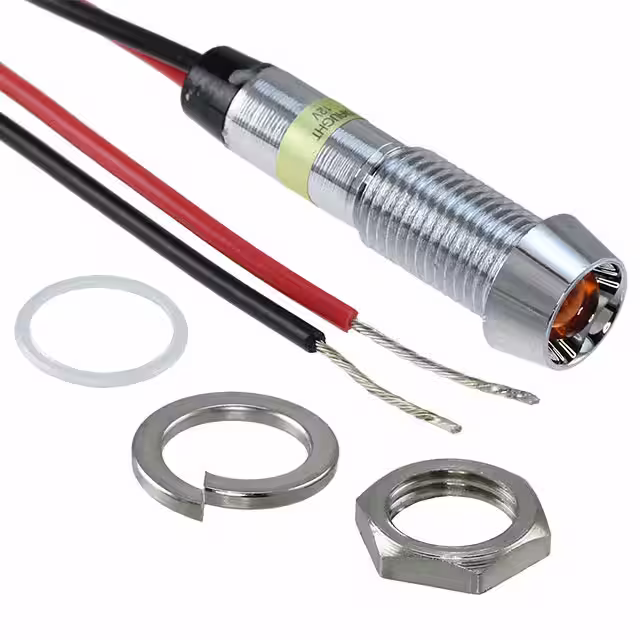

6772315333F7MM HO/O PMI-12VDC W/O-RING |
171 |
|
Datasheet | 677 | Bag | Active | LED | Orange | - | - | DC | 12V | 30mA | Round | 0.28" (7.11mm) | - | - | 600mcd | - | - | Wire Leads - 6" (152.40mm) | IP66, NEMA 4X | - |
|
6773435334F7MM HB/B PMI-12VDC W/O-RING |
155 |
|
Datasheet | 677 | Bag | Active | LED | Blue | - | - | DC | 12V | 30mA | Round | 0.28" (7.11mm) | - | - | 1200mcd | - | - | Wire Leads - 6" (152.40mm) | IP66, NEMA 4X | - |
|
6791112331F9MM HR/R PMI-12VDC W/O-RING |
150 |
|
Datasheet | 679 | Bag | Active | LED | Red | - | - | DC | 12V | 30mA | Round | 0.37" (9.40mm) | 6.00mm Dia | Round with Domed Top | 485mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|
6791115341F9MM HR/R PMI-24VDC W/O-RING |
107 |
|
Datasheet | 679 | Bag | Active | LED | Red | - | - | DC | 24V | 30mA | Round | 0.37" (9.40mm) | 6.00mm Dia | Round with Domed Top | 485mcd | - | - | Wire Leads - 6" (152.40mm) | IP66, NEMA 4X | - |
|
6781115331F8MM HR/R PMI-12VDC W/O-RING |
133 |
|
Datasheet | 678 | Bag | Active | LED | Red | - | - | DC | 12V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 320mcd | - | 20° | Wire Leads - 6" (152.40mm) | - | - |
|

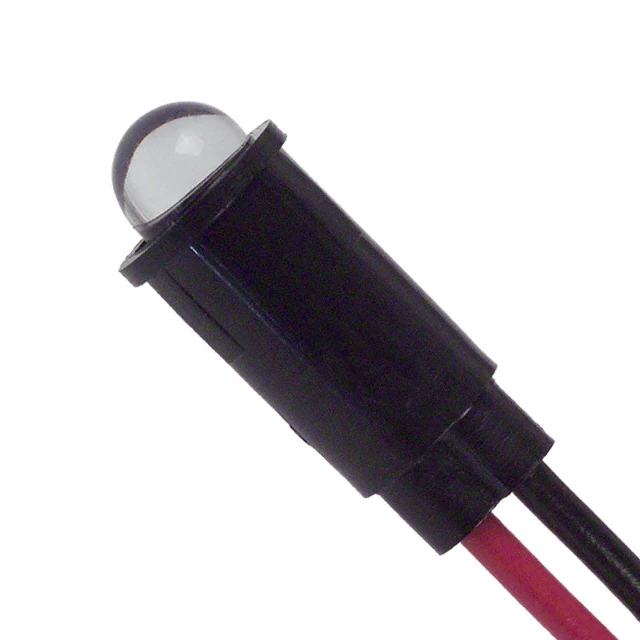

5596001007FLED 5MM BLUE CLR PANEL MOUNT |
130 |
|
Datasheet | 559 | Bulk | Active | LED | Blue | Colorless | Clear | Vf (Typ), If (Max) | 3.6V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 1500mcd | 470nm | 30° | Wire Leads - 14" (355.60mm) | - | - |
|
|
5596201007FLED 5MM GREEN CLR PANEL MOUNT |
159 |
|
Datasheet | 559 | Bulk | Active | LED | Green | Colorless | Clear | Vf (Typ), If (Max) | 3.2V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 5000mcd | 525nm | 30° | Wire Leads - 14" (355.60mm) | - | - |
|
6792222332F9MM HG/G PMI-12VDC W/O-RING |
105 |
|
Datasheet | 679 | Bag | Active | LED | Green | - | - | DC | 12V | 30mA | Round | 0.37" (9.40mm) | - | - | 5870mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|
6771215332F7MM HG/G PMI-12VDC W/O-RING |
159 |
|
Datasheet | 677 | Bag | Active | LED | Green | - | - | DC | 12V | 30mA | Round | 0.28" (7.11mm) | 4.00mm Dia | Round with Domed Top | 4135mcd | - | - | Wire Leads - 6" (152.40mm) | IP66, NEMA 4X | - |
