Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-02435CABLE 5COND 20AWG BLACK SHLD |
3,175 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 20 AWG | 41/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.197" (5.00mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-01639MULTI-PAIR 4COND 28AWG BLK METER |
1,070 |
|
Datasheet | - | Digi-Spool®, Continuous Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.130" (3.30mm) | Foil, Braid | Enter Number of Meters in Order Quantity | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0120" (0.305mm) | High Density Polyethylene (HDPE) | - |
|

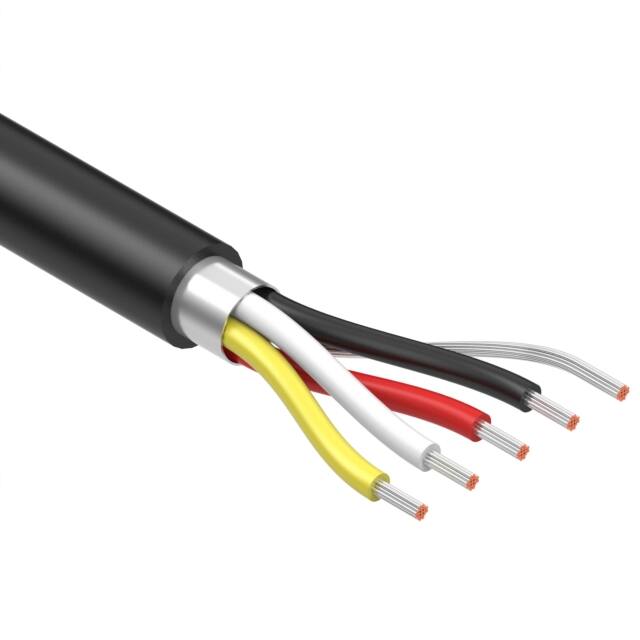

30-01434CBL 4COND 18AWG SHLD MPPE |
2,710 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 18 AWG | 41/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.244" (6.20mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0343" (0.870mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-01929CABLE 5COND 28AWG BLACK 1M |
1,420 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 5 | 28 AWG | 19/40 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.134" (3.40mm) | - | 3.28' (1.00m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-01578CABLE 4COND 22AWG BLACK SHLD 1M |
4,298 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 4 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | Foil, Braid | 3.28' (1.00m) | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01171CABLE 8COND 28AWG BLACK SHLD 1M |
1,326 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 8 | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.146" (3.71mm) | Spiral | 3.28' (1.00m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

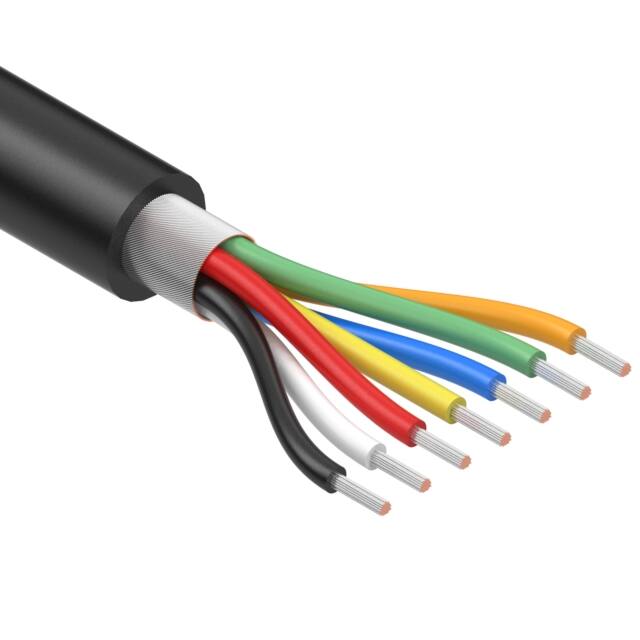

30-01874CABLE 7COND 20AWG BLACK SHLD |
4,161 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.240" (6.10mm) | Spiral | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0291" (0.740mm) | High Density Polyethylene (HDPE) | - |
|
30-01440CBL 4COND 24AWG SHLD 1M MPPE |
2,846 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 24 AWG | 41/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.173" (4.39mm) | Foil | 3.28' (1.00m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0323" (0.820mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-03236CABLE 10COND 20AWG BLACK SHLD |
1,862 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 20 AWG | 105/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.335" (8.51mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
|
31-00009CBL COIL SHLD 2C 24AWG 1115MM |
3,542 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 2 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.169" (4.29mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
