Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-01629CABLE 10COND 28AWG BLK SHLD 1M |
2,817 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 10 | 28 AWG | 7/0.0050" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.272" (6.91mm) | Foil, Braid | 3.28' (1.00m) | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|

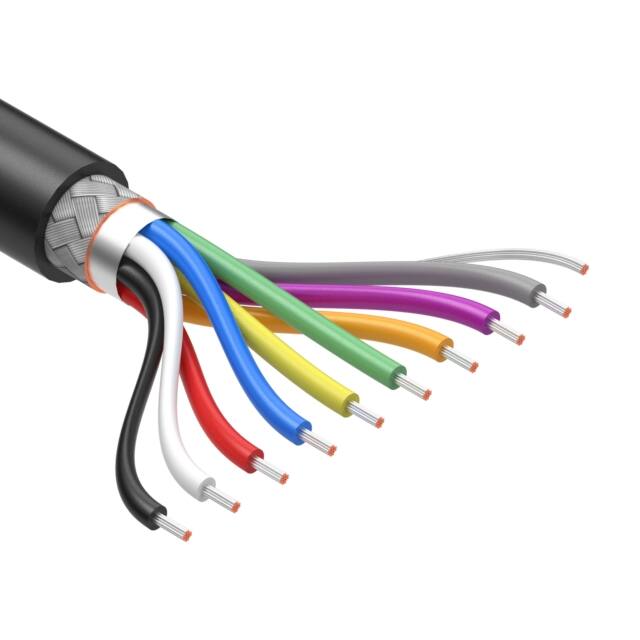

30-01617CABLE 9COND 20AWG BLACK SHLD |
3,551 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 20 AWG | 26/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.354" (8.99mm) | Foil, Braid | - | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-02011CABLE 6COND 28AWG BLACK 1M |
2,856 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 6 | 28 AWG | 7/0.0047" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.177" (4.50mm) | - | 3.28' (1.00m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0098" (0.250mm) | Polyphenylene Ether, Modified (mPPE) | - |
|

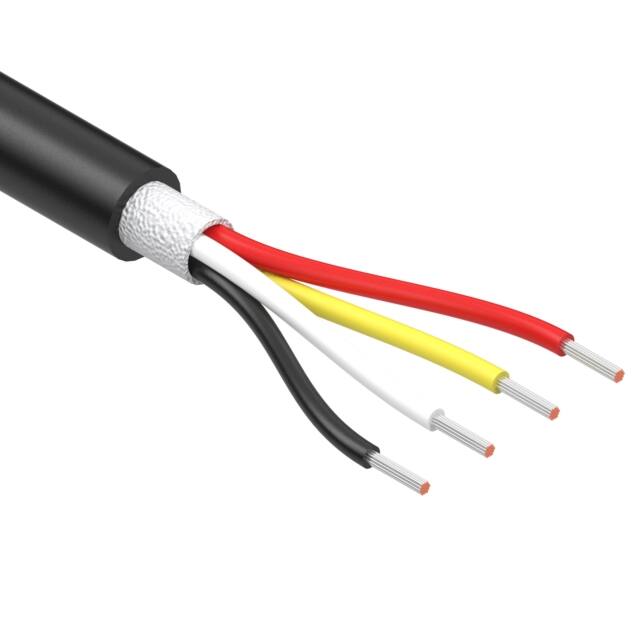

30-01916CABLE 4COND 18AWG BLACK |
3,052 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 18 AWG | 65/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.197" (5.00mm) | - | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-01587CABLE 5COND 24AWG BLACK SHLD 1M |
2,525 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 5 | 24 AWG | 41/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | Foil, Braid | 3.28' (1.00m) | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-02452CABLE 7COND 22AWG BLACK SHLD |
1,967 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 22 AWG | 26/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.193" (4.90mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-00675CABLE 9COND 28AWG BLACK SHLD 1M |
4,437 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 9 | 28 AWG | 19/0.0031" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.205" (5.21mm) | Braid | 3.28' (1.00m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
31-00015CBL COIL SHLD 2C 28AWG 1115MM |
4,896 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 2 | 28 AWG | 19/0.0031" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.150" (3.81mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | - | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
30-01963CABLE 9COND 32AWG BLACK 1M |
1,246 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 9 | 32 AWG | 7/40 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.134" (3.40mm) | - | 3.28' (1.00m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|

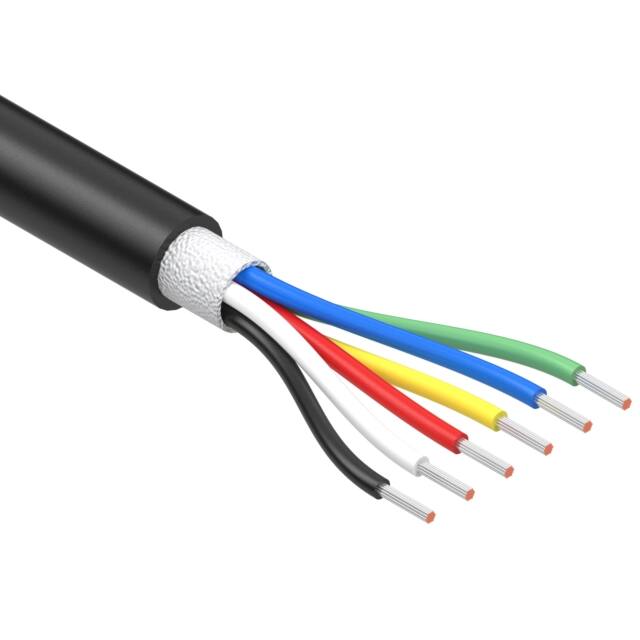

30-01933CABLE 6COND 20AWG BLACK |
2,724 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 20 AWG | 41/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.205" (5.21mm) | - | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
