Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-02401CBL 10CON 22AWG BLK TPU |
1,977 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 22 AWG | 26/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.275" (6.99mm) | - | 502.0' (153.0m) | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - |
|

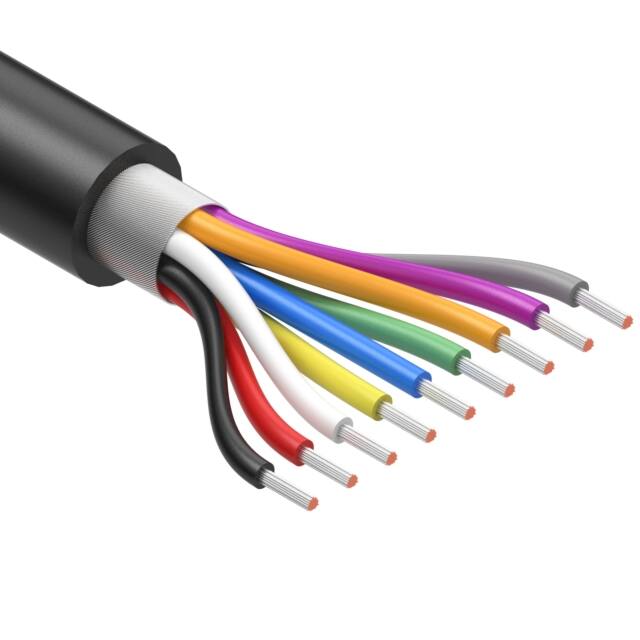

30-01881CABLE 9COND 22AWG BLACK SHLD |
2,715 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 22 AWG | 65/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.240" (6.10mm) | Spiral | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0299" (0.759mm) | High Density Polyethylene (HDPE) | - |
|

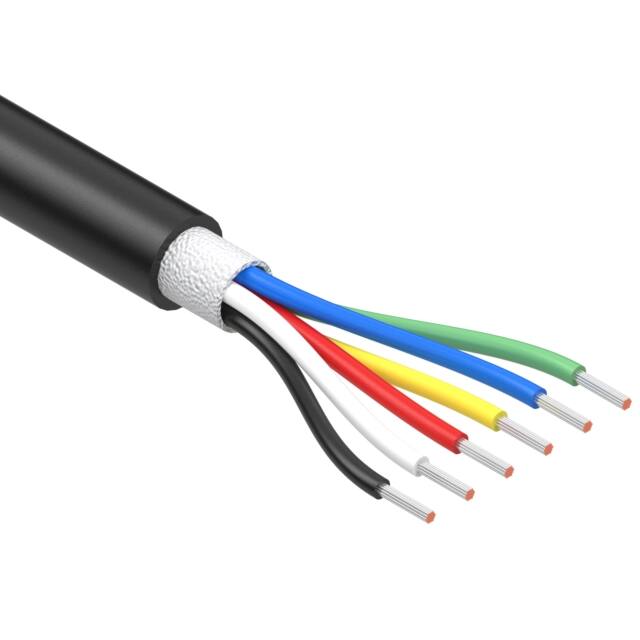

30-02007CABLE 6COND 20AWG BLACK |
2,476 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 20 AWG | 26/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.244" (6.20mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0102" (0.260mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-01955CABLE 8COND 32AWG BLACK 1M |
3,453 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 8 | 32 AWG | 7/40 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.126" (3.20mm) | - | 3.28' (1.00m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-02024CABLE 8COND 22AWG BLACK |
3,441 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 22 AWG | 17/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.236" (5.99mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0102" (0.260mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-01204CABLE 10COND 30AWG BLK SHLD 1M |
1,572 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 10 | 30 AWG | 25/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.150" (3.81mm) | Spiral | 3.28' (1.00m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
30-01705CABLE 10COND 20AWG BLACK |
3,968 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 20 AWG | 26/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.374" (9.50mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-01680CABLE 7COND 18AWG BLACK |
3,647 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 18 AWG | 41/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.331" (8.41mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0394" (1.001mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-03251CABLE 14COND 22AWG BLACK SHLD |
1,334 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 14 | 22 AWG | 65/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.323" (8.20mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-02469CABLE 9COND 24AWG BLACK SHLD |
2,852 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 24 AWG | 26/38 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.193" (4.90mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
