Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-01902CABLE 2COND 22AWG BLACK 1M |
3,390 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 22 AWG | 26/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.142" (3.61mm) | - | 3.28' (1.00m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-02768CBL 10CON 22AWG GRY BIO |
4,628 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 22 AWG | 65/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.260" (6.60mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0276" (0.700mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02840CBL 10CON 22AWG WHT BIO |
1,422 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 22 AWG | 65/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.260" (6.60mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0276" (0.700mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02696CBL 10CON 22AWG BLK BIO |
4,223 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 22 AWG | 65/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.260" (6.60mm) | - | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0276" (0.700mm) | High Density Polyethylene (HDPE) | - |
|

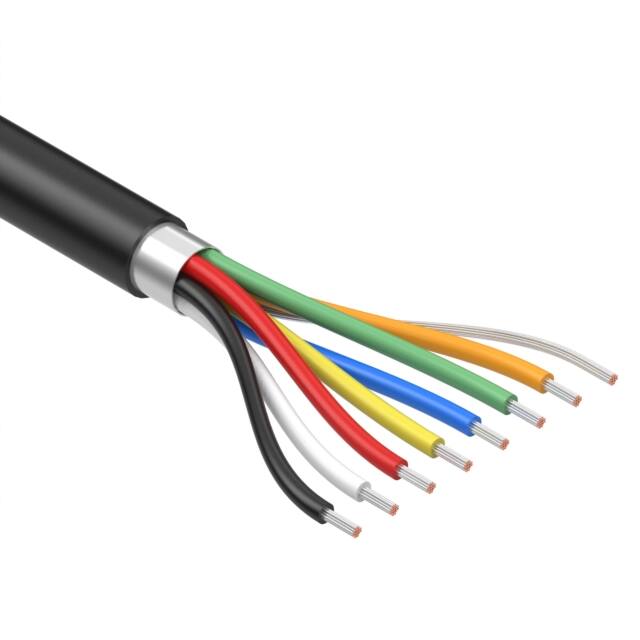

30-01484CBL 7COND 20AWG SHLD MPPE |
1,823 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 20 AWG | 26/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.244" (6.20mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-01592CABLE 6COND 18AWG BLACK SHLD |
1,035 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 18 AWG | 41/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.346" (8.79mm) | Foil, Braid | 502.0' (153.0m) | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0394" (1.001mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-02015CABLE 7COND 20AWG BLACK |
4,082 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 20 AWG | 26/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.244" (6.20mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0102" (0.260mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-02743CBL 7CON 20AWG GRY BIO |
3,986 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.236" (5.99mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0276" (0.700mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02671CBL 7CON 20AWG BLK BIO |
2,686 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.236" (5.99mm) | - | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0276" (0.700mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02815CBL 7CON 20AWG WHT BIO |
4,473 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.236" (5.99mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0276" (0.700mm) | High Density Polyethylene (HDPE) | - |
