Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-02799CBL 5CON 20AWG WHT BIO |
2,832 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.208" (5.28mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02393CBL 9CON 22AWG BLK TPU |
1,005 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 22 AWG | 26/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.252" (6.40mm) | - | 502.0' (153.0m) | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - |
|
30-01207CABLE 10COND 32AWG BLACK METER |
2,738 |
|
Datasheet | - | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 10 | 32 AWG | 19/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.142" (3.61mm) | Spiral | Enter Number of Meters in Order Quantity | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-01420CBL 3COND 20AWG SHLD MPPE |
3,287 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 20 AWG | 26/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.197" (5.00mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0327" (0.831mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-01031CABLE 4COND 24AWG BLACK SHLD 1M |
3,704 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 4 | 24 AWG | 11/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.205" (5.21mm) | Foil, Braid | 3.28' (1.00m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|

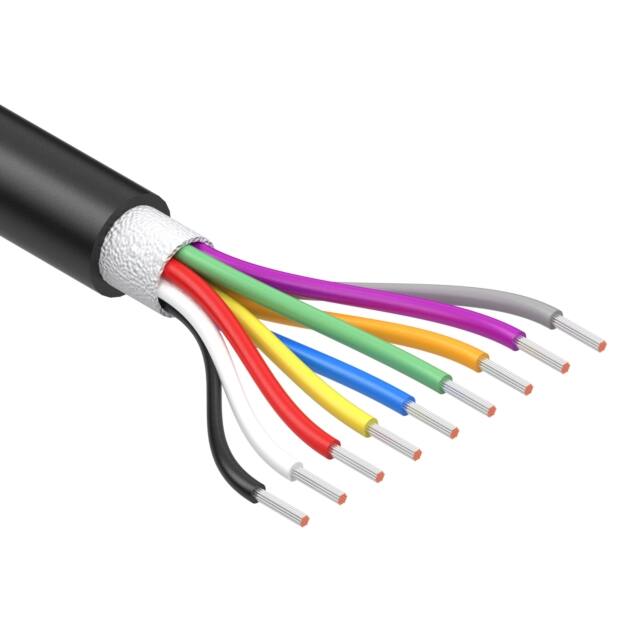

30-02033CABLE 9COND 24AWG BLACK |
3,144 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 24 AWG | 41/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.224" (5.69mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0094" (0.240mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-01697CABLE 9COND 20AWG BLACK |
4,090 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 20 AWG | 26/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.339" (8.61mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01601CABLE 7COND 20AWG BLACK SHLD |
1,938 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 20 AWG | 26/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.315" (8.00mm) | Foil, Braid | - | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0394" (1.001mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-03244CABLE 12COND 22AWG BLACK SHLD |
1,785 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 12 | 22 AWG | 65/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.307" (7.80mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00381CABLE 4COND 18AWG WHITE 1M |
4,270 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | - | 3.28' (1.00m) | White | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
