Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-00407CABLE 2COND 26AWG BLACK 5M |
1,536 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.106" (2.69mm) | - | 16.40' (5.00m) | Black | UL Style 2468 | - | 300 V | -10°C ~ 80°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00492CABLE 4COND 26AWG BLK SHLD METER |
3,984 |
|
Datasheet | - | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 26 AWG | 26/40 | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.134" (3.40mm) | Spiral | Enter Number of Meters in Order Quantity | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-01071CABLE 7COND 28AWG BLACK SHLD 1M |
2,722 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 7 | 28 AWG | 7/0.0047" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.217" (5.51mm) | Foil, Braid | 3.28' (1.00m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-02453CABLE 7COND 24AWG BLACK SHLD |
3,782 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 24 AWG | 26/38 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.173" (4.39mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|

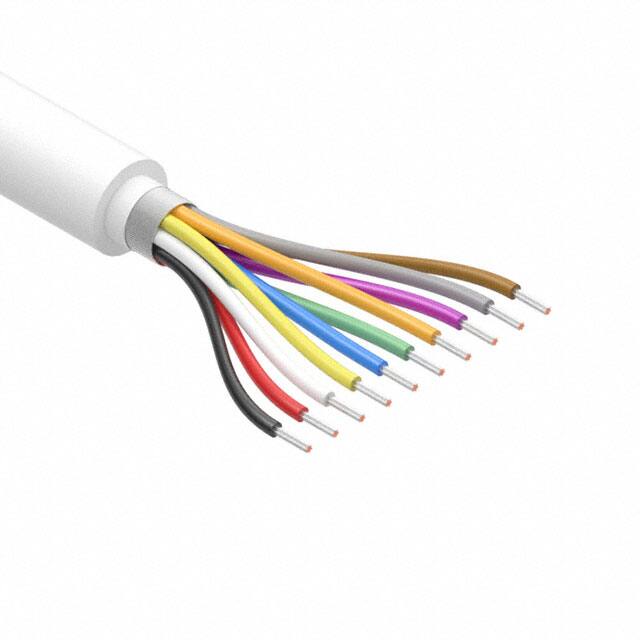

30-01196CABLE 10COND 24AWG WHITE SHLD |
2,833 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.236" (5.99mm) | Spiral | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

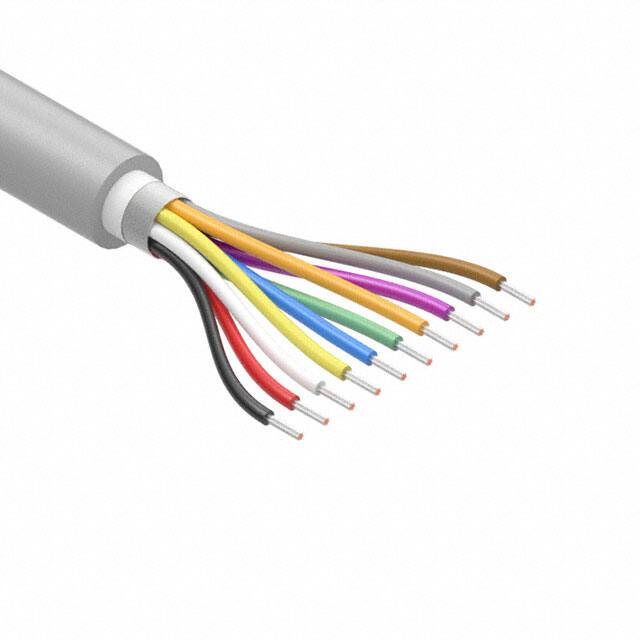

30-01197CABLE 10COND 24AWG GRAY SHLD |
3,751 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.236" (5.99mm) | Spiral | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-02042CABLE 10COND 26AWG BLACK |
1,256 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 26 AWG | 26/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.224" (5.69mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0098" (0.250mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-03229CABLE 7COND 20AWG BLACK SHLD |
2,030 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 20 AWG | 105/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.276" (7.01mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
|

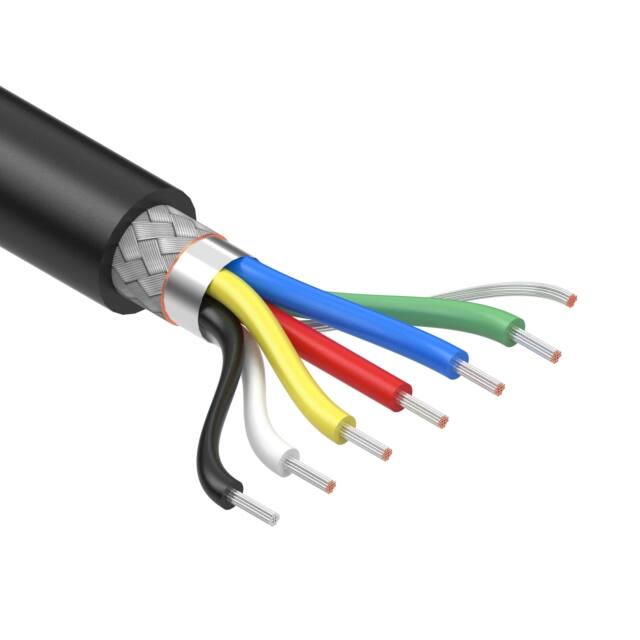

30-01593CABLE 6COND 20AWG BLACK SHLD |
2,925 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 20 AWG | 26/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.315" (8.00mm) | Foil, Braid | 502.0' (153.0m) | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0394" (1.001mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01931CABLE 5COND 32AWG BLACK 1M |
1,686 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 5 | 32 AWG | 7/40 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.118" (3.00mm) | - | 3.28' (1.00m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
