Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-00382CABLE 4COND 18AWG GRAY 1M |
4,648 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | - | 3.28' (1.00m) | Gray | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01452CBL 5COND 20AWG SHLD MPPE |
3,162 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 20 AWG | 26/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.228" (5.79mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0323" (0.820mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-02423CABLE 3COND 28AWG BLACK SHLD 1M |
1,467 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 28 AWG | 19/40 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.126" (3.20mm) | Spiral | 3.28' (1.00m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-01174CABLE 8COND 30AWG BLACK SHLD 1M |
1,469 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 8 | 30 AWG | 25/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.134" (3.40mm) | Spiral | 3.28' (1.00m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
30-03267CABLE 25COND 26AWG BLACK SHLD |
4,164 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 25 | 26 AWG | 26/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.335" (8.51mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0362" (0.920mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01298CABLE 7COND 18AWG BLACK |
3,040 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 18 AWG | 41/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.287" (7.29mm) | - | 502.0' (153.0m) | Black | UL Style 2464 | - | 300 V | -25°C ~ 80°C | - | 0.0374" (0.950mm) | Poly-Vinyl Chloride (PVC) | - |
|

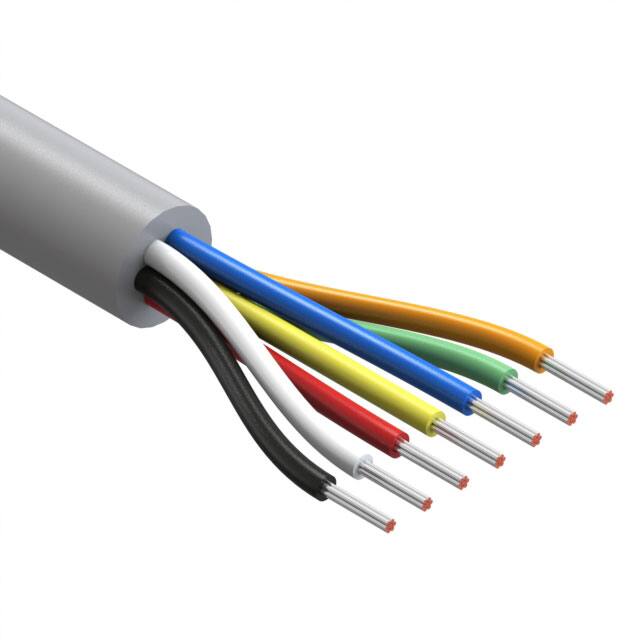

30-01300CABLE 7COND 18AWG GRAY |
1,073 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 18 AWG | 41/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.287" (7.29mm) | - | 502.0' (153.0m) | Gray | UL Style 2464 | - | 300 V | -25°C ~ 80°C | - | 0.0374" (0.950mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01299CABLE 7COND 18AWG WHITE |
3,245 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 18 AWG | 41/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.287" (7.29mm) | - | 502.0' (153.0m) | White | UL Style 2464 | - | 300 V | -25°C ~ 80°C | - | 0.0374" (0.950mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-02376CBL 7CON 20AWG BLK TPU |
1,423 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 20 AWG | 41/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.244" (6.20mm) | - | 502.0' (153.0m) | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - |
|
30-01304CABLE 7COND 22AWG BLACK 1M |
2,891 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 7 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.240" (6.10mm) | - | 3.28' (1.00m) | Black | UL Style 2464 | - | 300 V | -25°C ~ 80°C | - | 0.0394" (1.001mm) | Poly-Vinyl Chloride (PVC) | - |
