Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-00380CABLE 4COND 18AWG BLACK 1M |
2,575 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | - | 3.28' (1.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01939CABLE 6COND 32AWG BLACK 1M |
2,412 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 6 | 32 AWG | 7/40 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.118" (3.00mm) | - | 3.28' (1.00m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
.jpg)
|
30-00525CABLE 9COND 24AWG BLACK 1M |
4,640 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 9 | 24 AWG | 11/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | - | 3.28' (1.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01226CABLE 2COND 24AWG BLACK SHLD 1M |
3,815 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.169" (4.29mm) | Braid | 3.28' (1.00m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
30-01083CABLE 8COND 28AWG BLACK SHLD 1M |
2,767 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 8 | 28 AWG | 7/0.0047" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.228" (5.79mm) | Foil, Braid | 3.28' (1.00m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|

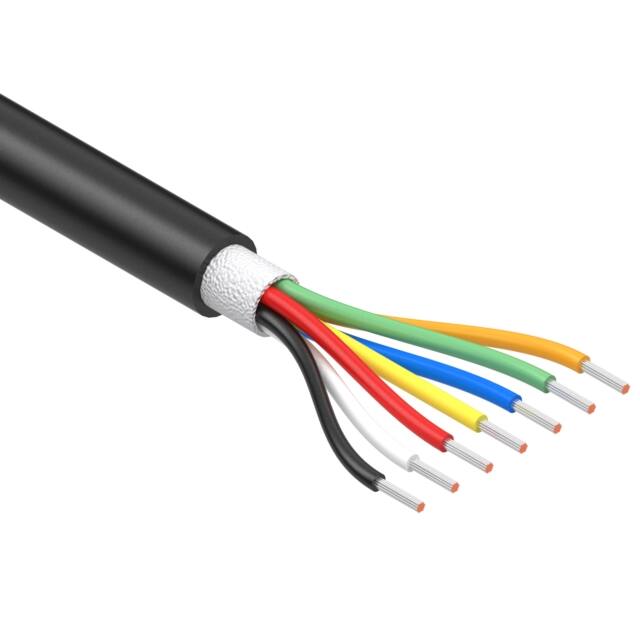

30-02016CABLE 7COND 22AWG BLACK |
2,362 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 22 AWG | 17/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.220" (5.59mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0102" (0.260mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-00450CABLE 4COND 26AWG WHITE SHLD 1M |
2,250 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 4 | 26 AWG | 26/40 | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.134" (3.40mm) | Spiral | 3.28' (1.00m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-00492CABLE 4COND 26AWG BLACK SHLD 1M |
1,999 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 4 | 26 AWG | 26/40 | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.134" (3.40mm) | Spiral | 3.28' (1.00m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-02727CBL 5CON 20AWG GRY BIO |
4,441 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.208" (5.28mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02655CBL 5CON 20AWG BLK BIO |
2,631 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.208" (5.28mm) | - | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
