Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2232200MWKIT.252232200MWKIT.25 MAGNET WIRE KIT, |
3,536 |
|
Datasheet | - | Bag | Active | 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG | Copper, Annealed Bare | Polyester with Polyamideimide (PAI) Overcoat | - | Assorted | MW 35-C | - |
|

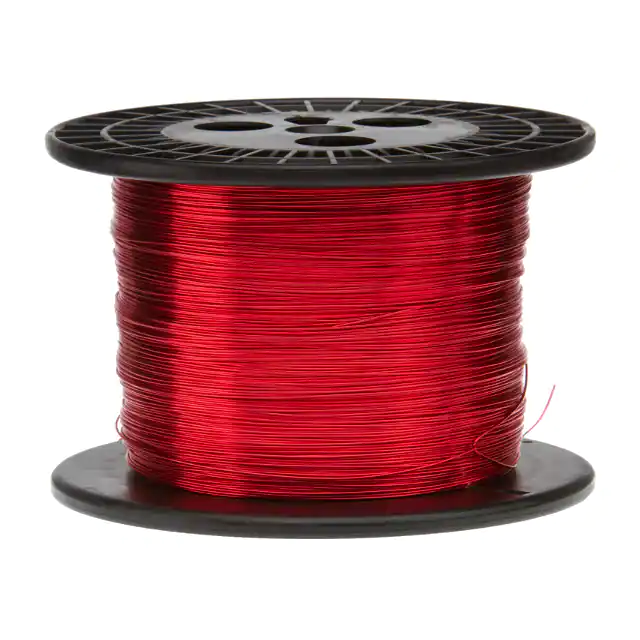

20SNS2.5MAGNET WIRE, ENAMELED COPPER WIR |
4,551 |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 798.0' (243m) | MW 80-C | 2.5 lbs (1.1 kg) |
|

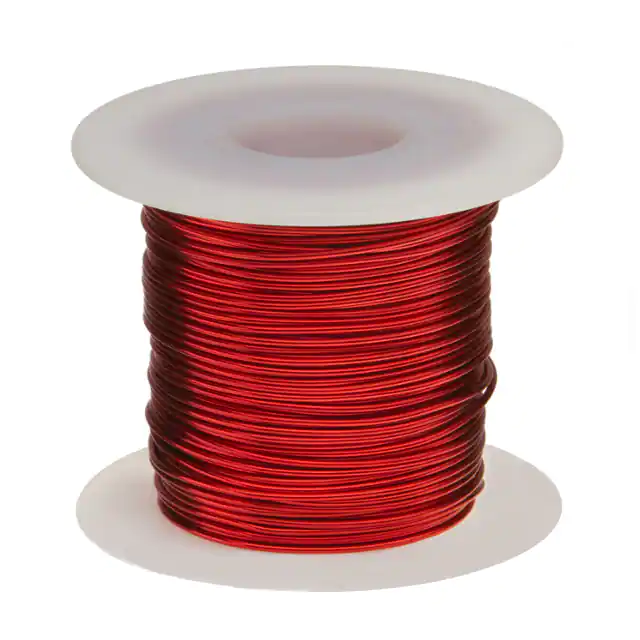

18HNS2.5MAGNET WIRE, HEAVY BUILD ENAMELE |
1,519 |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 497.0' (151m) | MW 80-C | 2.5 lbs (1.1 kg) |
|

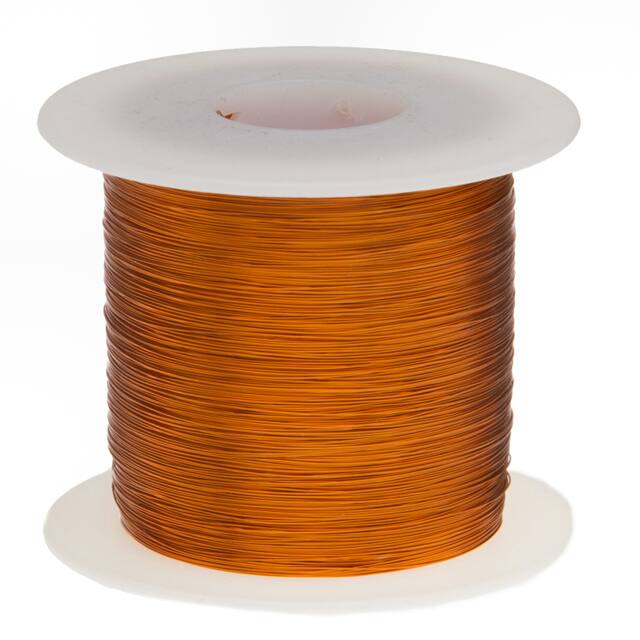

36S2002.5MAGNET WIRE, 200C, 36 AWG,2.5 LB |
1,310 |
|
Datasheet | - | Bag | Active | 36 AWG | Copper, Annealed Bare | Polyester | - | 31930.0' (9732m) | MW 35-C | 2.5 lbs (1.1 kg) |
|
16/38LITZ.5#26 LITZ WIRE, 16/38STR, 8OZ |
3,198 |
|
Datasheet | - | Box | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.021" (0.53mm) | 626.0' (190.8m) | MW 80-C | 0.5 lbs (226.8 g) |
|
18SNS18SNS MAGNET WIRE, ENAMELED COPP |
3,180 |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1006.0' (306m) | MW 80-C | 5.0 lbs (2.3kg) |
|
18HNS5MAGNET WIRE, HEAVY BUILD ENAMELE |
3,895 |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 995.0' (303m) | MW 80-C | 5.0 lbs (2.3kg) |
|

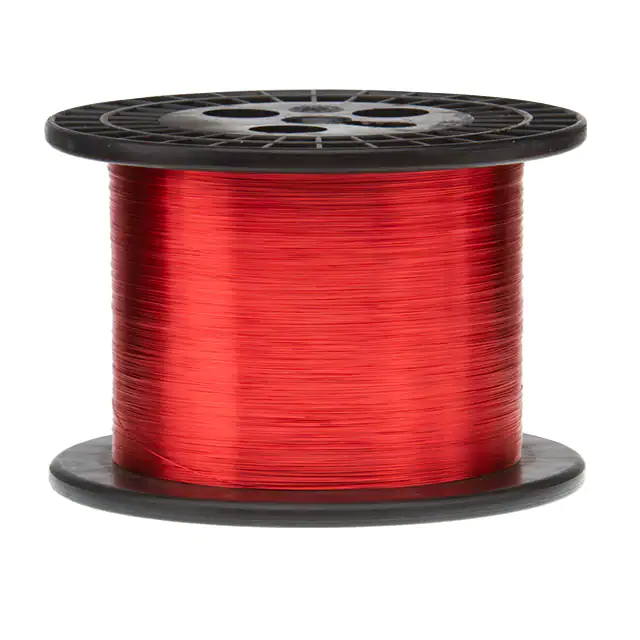

32SNS10MAGNET WIRE, ENAMELED COPPER WIR |
4,230 |
|
Datasheet | - | Bag | Active | 32 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 40540.0' (12357m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
18HNS10MAGNET WIRE, HEAVY BUILD ENAMELE |
2,114 |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1990.0' (607m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
162/38LITZ2.5#16 LITZ WIRE, 3/54/38STR, 2.5LB |
1,014 |
|
Datasheet | - | Box | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.071" (1.80mm) | 322.0' (98.1m) | MW 80-C | 2.5 lbs (1.1 kg) |
