Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
43PEP.2543PEP.25 43 AWG MAGNET WIRE, PLA |
1,705 |
|
Datasheet | - | Bag | Active | 43 AWG | Copper, Annealed Bare | Enamel | - | 16523.0' (5036m) | MW 1-C | 0.25 lbs (113.4 g) |
|
2232MWKIT.1252232MWKIT.125 MAGNET WIRE KIT, E |
4,706 |
|
Datasheet | - | Bag | Active | 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | Assorted | MW 80-C | - |
|
1424MWKIT.1251424MWKIT.125 MAGNET WIRE KIT, E |
2,326 |
|
Datasheet | - | Bag | Active | 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | Assorted | MW 80-C | - |
|
34S200P34S200P MAGNET WIRE, ENAMELED CO |
3,460 |
|
Datasheet | - | Bag | Active | 34 AWG | Copper, Annealed Bare | Polyester | - | 8086.0' (2465m) | MW 35-C | - |
|
20H240P.5#20 HVY MAG WIRE, 240C NAT 8OZ |
1,353 |
|
Datasheet | - | Box | Active | 20 AWG | Copper, Annealed Bare | Polyimide | 0.035" (0.89mm) | 40.0' (12.2m) | MW 16-C | 0.5 lbs (226.8 g) |
|
25HNSP#25 HVY MAG WIRE, 155C RED 1LB |
4,305 |
|
Datasheet | - | Box | Active | 25 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.020" (0.51mm) | 992.0' (302m) | MW 80-C | 1.0 lbs (453.6 g) |
|
14HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
2,046 |
|
Datasheet | - | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 79.0' (24m) | MW 80-C | 1.0 lbs (453.6 g) |
|

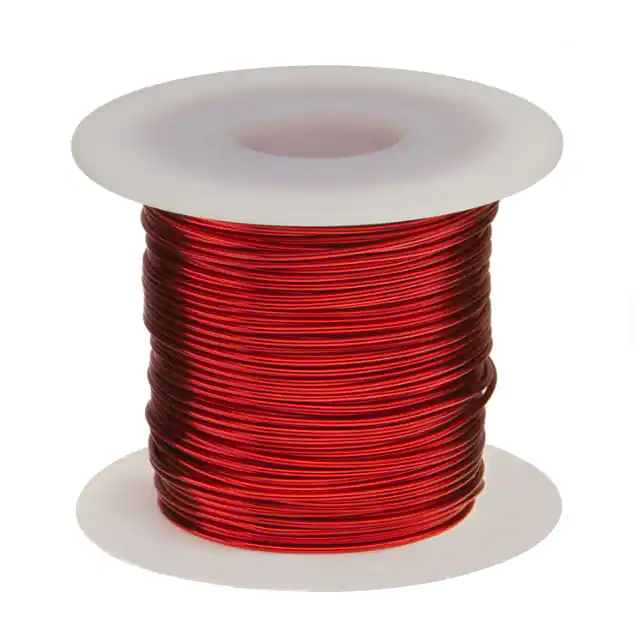

16HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
1,727 |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 125.0' (38m) | MW 80-C | 1.0 lbs (453.6 g) |
|
27HNSP#27 HVY MAG WIRE, 155C NAT 1LB |
4,632 |
|
Datasheet | - | Box | Active | 27 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.016" (0.41mm) | 1571.0' (479m) | MW 80-C | 1.0 lbs (453.6 g) |
|

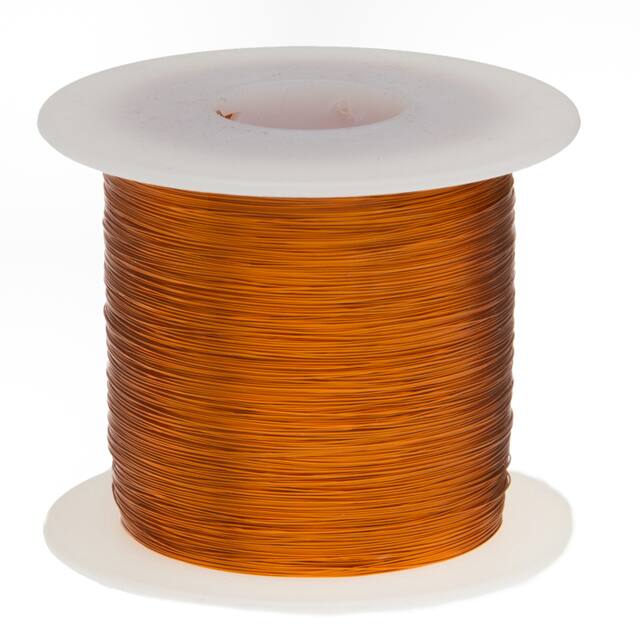

36S200P36S200P MAGNET WIRE, ENAMELED CO |
2,552 |
|
Datasheet | - | Bag | Active | 36 AWG | Copper, Annealed Bare | Polyester | - | 12772.0' (3893m) | MW 35-C | 1.0 lbs (453.6 g) |
