Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

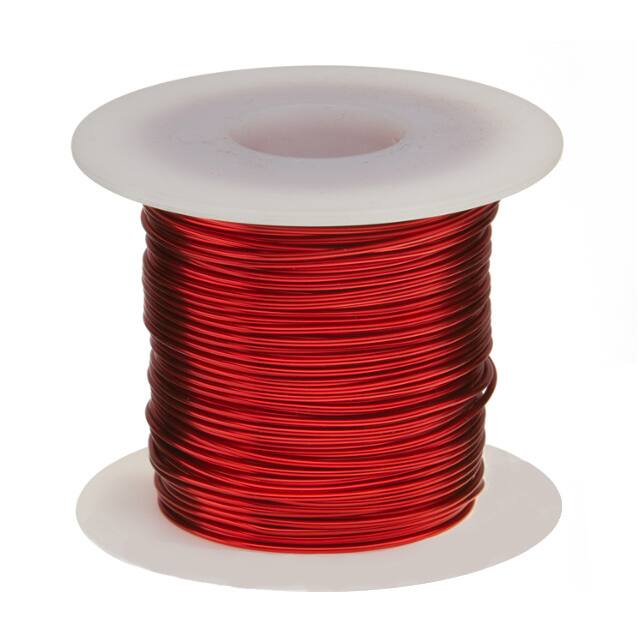

18HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
3,636 |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 199.0' (61m) | MW 80-C | 1.0 lbs (453.6 g) |
|
29HNSP#29 HVY MAG WIRE, 155C RED 1LB |
1,851 |
|
Datasheet | - | Box | Active | 29 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.013" (0.33mm) | 2463.0' (751m) | MW 80-C | 1.0 lbs (453.6 g) |
|

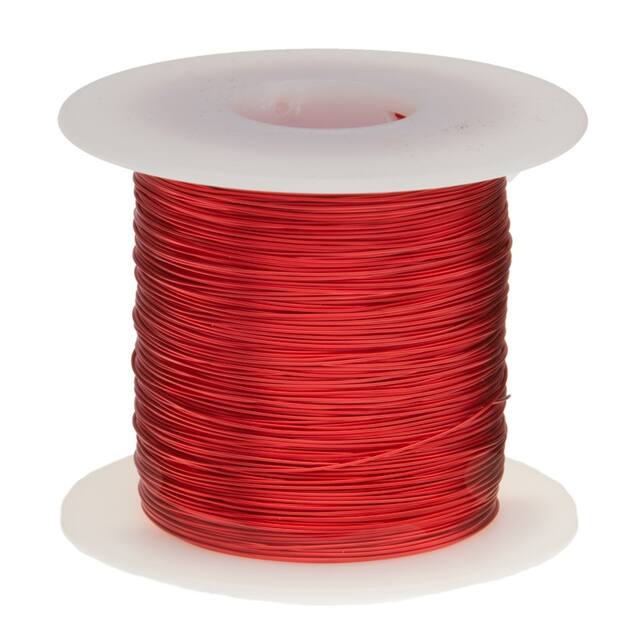

23HNSP#23 HVY MAG WIRE, 155C RED 1LB |
1,977 |
|
Datasheet | - | Box | Active | 23 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.025" (0.63mm) | 625.0' (190m) | MW 80-C | 1.0 lbs (453.6 g) |
|
22H240P.5#22 HVY MAG WIRE, 240C NAT 8OZ |
4,462 |
|
Datasheet | - | Box | Active | 22 AWG | Copper, Annealed Bare | Polyimide | 0.028" (0.71mm) | 40.0' (12.2m) | MW 16-C | 0.5 lbs (226.8 g) |
|
31HNSP#31 HVY MAG WIRE, 155C RED 1LB |
3,901 |
|
Datasheet | - | Box | Active | 31 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.010" (0.25mm) | 3948.0' (1203m) | MW 80-C | 1.0 lbs (453.6 g) |
|
20HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
3,861 |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 314.0' (96m) | MW 80-C | - |
|
25/38LITZ.25#24 LITZ WIRE, 25/38STR, 4OZ |
4,962 |
|
Datasheet | - | Box | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.026" (0.66mm) | 200.0' (61m) | MW 80-C | 0.25 lbs (113.4 g) |
|

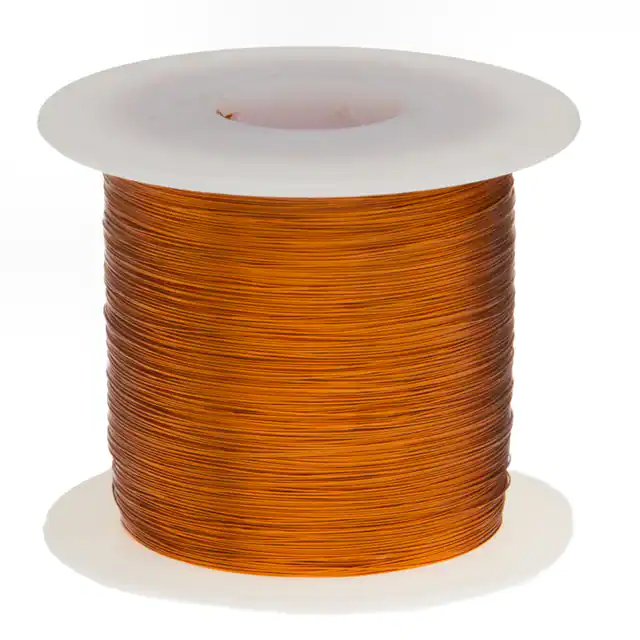

38S200P38S200P MAGNET WIRE, ENAMELED CO |
3,992 |
|
Datasheet | - | Bag | Active | 38 AWG | Copper, Annealed Bare | Polyester | - | 19952.0' (6081m) | MW 35-C | 1.0 lbs (453.6 g) |
|
22HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
1,561 |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 501.0' (153m) | MW 80-C | - |
|
2232200MWKIT.1252232200MWKIT.125 MAGNET WIRE KIT |
1,493 |
|
Datasheet | - | Bag | Active | 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG | Copper, Annealed Bare | Polyester with Polyamideimide (PAI) Overcoat | - | Assorted | MW 35-C | - |
