Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
23SNSP23SNSP 23 AWG MAGNET WIRE, ENAME |
2,366 |
|
Datasheet | - | Bag | Active | 23 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 634.0' (193m) | MW 80-C | - |
|
28HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
2,889 |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1989.0' (606m) | MW 80-C | - |
|
14H240P.5#14 HVY MAG WIRE, 240C NAT 8OZ |
3,862 |
|
Datasheet | - | Box | Active | 14 AWG | Copper, Annealed Bare | Polyimide | 0.068" (1.73mm) | 40.0' (12.2m) | MW 16-C | 0.5 lbs (226.8 g) |
|
32H240P.25#32 HVY MAG WIRE, 240C NAT 4OZ |
2,392 |
|
Datasheet | - | Box | Active | 32 AWG | Copper, Annealed Bare | Polyimide | 0.010" (0.25mm) | 20.0' (6.1m) | MW 16-C | 0.25 lbs (113.4 g) |
|
260/38LITZ.125#14 LITZ WIRE, 5/52/38STR, 2OZ |
3,233 |
|
Datasheet | - | Box | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.090" (2.29mm) | 10.0' (3m) | MW 80-C | 0.13 lbs (56.7 g) |
|

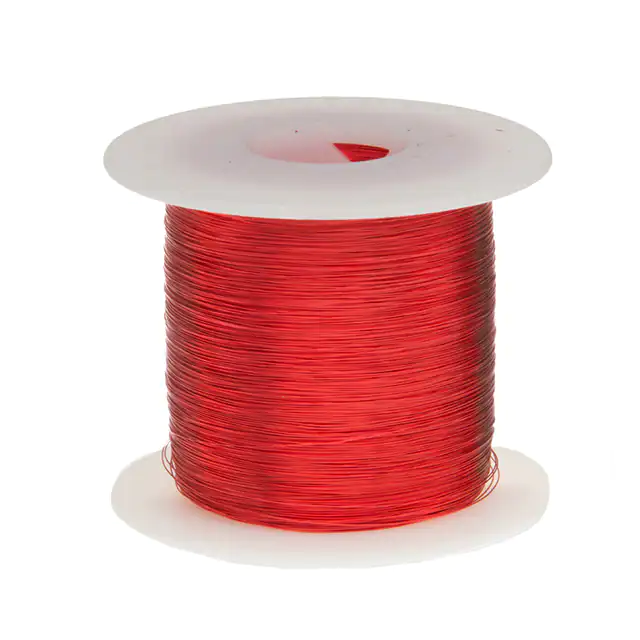

30HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
3,754 |
|
Datasheet | - | Bag | Active | 30 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 3132.0' (955m) | MW 80-C | - |
|
|
16H240P.5#16 HVY MAG WIRE, 240C NAT 8OZ |
1,264 |
|
Datasheet | - | Box | Active | 16 AWG | Copper, Annealed Bare | Polyimide | 0.055" (1.40mm) | 40.0' (12.2m) | MW 16-C | 0.5 lbs (226.8 g) |
|
32HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
4,916 |
|
Datasheet | - | Bag | Active | 32 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 4885.0' (1489m) | MW 80-C | - |
|
44SNSP.544SNSP.5 44 AWG MAGNET WIRE, ENA |
1,770 |
|
Datasheet | - | Bag | Active | 44 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 39899.0' (12161m) | MW 79-C | 0.5 lbs (226.8 g) |
|

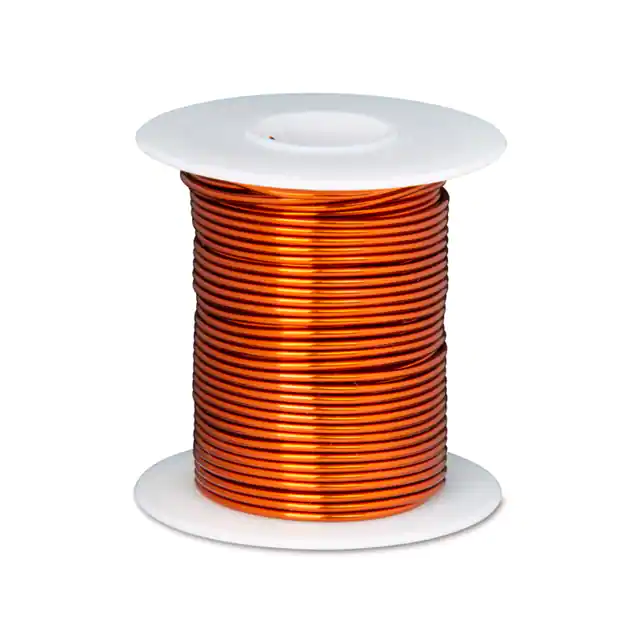

18H240P.5#18 HVY MAG WIRE, 240C NAT 8OZ |
2,874 |
|
Datasheet | - | Box | Active | 18 AWG | Copper, Annealed Bare | Polyimide | 0.044" (1.12mm) | 40.0' (12.2m) | MW 16-C | 0.5 lbs (226.8 g) |
