Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

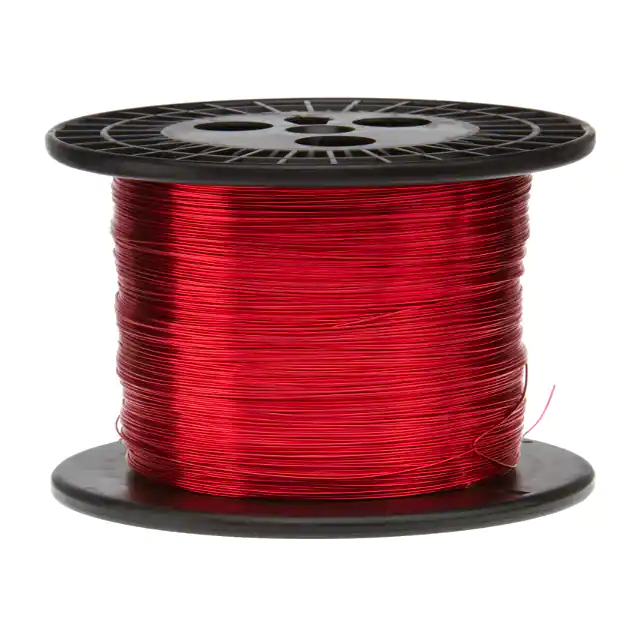

14HNSMAGNET WIRE, HEAVY BUILD ENAMELE |
3,189 |
|
Datasheet | - | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 395.0' (120m) | MW 80-C | 5.0 lbs (2.3kg) |
|

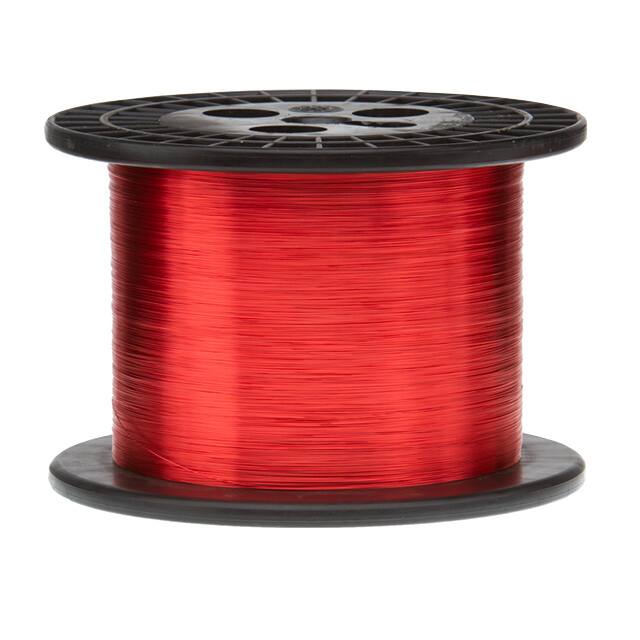

30HNS5MAGNET WIRE, HEAVY BUILD ENAMELE |
1,677 |
|
Datasheet | - | Bag | Active | 30 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | - | MW 80-C | 5.0 lbs (2.3kg) |
|
31HNS#31 HVY MAG WIRE, 155C RED 5LB |
2,442 |
|
Datasheet | - | Box | Active | 31 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.010" (0.25mm) | 19740.0' (6017m) | MW 80-C | 5.0 lbs (2.3kg) |
|

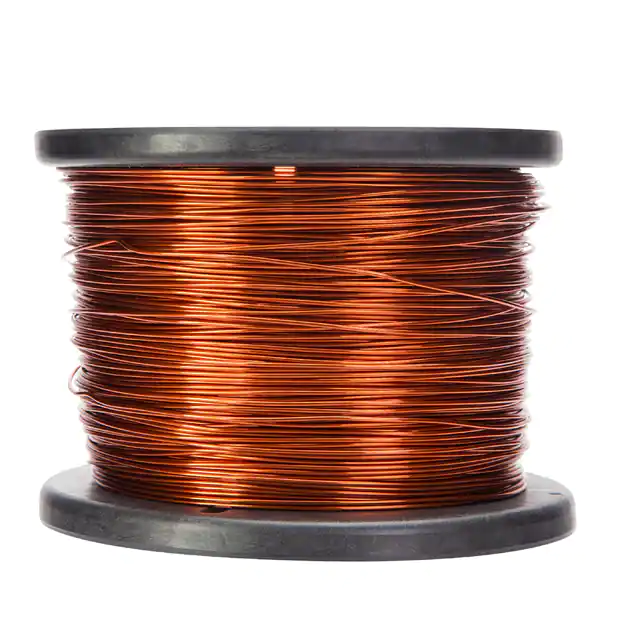

20H20020H200 MAGNET WIRE, ENAMELED COP |
2,972 |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyester | - | 1571.0' (479m) | MW 35-C | - |
|
16HNS5MAGNET WIRE, HEAVY BUILD ENAMELE |
1,951 |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 625.0' (190m) | MW 80-C | 5.0 lbs (2.3kg) |
|
32HNS5MAGNET WIRE, HEAVY BUILD ENAMELE |
3,729 |
|
Datasheet | - | Bag | Active | 32 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 24425.0' (7445m) | MW 80-C | 5.0 lbs (2.3kg) |
|

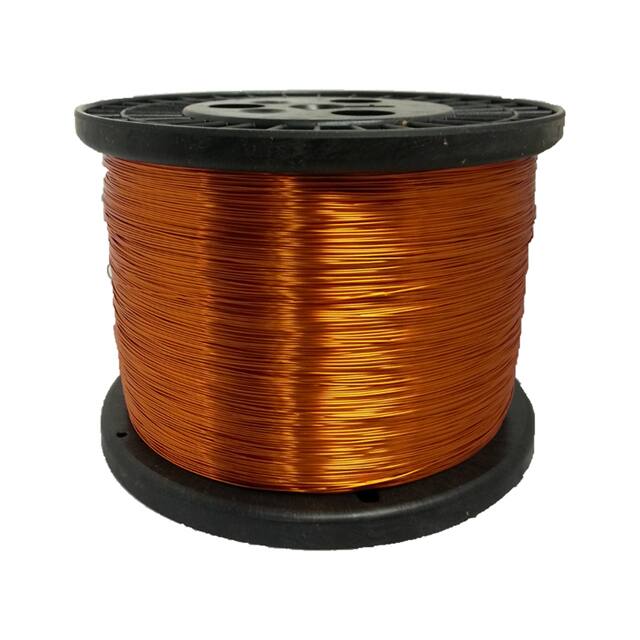

22H20022H200 MAGNET WIRE, ENAMELED COP |
3,316 |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 2511.0' (765m) | MW 35-C | - |
|
20HNS5MAGNET WIRE, HEAVY BUILD ENAMELE |
4,037 |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1570.0' (478m) | MW 80-C | 5.0 lbs (2.3kg) |
|
22HNS5MAGNET WIRE, HEAVY BUILD ENAMELE |
2,869 |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 2505.0' (764m) | MW 80-C | 5.0 lbs (2.3kg) |
|
24H20024H200 MAGNET WIRE, ENAMELED COP |
2,804 |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyester | - | 3951.0' (1204m) | MW 35-C | - |
