Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
31SNS31SNS 31 AWG MAGNET WIRE, ENAMEL |
1,801 |
|
Datasheet | - | Bag | Active | 31 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 20270.0' (6178m) | MW 80-C | - |
|
2232MWKIT.52232MWKIT.5 MAGNET WIRE KIT, ENA |
1,857 |
|
Datasheet | - | Bag | Active | 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | Assorted | MW 80-C | - |
|
44SNS2.5MAGNET WIRE, ENAMELED COPPER WIR |
3,783 |
|
Datasheet | - | Bag | Active | 44 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 199495.0' (60806m) | MW 79-C | 2.5 lbs (1.1 kg) |
|

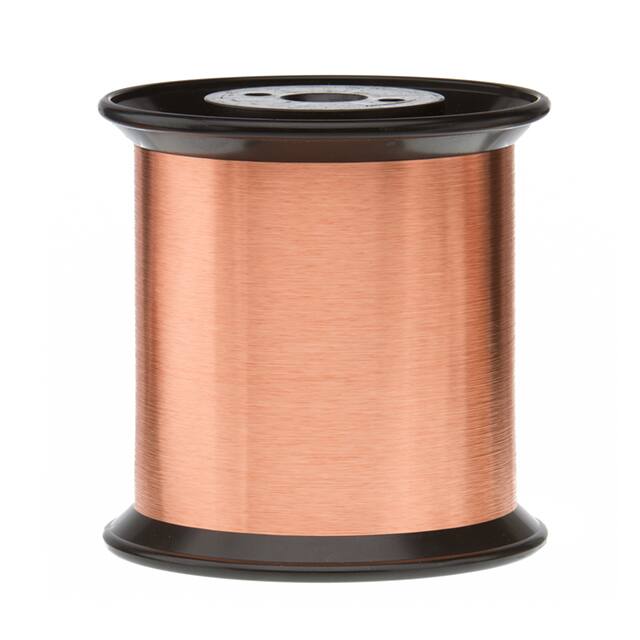

42HNS2.5MAGNET WIRE, HEAVY BUILD ENAMELE |
1,299 |
|
Datasheet | - | Bag | Active | 42 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 12400.0' (3780m) | MW 79-C | 2.5 lbs (1.1 kg) |
|
24SNS24SNS 24 AWG MAGNET WIRE, ENAMEL |
4,358 |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 4014.0' (1223m) | MW 80-C | - |
|

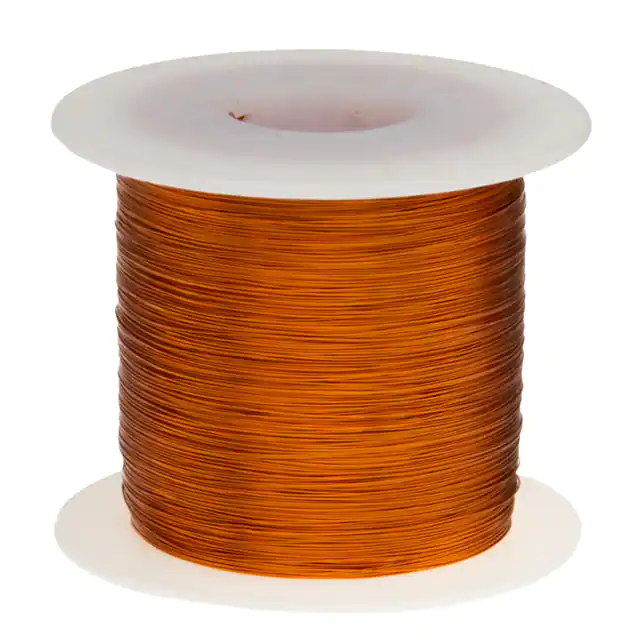

30H240P#30 HVY MAG WIRE, 240C NAT 1LB |
3,806 |
|
Datasheet | - | Box | Active | 30 AWG | Copper, Annealed Bare | Polyimide | 0.012" (0.30mm) | 79.0' (24.1m) | MW 16-C | 1.0 lbs (453.6 g) |
|
28SNS28SNS 28 AWG MAGNET WIRE, ENAMEL |
1,768 |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 10135.0' (3089m) | MW 80-C | 5.0 lbs (2.3kg) |
|
26SNS26SNS 26 AWG MAGNET WIRE, ENAMEL |
4,060 |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 6400.0' (1951m) | MW 80-C | - |
|
16SNS16SNS MAGNET WIRE, ENAMELED COPP |
3,222 |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 631.0' (192m) | MW 80-C | 5.0 lbs (2.3kg) |
|
260/38LITZ.5#14 LITZ WIRE, 5/52/38STR, 8OZ |
3,759 |
|
Datasheet | - | Box | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.090" (2.29mm) | 40.0' (12.2m) | MW 80-C | 0.5 lbs (226.8 g) |
