Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21SNS21SNS MAGNET WIRE, ENAMELED COPP |
2,504 |
|
Datasheet | - | Bag | Active | 21 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 2003.0' (611m) | MW 80-C | - |
|

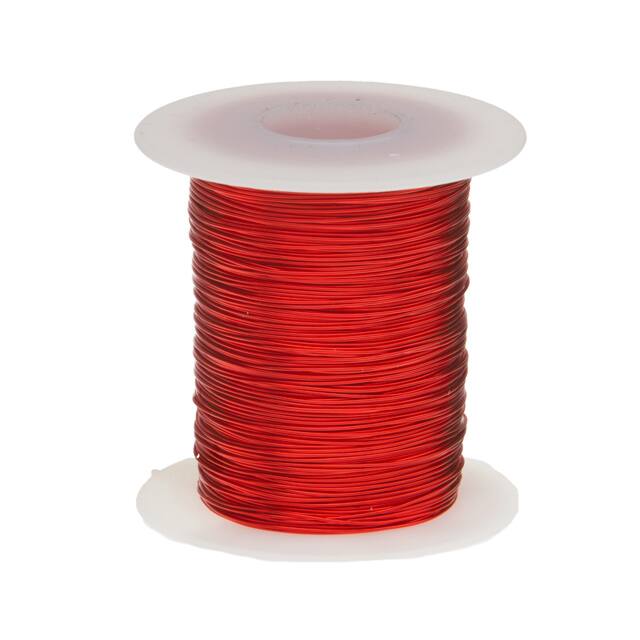

22SNS22SNS MAGNET WIRE, ENAMELED COPP |
2,322 |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 2535.0' (773m) | MW 80-C | - |
|
14H20014H200 MAGNET WIRE, ENAMELED COP |
3,261 |
|
Datasheet | - | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyester | - | 395.0' (120m) | MW 35-C | 5.0 lbs (2.3kg) |
|
17SNS17SNS MAGNET WIRE, ENAMELED COPP |
1,962 |
|
Datasheet | - | Bag | Active | 17 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 797.0' (243m) | MW 80-C | 5.0 lbs (2.3kg) |
|
26HNS5MAGNET WIRE, HEAVY BUILD ENAMELE |
1,802 |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 6290.0' (1917m) | MW 80-C | 5.0 lbs (2.3kg) |
|

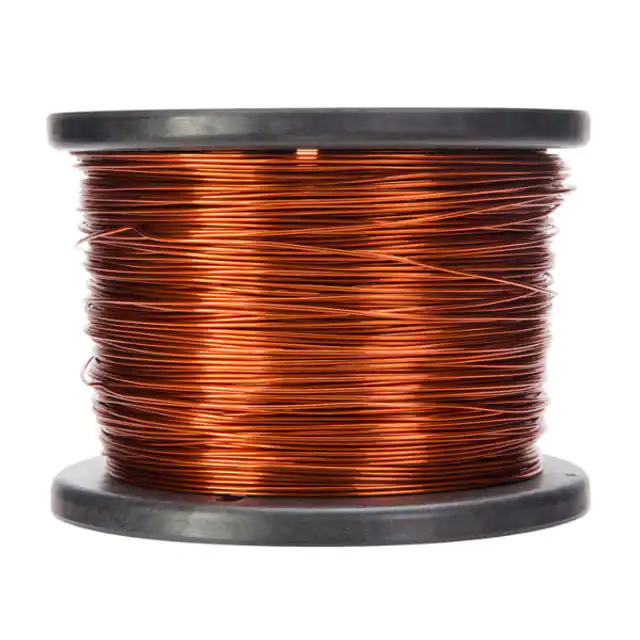

18H20018H200 MAGNET WIRE, ENAMELED COP |
2,099 |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyester | - | 996.0' (303m) | MW 35-C | 5.0 lbs (2.3kg) |
|
29HNS#29 HVY MAG WIRE, 155C RED 5LB |
2,038 |
|
Datasheet | - | Box | Active | 29 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.013" (0.33mm) | 12315.0' (3754m) | MW 80-C | 5.0 lbs (2.3kg) |
|

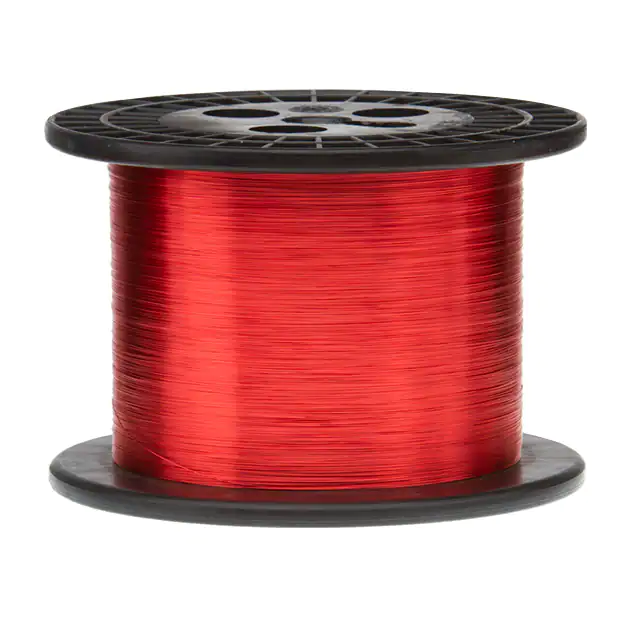

28HNS5MAGNET WIRE, HEAVY BUILD ENAMELE |
4,036 |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 9945.0' (3031m) | MW 80-C | 5.0 lbs (2.3kg) |
|
25/38LITZ1#24 LITZ WIRE, 25/38STR, 1.0LB |
2,857 |
|
Datasheet | - | Box | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.026" (0.66mm) | 801.0' (244.1m) | MW 80-C | 1.0 lbs (453.6 g) |
|
16H200MAGNET WIRE, ENAMELED COPPER WIR |
1,065 |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyester | - | 631.0' (192m) | MW 35-C | 5.0 lbs (2.3kg) |
