Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

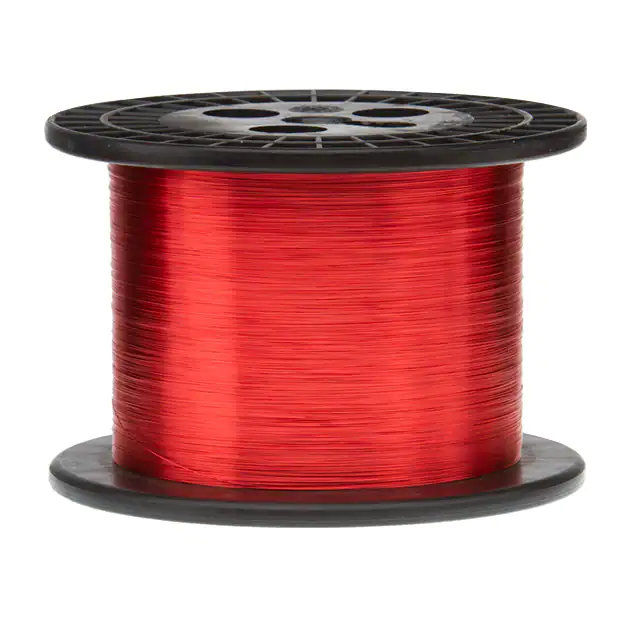

30SNS30SNS 30 AWG MAGNET WIRE, ENAMEL |
4,849 |
|
Datasheet | - | Bag | Active | 30 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 16060.0' (4895m) | MW 80-C | - |
|
32SNS32SNS 32 AWG MAGNET WIRE, ENAMEL |
1,937 |
|
Datasheet | - | Bag | Active | 32 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 25015.0' (7625m) | MW 80-C | - |
|
25HNS#25 HVY MAG WIRE, 155C RED 5LB |
2,380 |
|
Datasheet | - | Box | Active | 25 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.020" (0.51mm) | 4961.0' (1512m) | MW 80-C | 5.0 lbs (2.3kg) |
|
23SNSMAGNET WIRE, ENAMELED COPPER WIR |
1,444 |
|
Datasheet | - | Bag | Active | 23 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 3169.0' (966m) | MW 80-C | - |
|
32H240P#32 HVY MAG WIRE, 240C NAT 1LB |
4,270 |
|
Datasheet | - | Box | Active | 32 AWG | Copper, Annealed Bare | Polyimide | 0.010" (0.25mm) | 79.0' (24.1m) | MW 16-C | 1.0 lbs (453.6 g) |
|
15SNS15SNS 15 AWG MAGNET WIRE, ENAMEL |
4,557 |
|
Datasheet | - | Bag | Active | 15 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 500.0' (152m) | MW 80-C | 5.0 lbs (2.3kg) |
|
19SNS19SNS MAGNET WIRE, ENAMELED COPP |
2,836 |
|
Datasheet | - | Bag | Active | 19 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 631.0' (192m) | MW 80-C | - |
|
14SNS14SNS MAGNET WIRE, ENAMELED COPP |
1,852 |
|
Datasheet | - | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 400.0' (122m) | MW 80-C | 5.0 lbs (2.3kg) |
|
24HNS5MAGNET WIRE, HEAVY BUILD ENAMELE |
3,620 |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | - | MW 80-C | 5.0 lbs (2.3kg) |
|
27HNS#27 HVY MAG WIRE, 155C NAT 5LB |
3,509 |
|
Datasheet | - | Box | Active | 27 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.016" (0.41mm) | 7855.0' (2394m) | MW 80-C | 5.0 lbs (2.3kg) |
